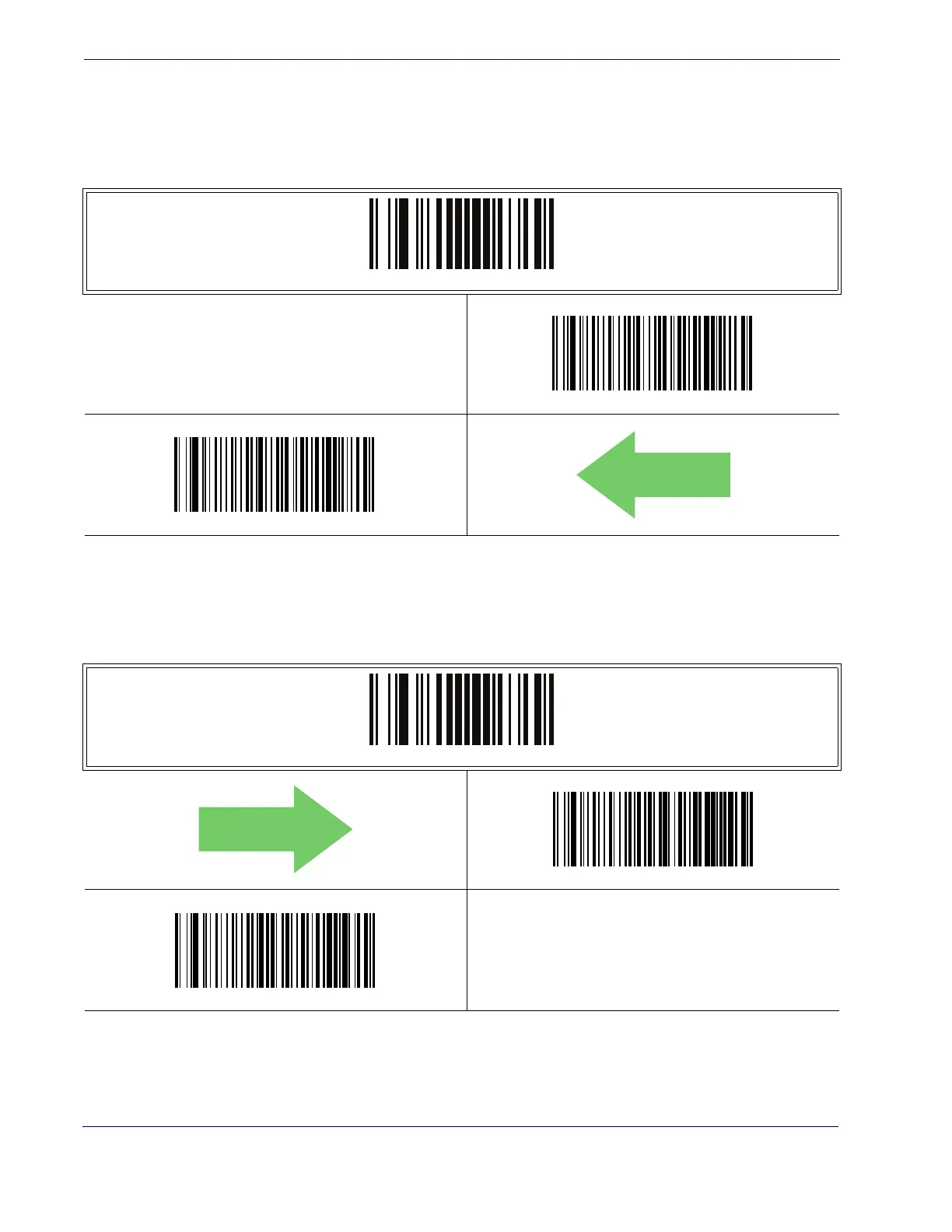

Code 39 — cont.

Code 39 Check Character Transmission

Enable this option to transmit the check character along with Code 39 barcode data.

Code 39 Start/Stop Character Transmission

Enable this option to enable/disable transmission of Code 39 start and stop characters.

ENTER/EXIT PROGRAMMING MODE

Code 39 Check Character Transmission = Don’t Send

Code 39 Check Character Transmission = Send

DEFAULT

ENTER/EXIT PROGRAMMING MODE

Code 39 Start/Stop Character Transmission = Don’t Transmit

Code 39 Start/Stop Character Transmission = Transmit

DEFAULT
