General Features

40 PowerScan

PD7100 Corded

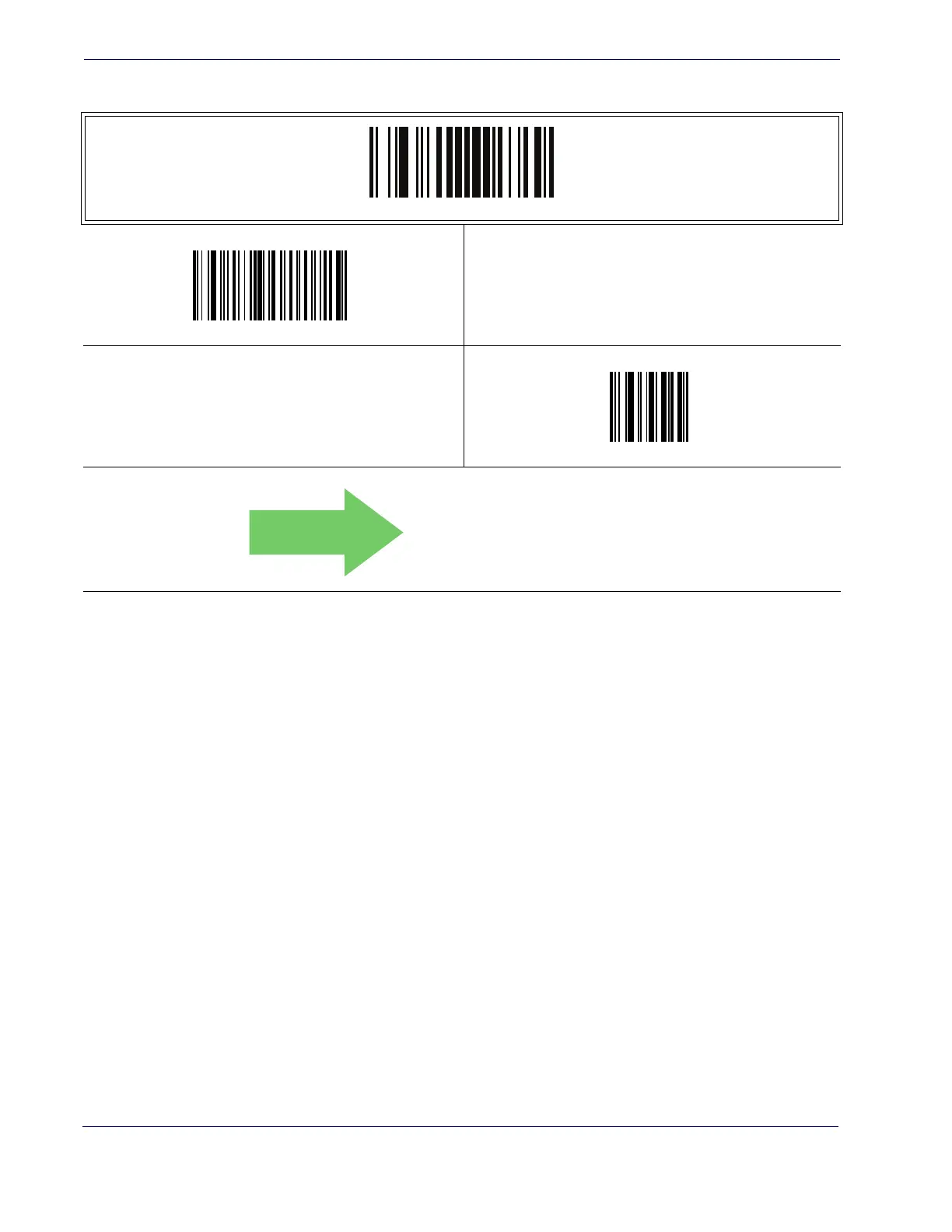

Flash Off Time — cont.

ENTER/EXIT PROGRAMMING MODE

Select Flash OFF Time Setting

Make a mistake? Scan the CANCEL barcode to abort and not

save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

06 = Flash is OFF for 600ms
