ACK NAK Options

Product Reference Guide 61

ACK NAK Timeout Value — cont.

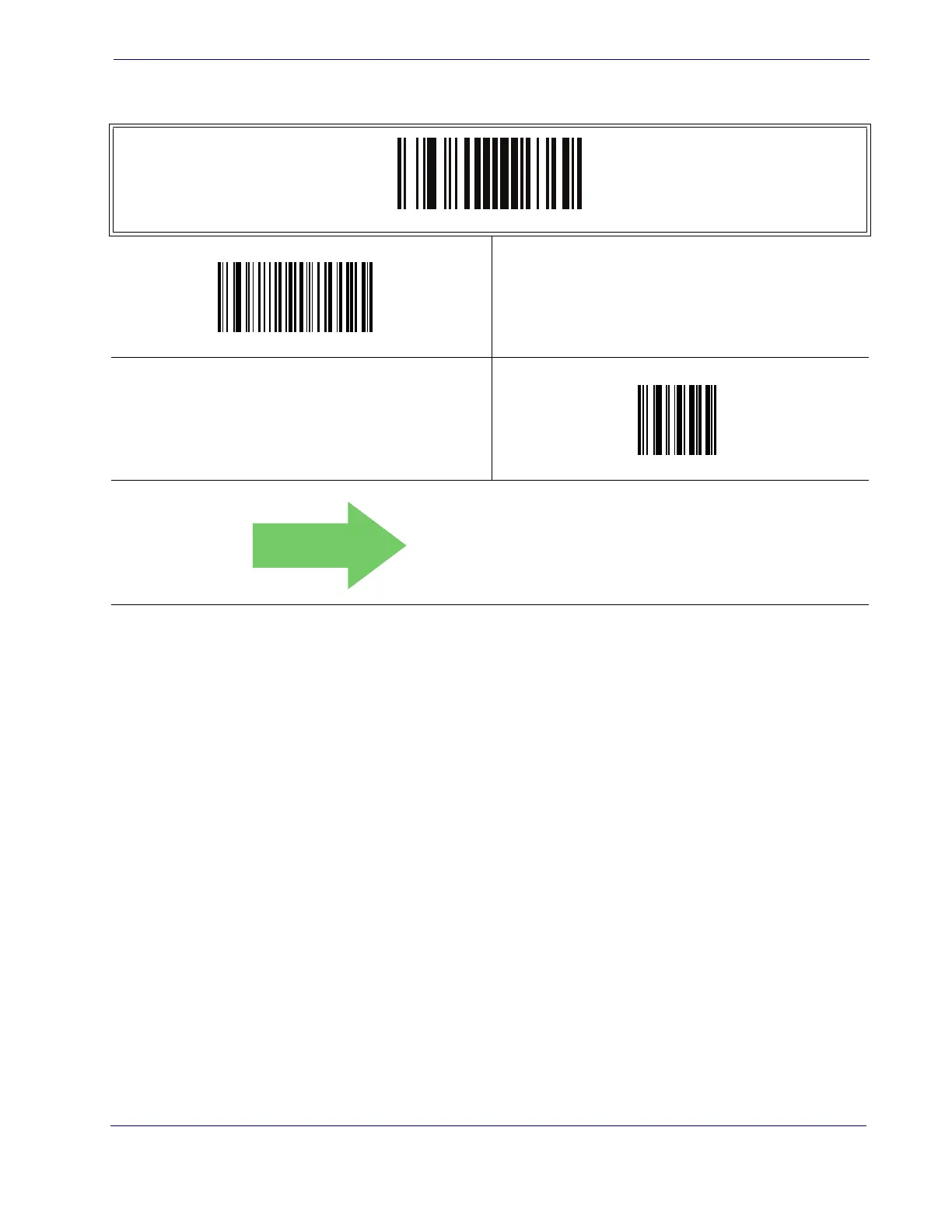

ENTER/EXIT PROGRAMMING MODE

Select ACK NAK Timeout Value Setting

Make a mistake? Scan the CANCEL barcode to abort and not

save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

01 ACK NAK Timeout value is 200ms

Default Chapter3
