INSTALLATION
5
2.3 SYSTEM CONNECTIONS
CAUTION
Connections should always be made with power OFF!
You can connect the QuickScan
®
Mobile cradle to the Host through the dedicated
connector, using the cable corresponding to the desired interface type.
1. Connect the appropriate interface cable to the cradle by simply plugging it into
the Host connector on the base of the cradle.

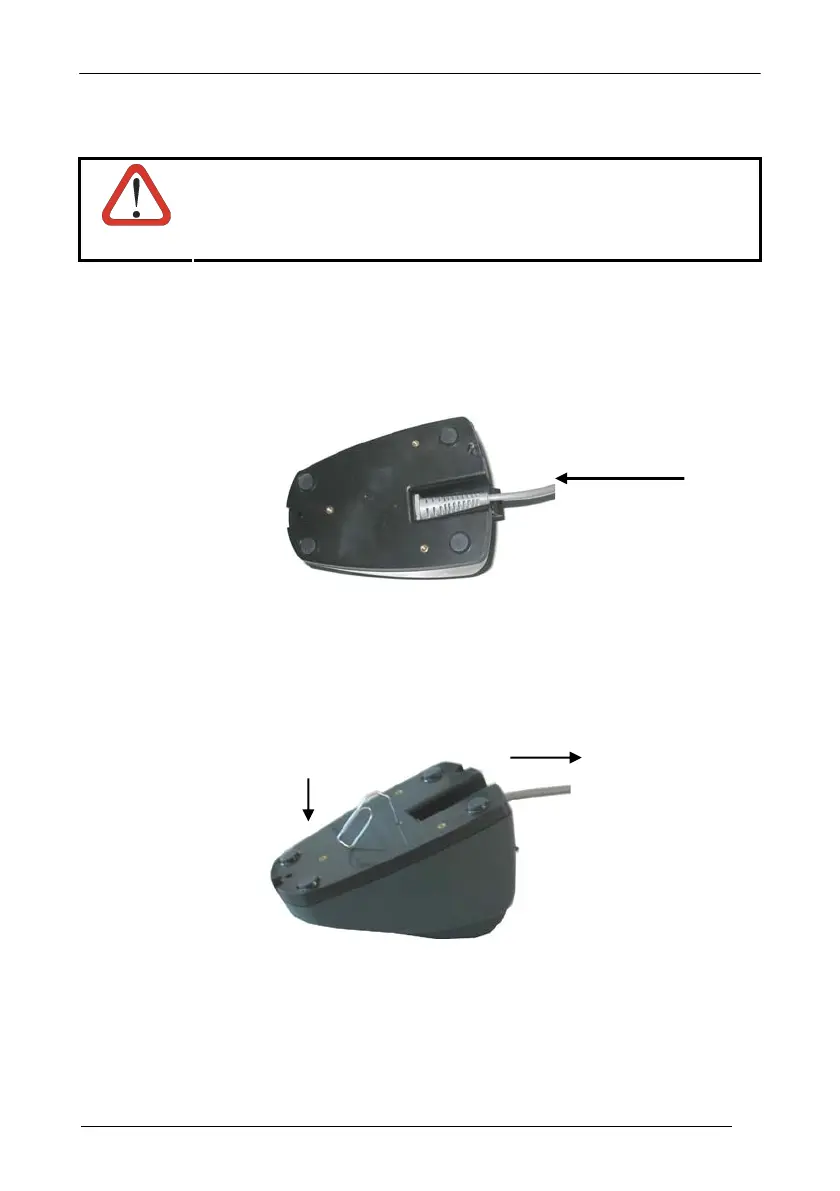

QuickScan® Mobile Cradle - Bottom View
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the connector on the base of the cradle. Push down on the clip
while unplugging the cable. Refer to the following figure:
Disconnecting the Cable
Interface Cable
