TECHNICAL FEATURES
149

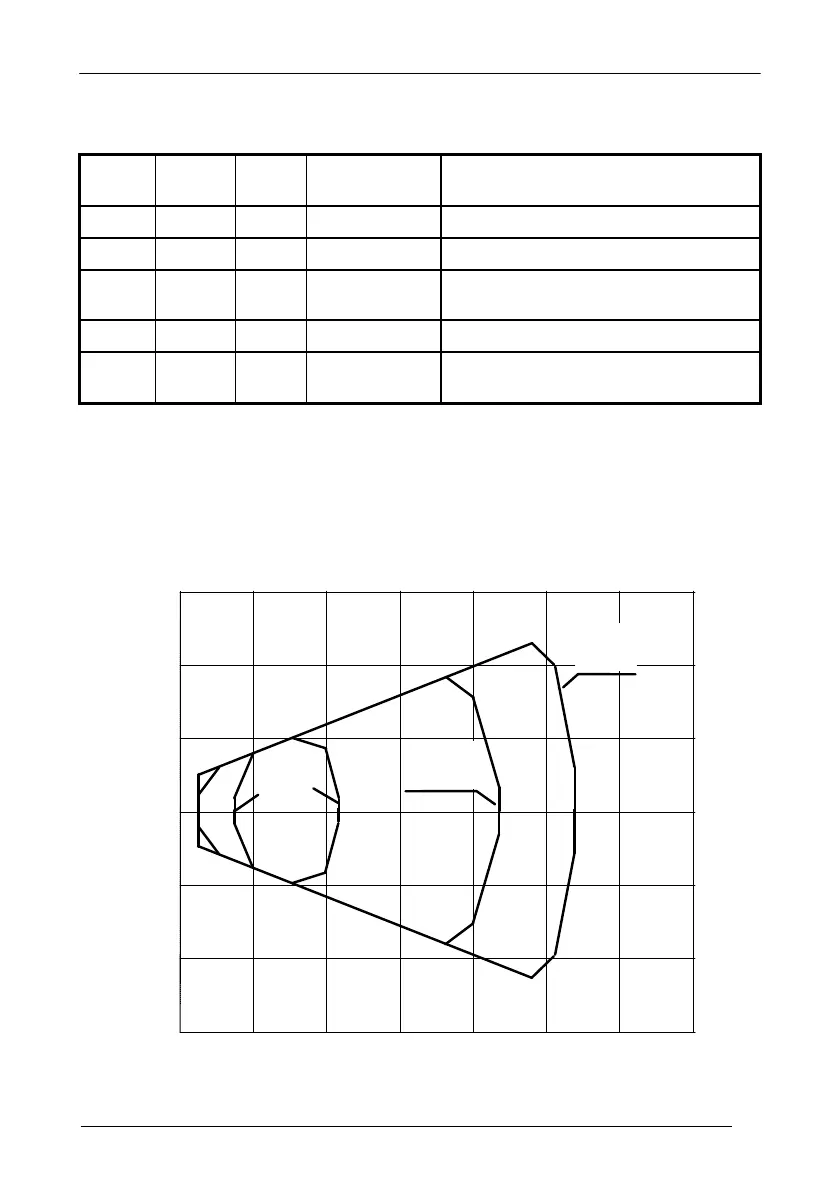

CRADLE CHARGE STATUS, POWER/COMMUNICATION
Red
LED
Green
LED
Yellow
LED
BEEPER Meaning
ON Charging
ON End of charge
Blinking Blinking Repetitive beep Charging out of temperature range, over-
current or over-voltage conditions
ON Power applied
Blinking Receiving data and commands from the
Host or the reader
5.3 READING DIAGRAMS
QUICKSCAN
®
MOBILE
Reading diagram at 25 °C and 300 lux ambient lighting
Reading Zones (10° skew angle)
0 5
10 15 20 25 30
-10
-5
0
5
10
(cm)
EAN13 M=1
0.33 mm
(13 mils)
CODE39
0.50 mm
(20 mils)
0.13 mm
(5 mils)
-15
-15
