Datalogic Skorpio X5 - Battery Management for Skorpio X5; Installing the Battery Pack

USER’S MANUAL 9
BATTERY

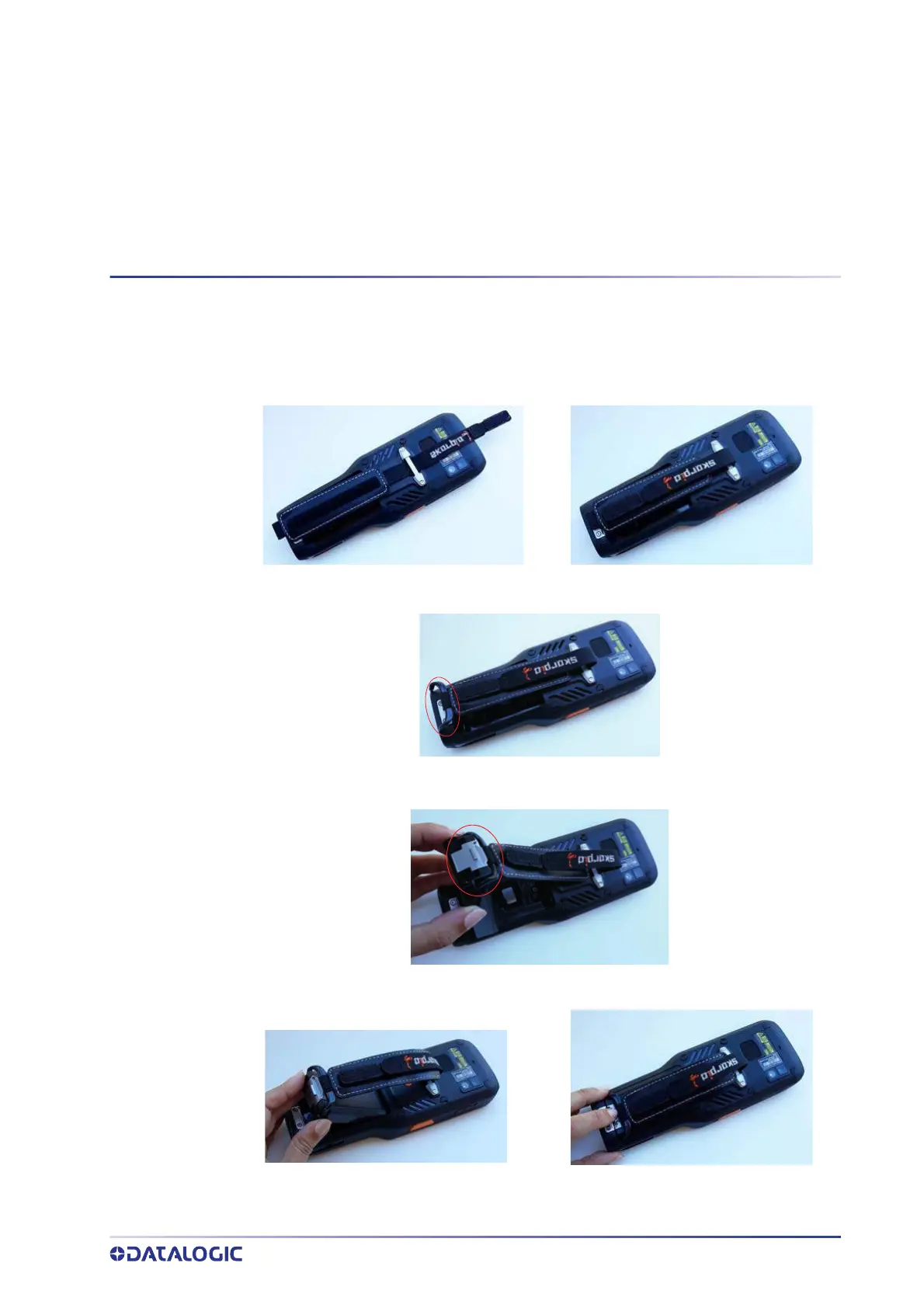

INSTALL THE BATTERY
1. Attach the handstrap to the eyelet as shown.
2. Insert the handstrap lower bridge into the hand strap.
3. Attach the handstrap lower bridge to the battery pack.
4. Insert the battery pack into the slot, top first, and press it into place until it clicks.
