38
Approved Media
To achieve optimum print quality and maximum printhead life, Datamax specifies the use of DATAMAX
®
brand
media. These supplies are specially formulated for use in our printers; use of non-Datamax supplies may affect the
print quality, performance, and life of the printer or its components.
For a current list of approved media for use in direct thermal applications, please contact a Media Representative at
(407) 523-5650.

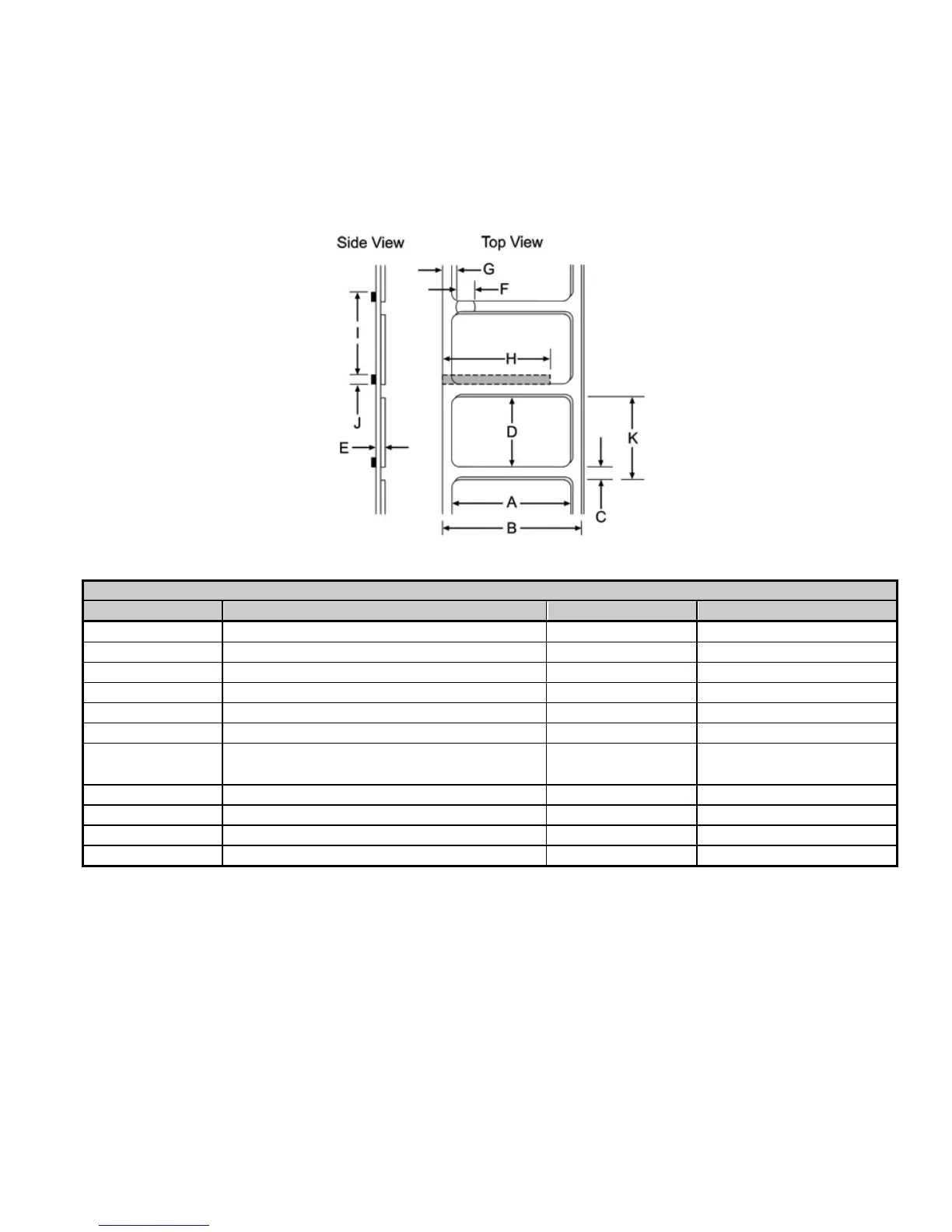

Media Dimensions
Designator Description Maximum Minimum
A label width 4.12" (104.65mm) 1.00" (25.4mm)
B liner width 4.12" (104.65mm) 1.00" (25.4mm)
C gap (or notch) between labels
[2]
.25" (6.35mm) .100" (2.54mm)
D label length
[2]
– .25" (6.35mm)
E media thickness .010" (.254mm) .0025" (0.0635mm)
F notch opening width .500" (12.7mm) .200" (5.08mm)
G distance from the media’s edge to the media
sensor aperture (left justified)
2.25" (57.15mm)
.200" (5.08mm)
H reflective (black) mark width
[1]
4.12" (104.65mm) .500" (12.7mm)
I distance between reflective marks
[2]
– .125" (3.18mm)
J reflective mark length
[2]
– .100" (2.54mm)
K label repeat distance
[2]
– .350" (8.89mm)
[1]The reflective (black) mark must be carbon based, placed on the backside of the stock, and the reflectance shall be
less than 10% at wavelengths of 950 and 640 nm.
[2] Maximum label length will vary depending on the printers memory configuration. The maximum allowable length of
the combined label and gap (or mark) measurement cannot exceed 99.99 inches.
