1.12 NETWORK CONFIGURATION
1.12.1 GENERAL
The T-96SR is designed to replace wire lines in SCADA, telemetry and control applications. The RS-232
serial port allows direct connection to Programmable Logic Controllers (PLCs) or Remote Terminal Units
(RTUs). Sections 1.12.2 through 1.12.5 describe network configurations.
1.12.2 BASIC NETWORK

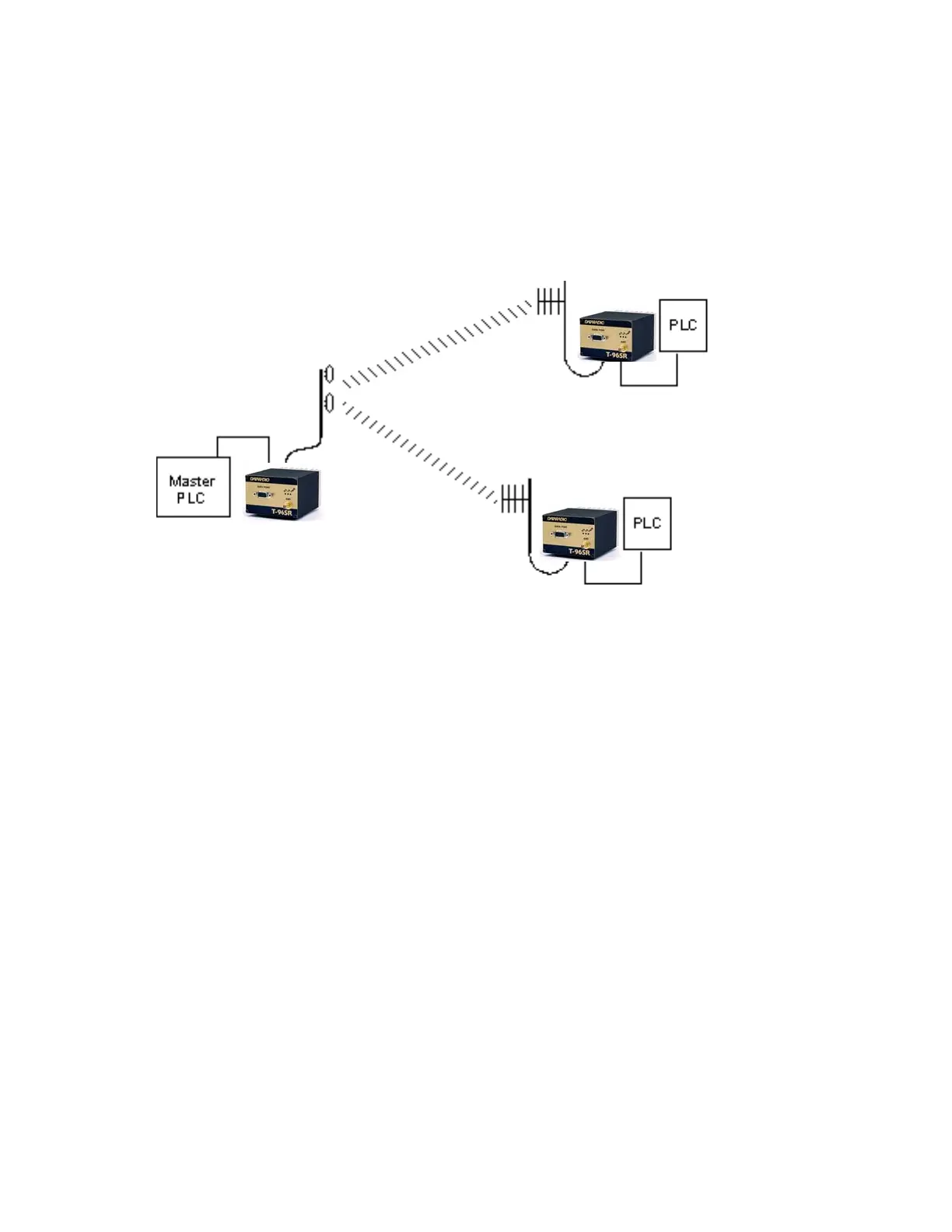

Figure 1-4 Basic Network
The Basic Network configuration has the following characteristics:
z Master station may be half duplex or simplex
z Online diagnostics are not available in real time
z Remote / local diagnostics and accumulated Online Diagnostics and control are available by disconnecting
the master PLC and substituting a PC running the T-96SR Field Programming Software utility.
T-96SR
T-96SR
T-96SR
