1.12.5 NETWORK USING A T-96SR FOR ONLINE DIAGNOSTICS

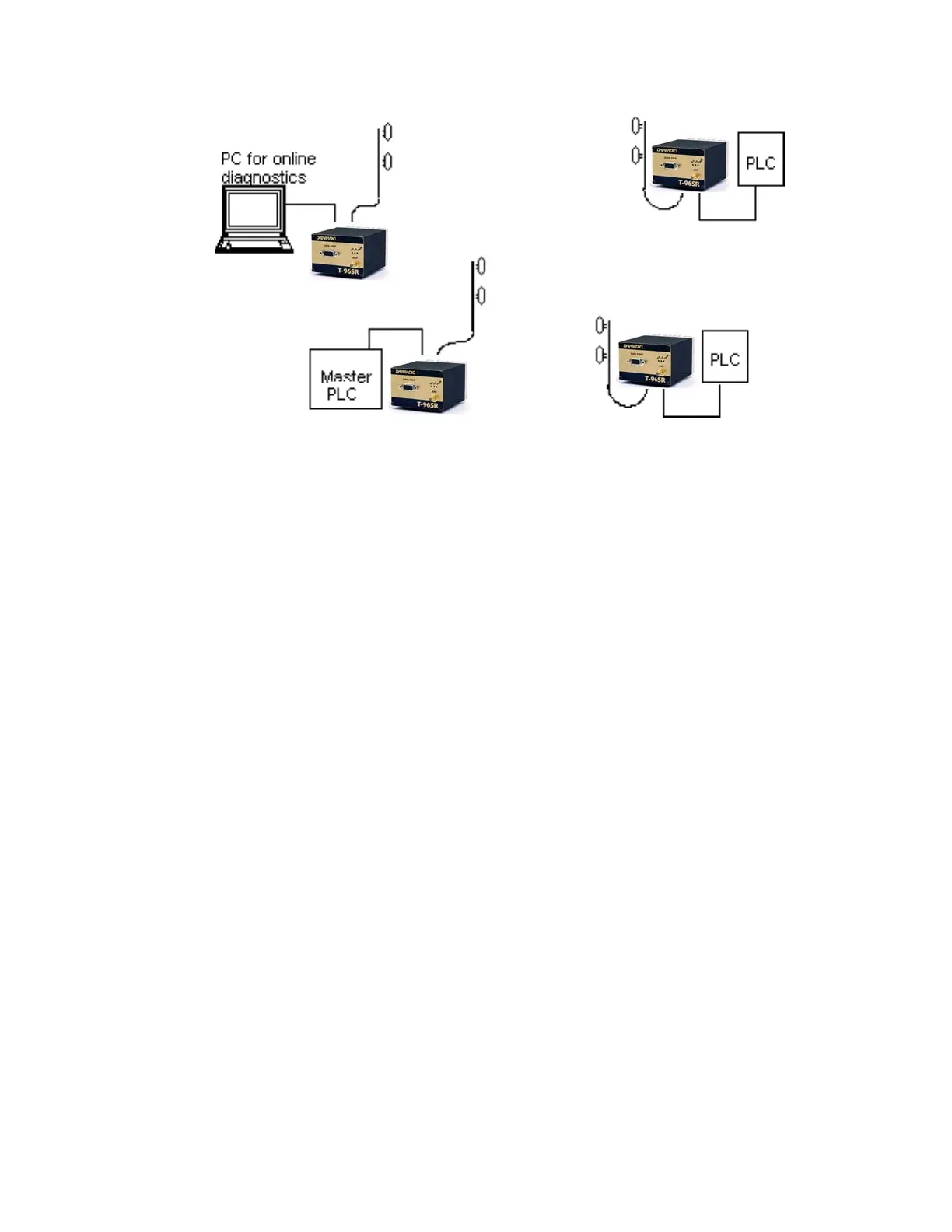

Figure 1-7 Network With a Monitoring T-96SR
The Network Using a T-96SR for Online Diagnostics configuration has the following characteristics:
z Master station may be half duplex or simplex
z Accumulated online diagnostics for a maximum of 15 stations are available at a monitoring site
(monitoring site must be in range of all remotes)
z Online Diagnostics are available in real time at the monitoring site
z Remote Offline Diagnostics, statistics, and control are available from the monitoring site by temporarily
disabling network activity (best if using a Master Station Antenna System)
Online Diagnostics are accumulated in the monitoring T-96SR for the last 15 stations heard. This
information may be viewed using the Online Diagnostics utility. For larger networks, the T-96SR can output
raw diagnostic data only which may be interpreted for network management by the Dataradio Field
Programming Software Online Diagnostics utility or by a user-supplied software program. Contact your
sales representatives for more information.
