Dataradio T-96SR - Setup Radio;Modem Frequencies; Setup Radio;Modem Frequencies Parameters

2-17
001-4006-101
Carrier Detect On Threshold
Carrier Detect On Threshold indicates RSSI level when a carrier is found. This level should be more than
the Carrier Detect Off Threshold.
Carrier Detect Off Threshold
Carrier Detect Off Threshold indicates the RSSI level when a carrier is lost. This level should be less than
the Carrier Detect On.
2.5.4.5 Setup Modem/Radio Frequencies
The Frequencies tab provides the interface to program frequency pairs and their corresponding power
settings.

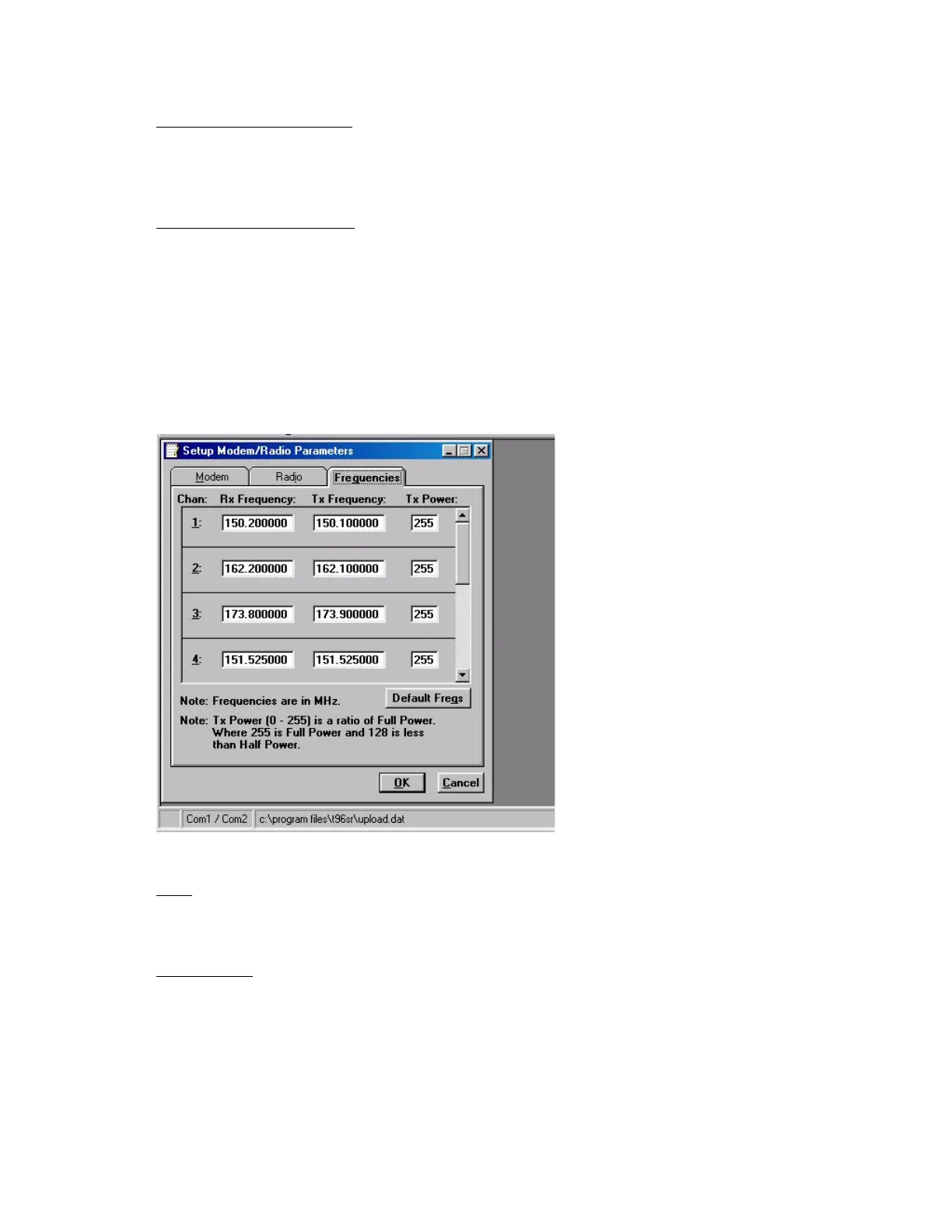

Figure 2-12 Setup Radio/Modem Frequencies Parameters
Chan
Chan displays the frequency channel pair.
Rx Frequency
Rx Frequency displays the receive frequency for the channel pair.
