Dataradio T-96SR - Network Using T-Base; Network Using T-Base Repeater

1-10
001-4006-101
1.12.3 NETWORK USING A T-BASE

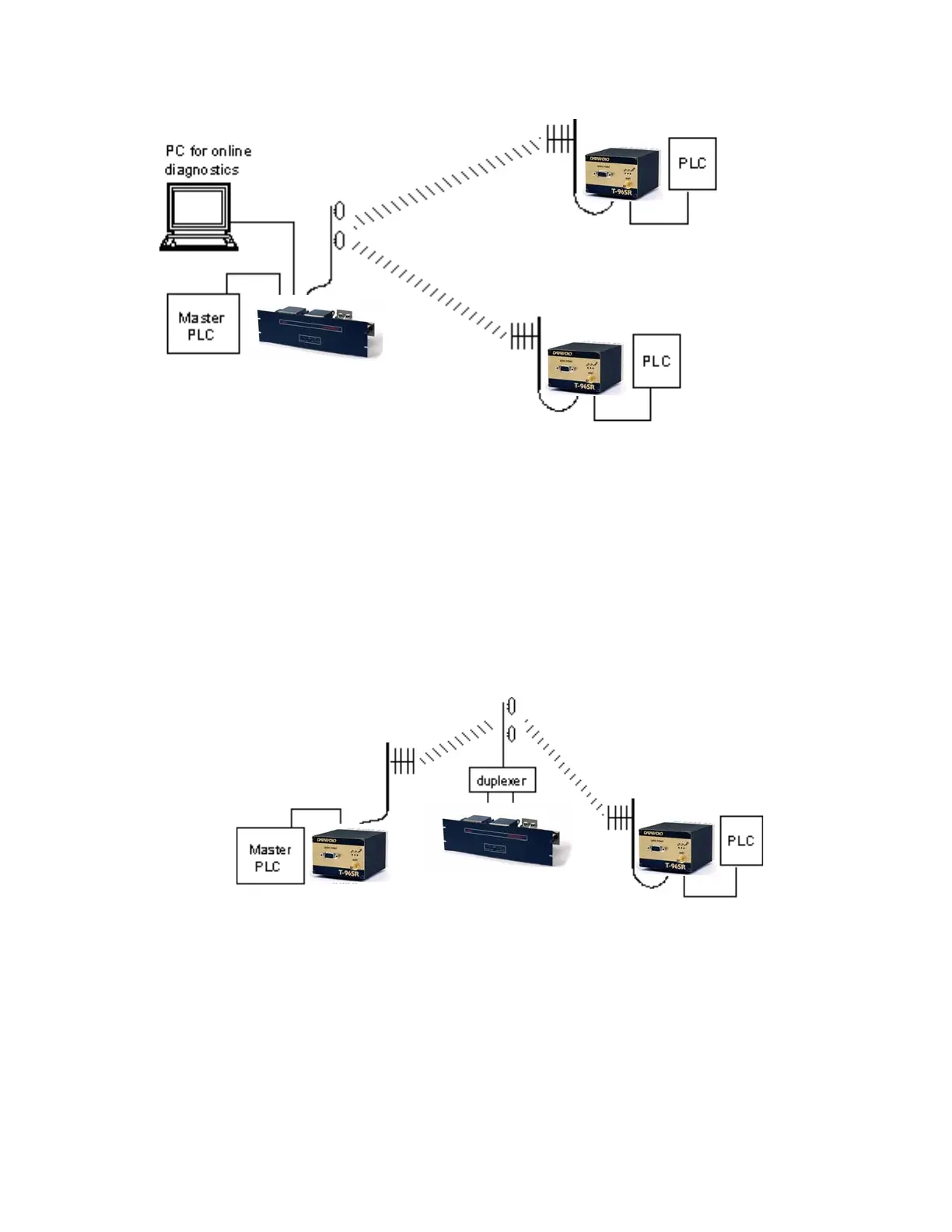

Figure 1-5 Network Using a T-Base
The Network Using a T-Base configuration has the following characteristics:
z Master station may be full duplex (duplexer required), half duplex, or simplex
z Online diagnostics are available using the Online Diagnostics utility without disrupting network activity
z Remote / local diagnostics and statistics / control are available using the T-96SR Offline Diagnostics utility
when connected to the Tx module (not Diag Port of T-Base)
z The T-Base provides output of Online Diagnostic information which can be processed by the T-96SR
Online Diagnostics utility or by a user-supplied network management program. Contact your sales
representative for further information.
1.12.4 NETWORK USING A T-BASE REPEATER
Figure 1-6 Network Using a T-Base Repeater
The Network Using a T-Base Repeater has the following characteristics:
z Master station and all remotes must be half duplex
z Networks described in Section 1.10.2, 1.10.3, or 1.10.5 may be used with a T-Base repeater
z The RTS/CTS delays for each T-96SR in the system must be extended as shown in Table 2-6, RTS/CTS
Delays
T-96SR
T-96SR
T-Base
T-96SR
T-96SR
T-Base/Repeater
