2.5.7 CLONE PROGRAMMABLE PARAMETERS

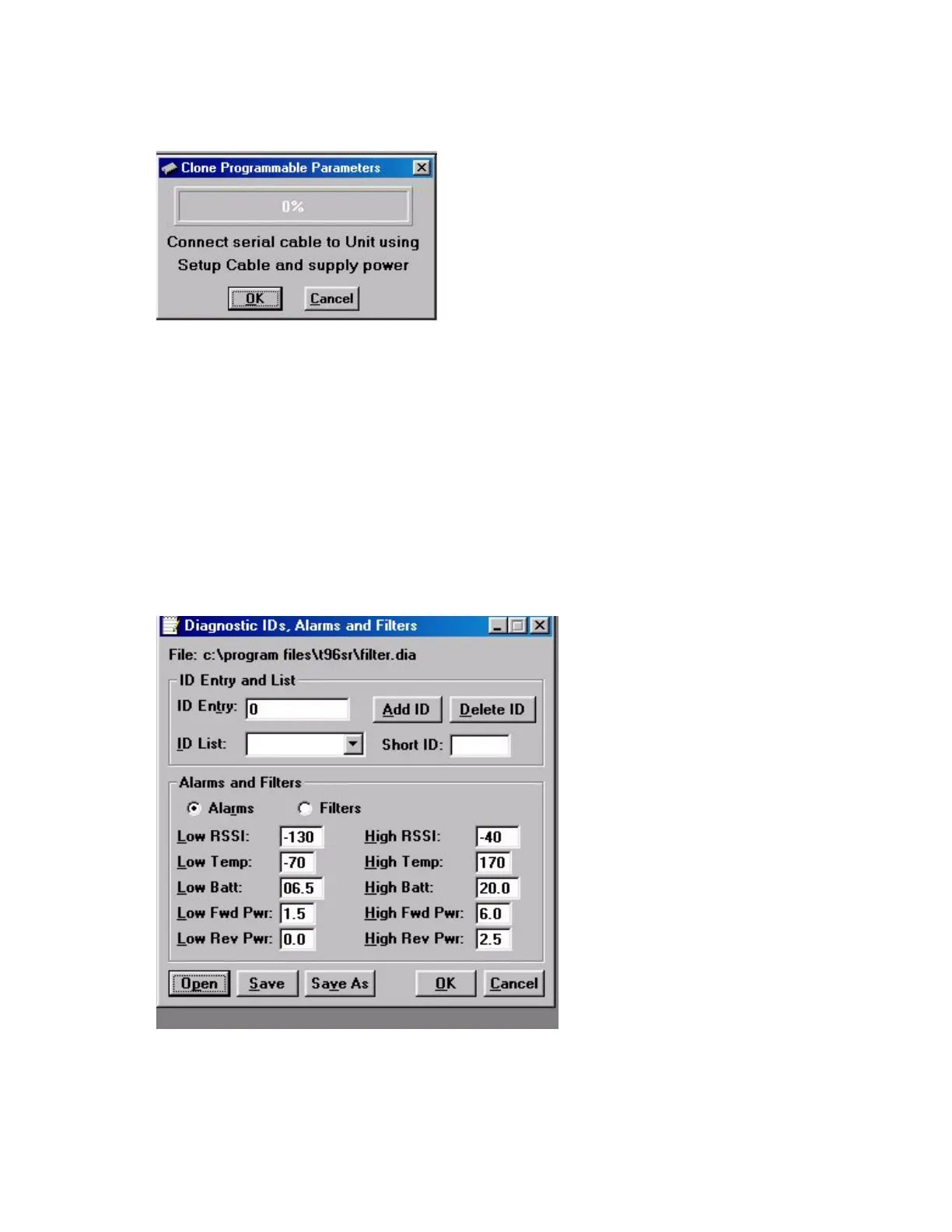

Figure 2-14 Clone Programmable Parameters Screen
The Clone Programmable Settings writes the currently loaded settings (except the ID Number, Comment,
and Number of Writes) to the EEPROM of the T-96SR. This option is used for programming the same Data
File (.dat) into multiple modems. Note: The “Clone Programmable Parameters” feature should be used
instead of the “Write Programmable Parameters” whenever multiple radios are being programmed with
identical parameters
2.5.8 DIAGNOSTIC IDS AND ALARMS
The Diagnostics IDs and Alarms screen allows the user to set up the ID List for use with the Offline Link
Test and Offline and Online Diagnostics as well as the Alarms for use with Online Diagnostics.
Figure 2-15 Diagnostic IDs and Alarms Screen
