HOW TO CHOOSE THE DEVICE
PRODUCT REFERENCE GUIDE 9
Height of the detection zone
The controlled height is the height protected by the safety light curtain.
In SH4-14/30 Protected Height is equal to ESPE total length: no dead zone is present.
In SH4-2/3/4, first beam center is positioned at 130 mm from light curtain bottom, pro-
tected height is defined as the distance between uppermost and lowermost beam
centreline.

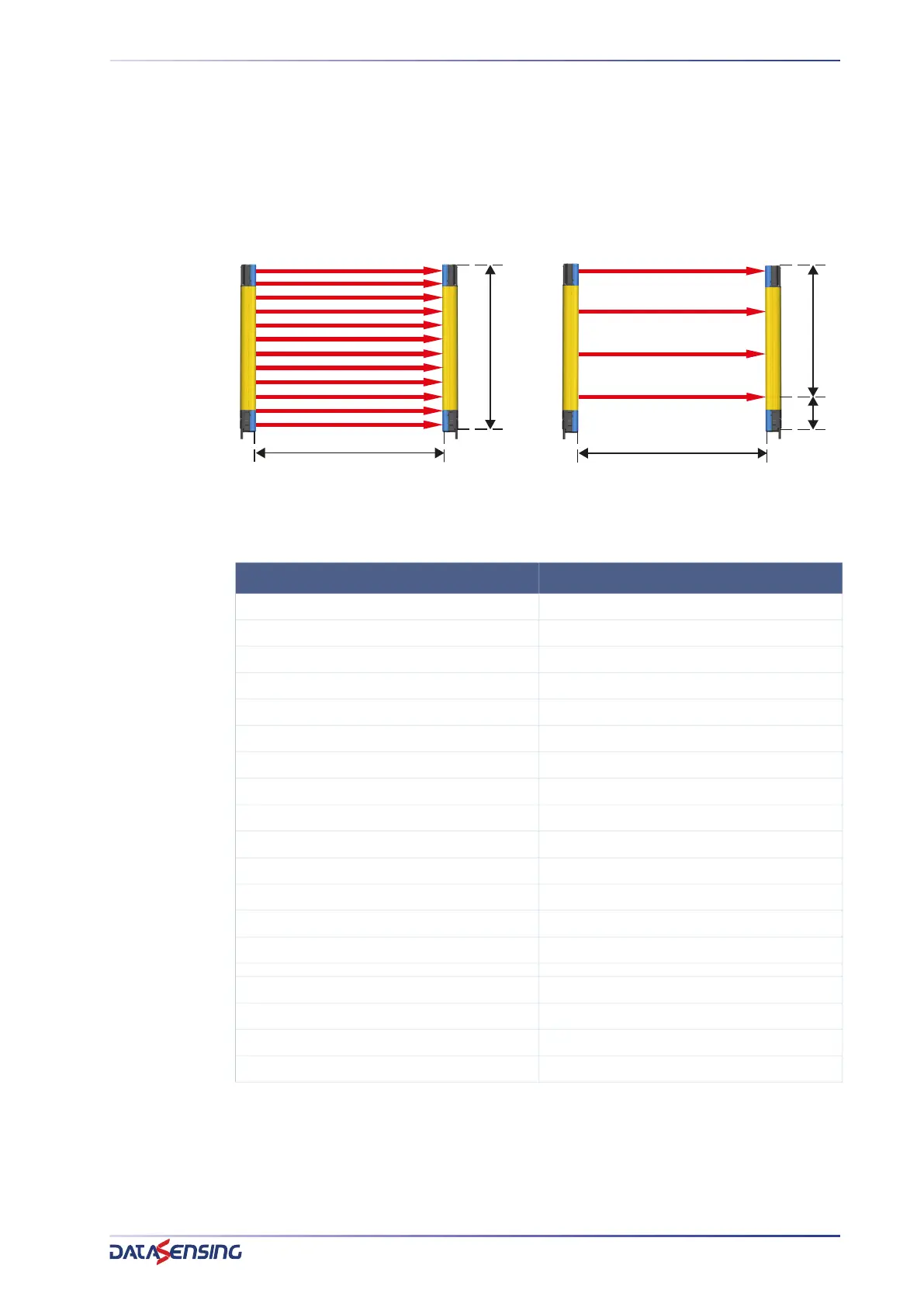

Figure 2: Detection zone
Referring to the figure above the protected height is reported in the table here below.
MODEL PROTECTED HEIGHT (mm)
SH4-14/30-0300-X-X
300
SH4-14/30-0450-X-X
450
SH4-14/30-0600-X-X
600
SH4-14/30-0750-X-X
750
SH4-14/30-0900-X-X
900
SH4-14/30-1050-X-X
1050
SH4-14/30-1200-X-X
1200
SH4-14/30-1350-X-X
1350
SH4-14/30-1500-X-X
1500
SH4-14/30-1650-X-X
1650
SH4-14/30-1800-X-X
1800
SH4-14/30-1950-X-X
1950
SH4-14/30-2100-X-X
2100
SH4-14/30-2250-X-X
2250
SH4-2-0500-X(X)-X-(X)
500
SH4-3-0800-X(X)-X-(X)
800
SH4-4-0900-X(X)-X-(X)
900
SH4-4-1200-X(X)-X-(X)
1200
PROTECTED
AREA
Protected height
Operating distance
PROTECTED
AREA
Protected height
130mm
Operating distance
SH4-14/30
SH4-2/3/4
