Datasensing SH4 BASE-STANDARD - User Interface Indication with Light Curtain in Alignment Mode; Sh4-XX-XXXX-X; LED Meanings

ALIGNMENT
PRODUCT REFERENCE GUIDE 33
User interface indication with light curtain in alignment mode
SH4-XX-XXXX-X
Level is visualized on LED user interface.
LED meanings

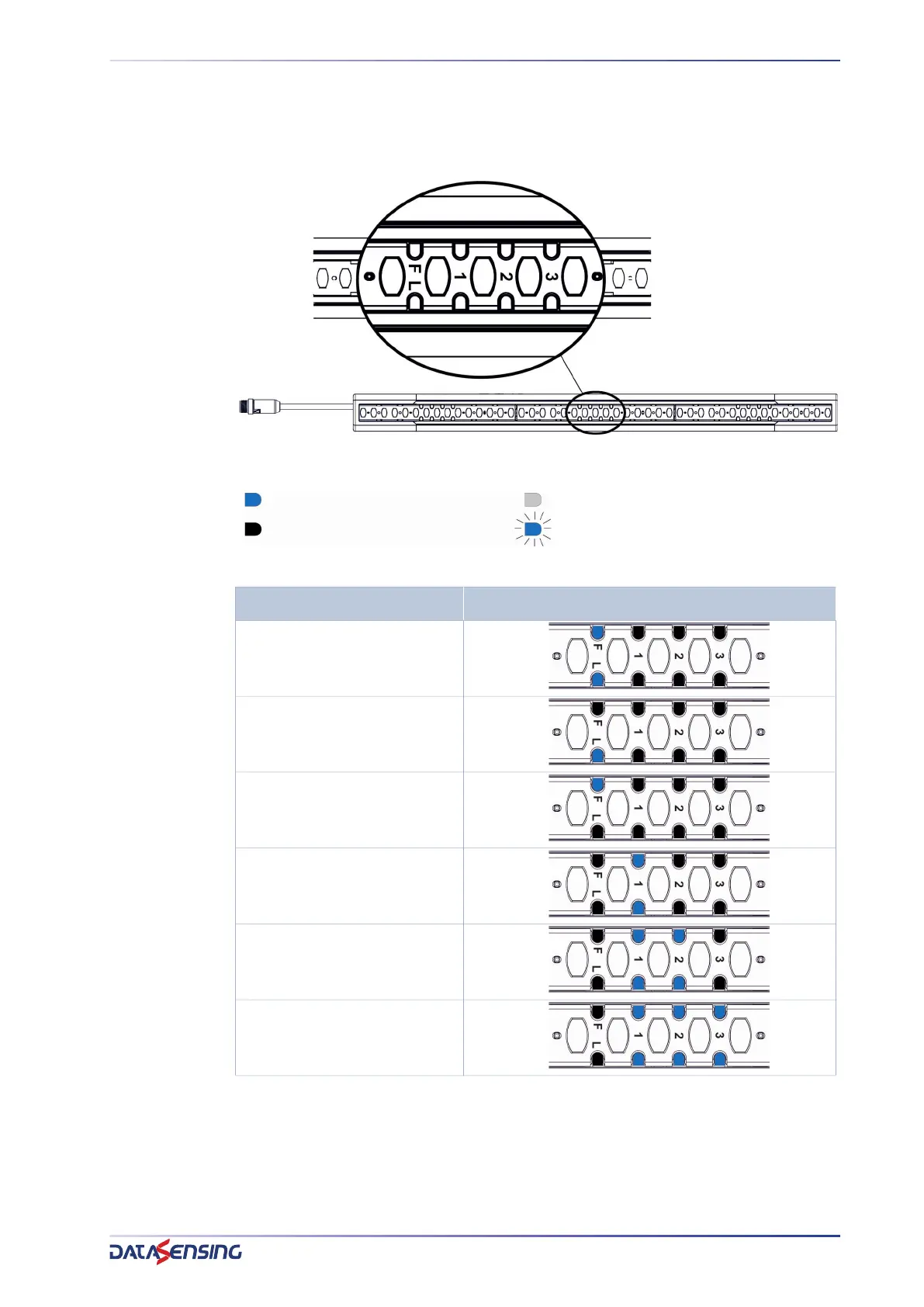

Table 1: User interface display in alignment mode
INDICATION LED CONFIGURATION
Not aligned
Not aligned
Only first sync aligned
Not aligned
Only last sync aligned
Aligned
Minimum Signal Level
Aligned
Medium Signal Level
Maximum Signal Level
= ON
= OFF
= INDIFFERENT
= BLINK
