SH4 BASE-STANDARD
Connection Box
The SH-M-CB Connection box can be used to connect SH4 Standard and Advanced to
SG-M muting accessories. For further information refer to the documentation of SG-M
muting accessories.
Muting sensors can be connected to SH-M-CB Connection box via M12 cables.
The signals are connected to safety light curtain dedicated muting connector via approx.
0.5m long pigtail cable with M12 female connector.
Aside from the green LEDs
1
(to indicated sensors output status), the SH-M-CB does not
contain any electronic elements and is therefore not subject to any safety classification.
Features:
• Supply and switching voltage +24Vdc
• M12 connection
• Simple connection to safety light curtains

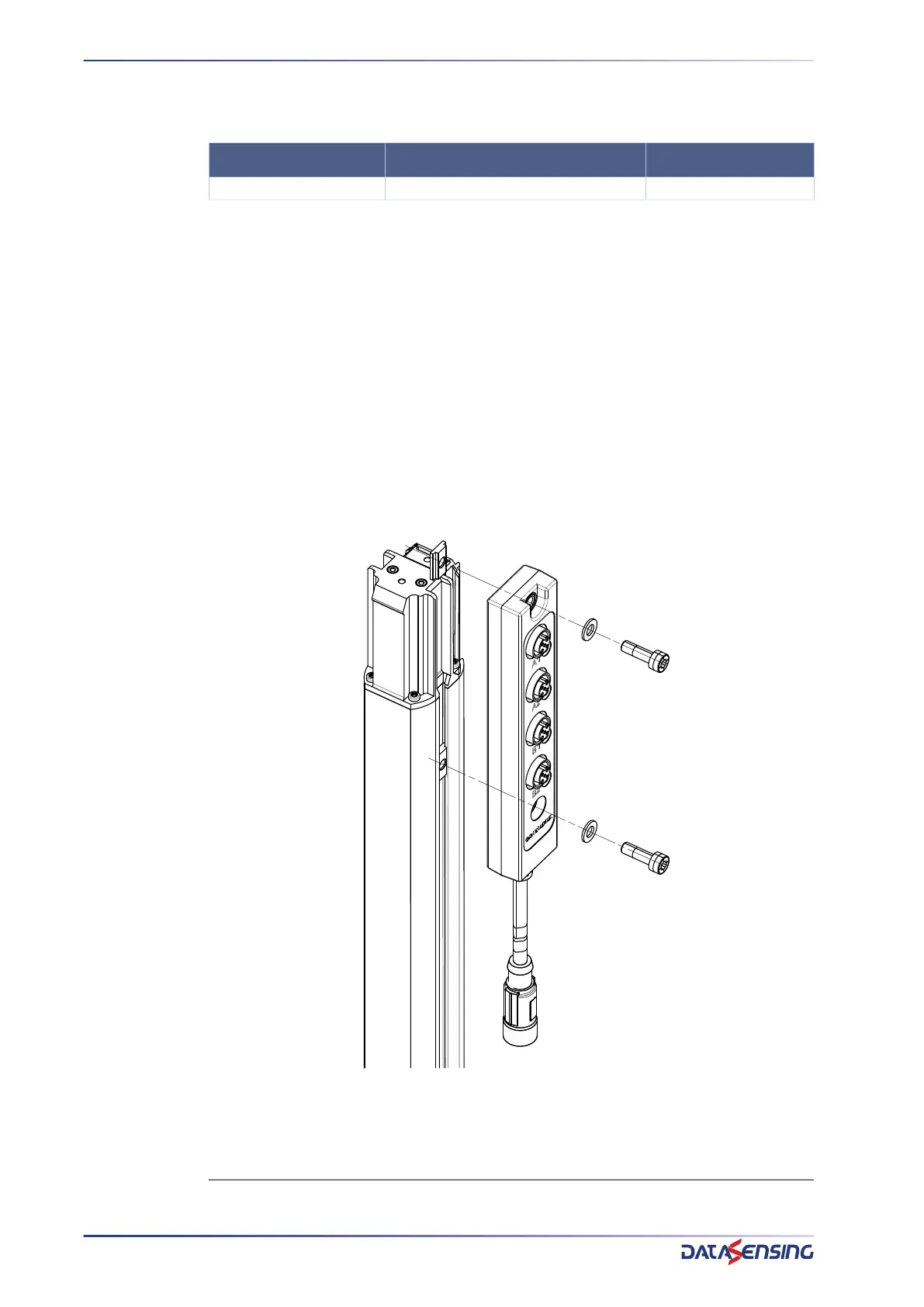

Figure 24 - Connection box
MODEL DESCRIPTION CODE
SH-M-CB CONNECTION BOX 95ASE0039
1. For correct operation of LED indicators, it is mandatory to connect identical sensors to the four
M12 sockets.
