26 SH4 BASE-STANDARD
CHAPTER 4
ELECTRICAL CONNECTIONS
PIN-OUT AND CONFIGURATION PIN CONNECTION
All electrical connections to the emitting and receiving units are made through M12
connector(s).

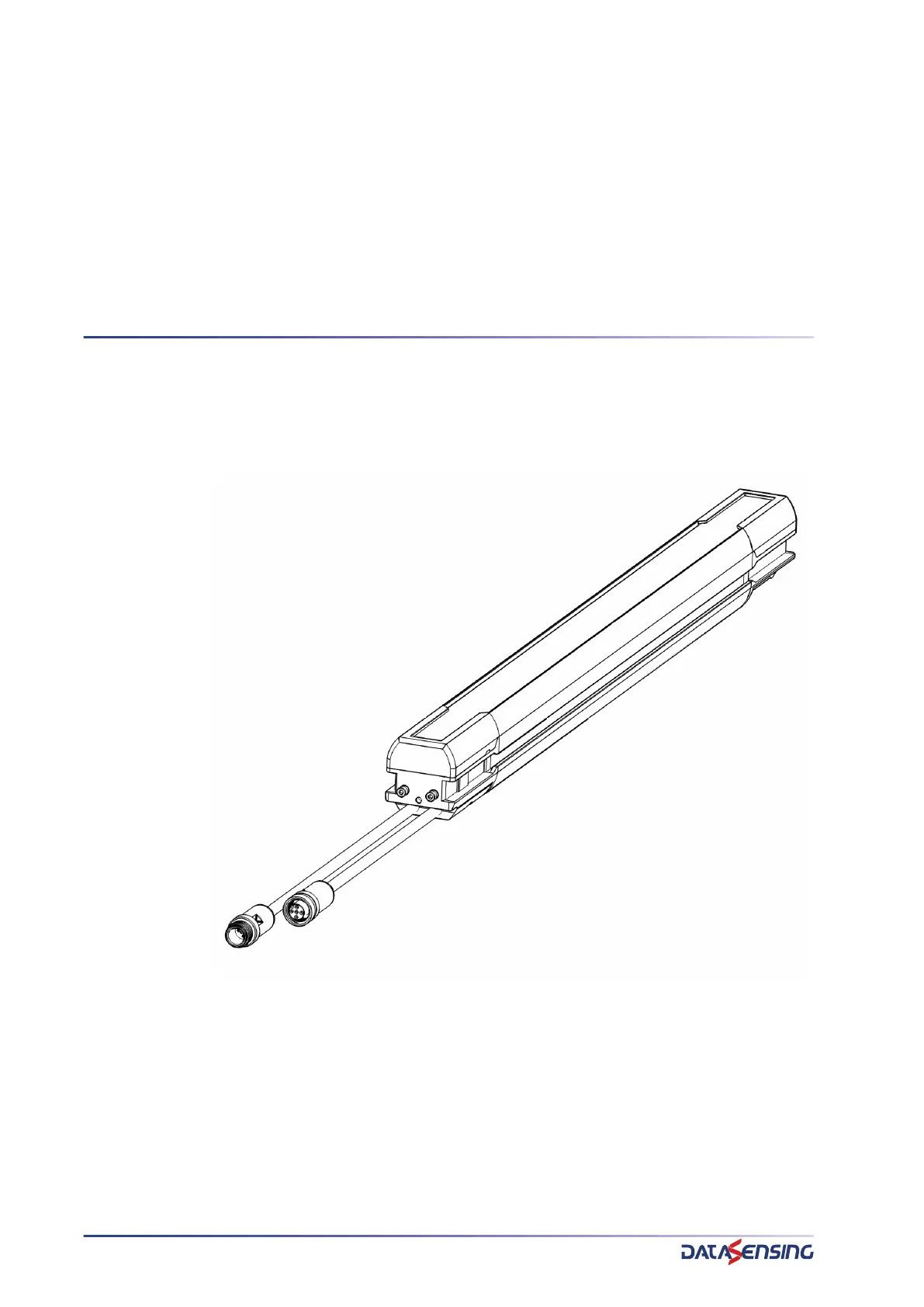

Figure 1: Connections
