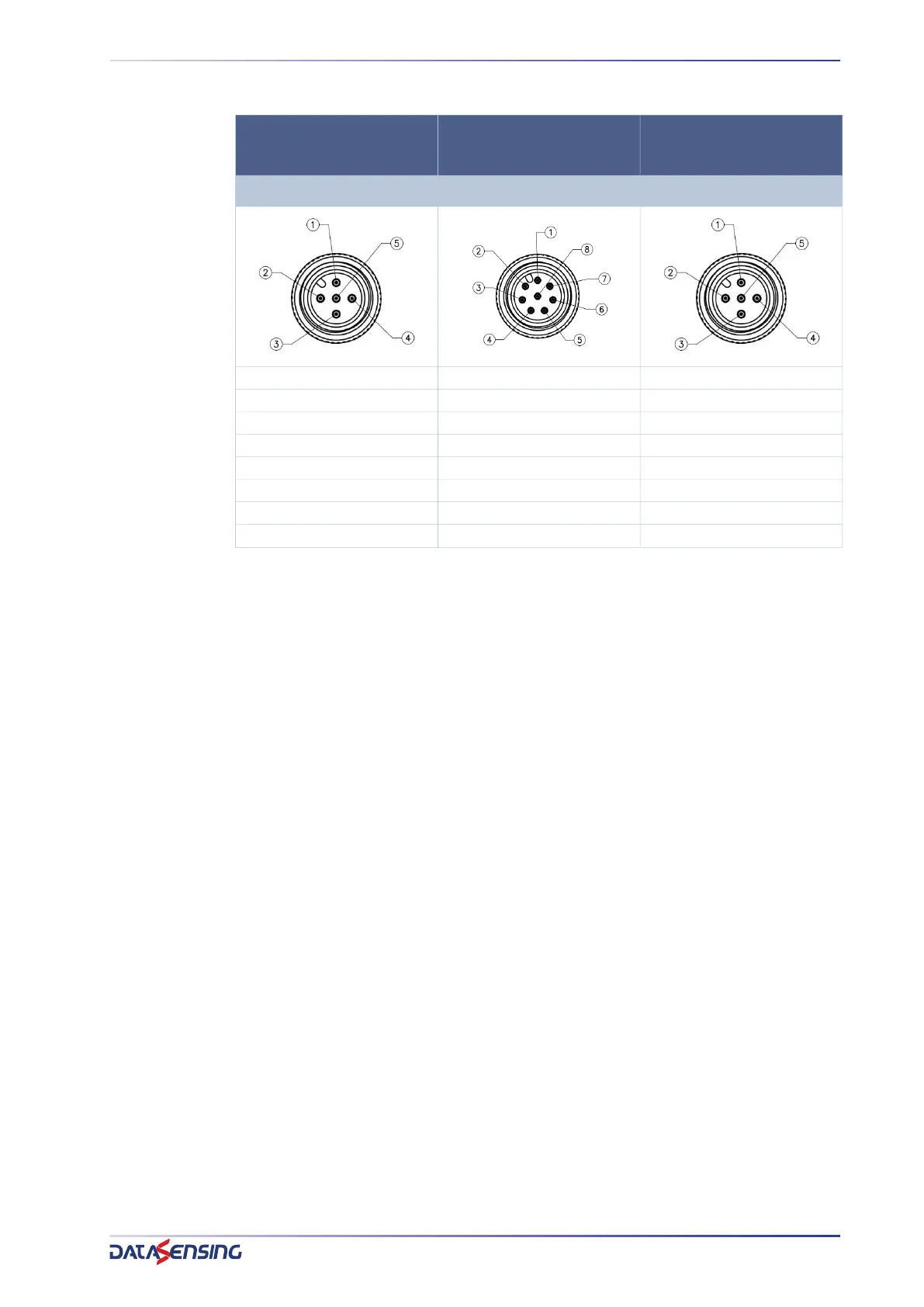

PIN-OUT AND CONFIGURATION PIN CONNECTION
PRODUCT REFERENCE GUIDE
27
RECEIVER
BASE
RECEIVER
STANDARD
EMITTER
RX M12 MALE 5 PIN RX M12 MALE 8 PIN TX M12 MALE 5 PIN
1 - 24V (brown) 1- RESET/RESTART (white) 1 - 24V (brown)
2 - OSSD1 (white) 2- 24V (brown) 2 - TEST (white)
3 - 0V (blue) 3- EDM SEL (green) 3 - 0V (blue)
4 - OSSD2 (black) 4- EDM (yellow) 4 - NOT CONNECTED (black)
5 - COM (grey) 5- OSSD1 (grey) 5 - COM (grey)
6- OSSD2 (pink)
7- 0V (blue)
8- MAN_AUTO (red)
