OVERVIEW
PRODUCT REFERENCE GUIDE 83
A cascade system is composed by:
• One MASTER unit with dual connector (can be chosen among SH4-XX-XXXX-SM-8-5 or
SH4-XX-XXXX-A-12-5)
• One LAST SLAVE unit (can be chosen among SH4-XX-XXXX-B-5 or SH4-XX-XXXX-C-5-5)
• Optionally one MID SLAVE UNIT (must be a SH4-XX-XXXX-C-5-5 unit)

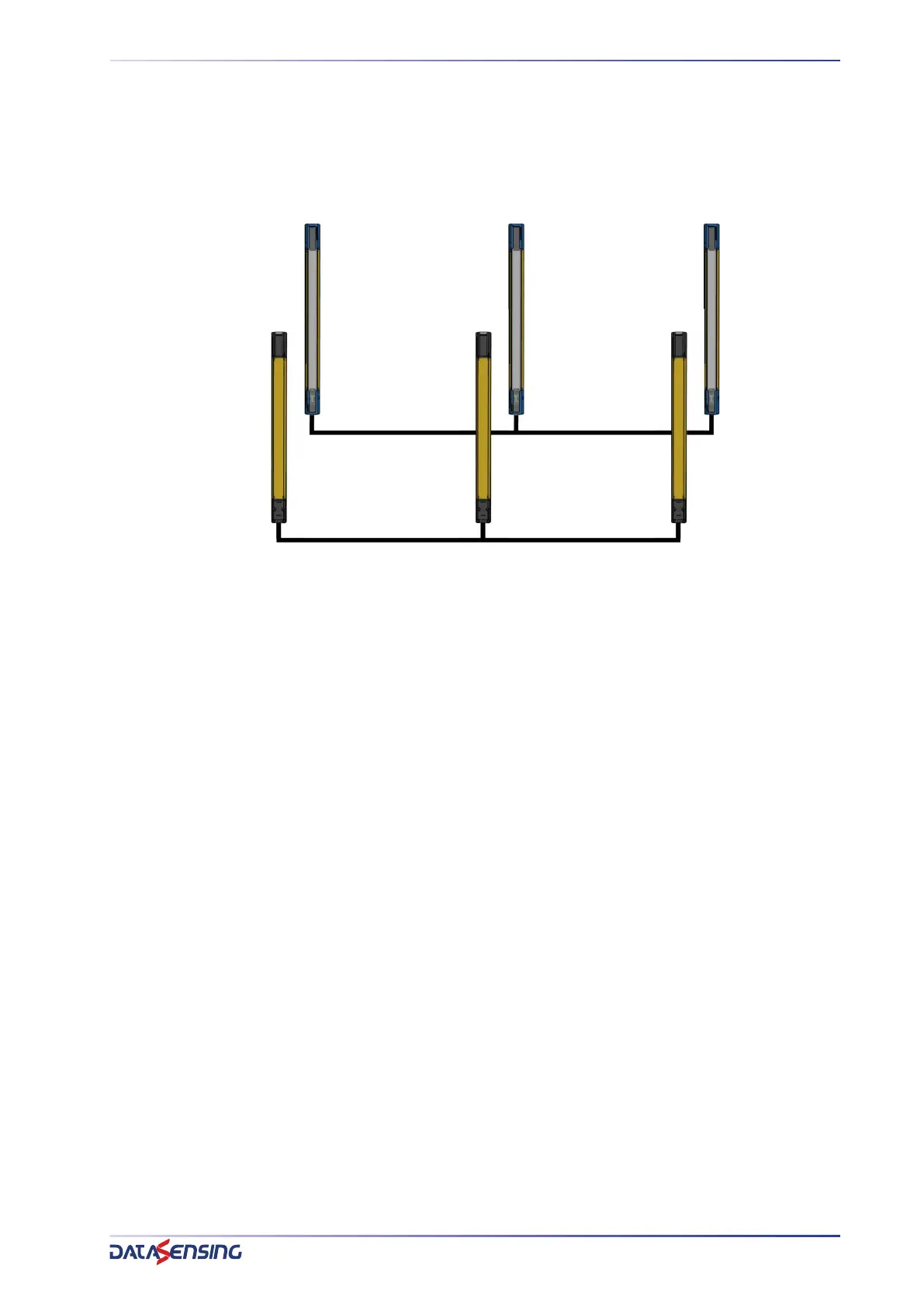

Figure 27: Cascade system
RX
RX
RX
TX
TX
TX
MASTER
MID SLAVE
LAST SLAVE
SH4-XX-XXXX-SM-8-5
SH4-XX-XXXX-A-12-5
SH4-XX-XXXX-C-5-5
SH4-XX-XXXX-B-5
SH4-XX-XXXX-C-5-5
