Davis Instruments Vantage VUE Console Manual

Displaying Weather Variables
20
Humidity
Inside and outside humidity are
displayed in the top right portion
on the console screen, below the
temperature variables. The inside
humidity is located below the
word INSIDE and the outside
humidity is located below the
word OUTSIDE.
1. Press HUM to select outside
humidity. Humidity is displayed in percent relative humidity.
2. Continue pressing WxCEN to display the information
available for outside humidity in the Weather Center and to
scroll through the outside humidity-related Weather Center screens, which
include:
• Maximum Outside Humidity — Displays the highest humidity measure-
ment for the day and the time it was recorded.
• Minimum Outside Humidity — Displays the lowest humidity measure-
ment for the day and the time it was recorded.
3. Press HUM a second time to select inside humidity.
4. Press WxCEN to display the information available for inside humidity in the
Weather Center. Continue pressing WxCEN to scroll through the inside
humidity-related Weather Center screens, which include:
• Maximum Inside Humidity — Displays the highest inside humidity
measurement for the day and the time it was recorded.
• Minimum Inside Humidity — Displays the lowest inside humidity mea-
surement for the day and the time it was recorded.
Barometric Pressure
Barometric pressure and pressure
trend display below inside and
outside humidity.
in/hr
C
RAIN RATE
CHILL
WIND
N
S
WE
NE
SE
NW
SW
MPH
am
C
C
INSIDE OUTSIDE
mb

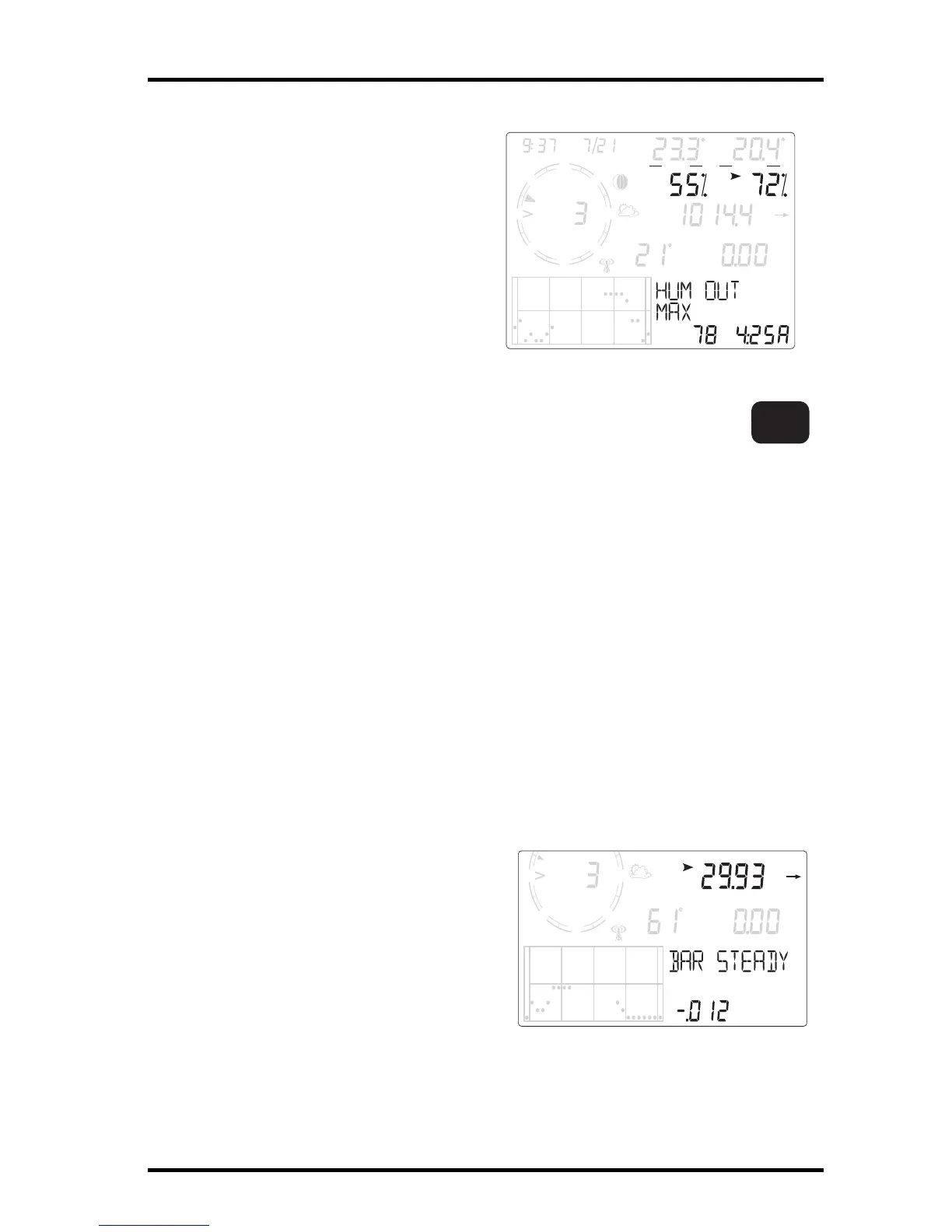

Inside and outside humidity with information
displayed in the Weather Center
HUM
S
WE
NE
SE
NW
SW
MPH
WIND
CHILL
in
FF
F
RAIN RATE
in/hr
F
Barometric Pressure with information
displayed in the Weather Center

Davis Instruments Vantage VUE Specifications

General

Console Display Type	LCD
Wind Direction Range	0 to 360°
Wind Direction Accuracy	±3°
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Solar Radiation Range	0 to 1800 W/m²
Solar Radiation Accuracy	±5%
UV Index Range	0 to 16
Wireless Transmission Range	1000 feet (300 meters)
Update Interval	2.5 seconds
Temperature Range	-40°F to +150°F (-40°C to +65°C)
Humidity Range	0 to 100% RH
Rain Collector Resolution	0.01 inches (0.2 mm)
Wind Direction Resolution	1°
Power Source (Integrated Sensor Suite)	Solar panel with battery backup
Power Source (Console)	AC adapter or 3 C batteries
Wind Speed Accuracy	±2 mph (±3 kph) or ±5%, whichever is greater
Rainfall Accuracy	±4%
Operating Temperature	-40°F to +140°F (-40°C to +60°C)
Wind Speed Range	0 to 150 mph (0 to 241 km/h, 0 to 67 m/s)
