PRELIMINARY
CABINET PREPARATION
The Drop-In Cooktop was designed for easy in-
stallation. However, for the best appearance, to
conceal the raw cutout edges and to ensure a
snug and secure fit, the cutouts must be pre-
cise. Use the cutout dimension information in
the figures below for your installation. When
preparing for installation, it is critical that the
cabinet cutout matches the cutout dimensions
provided for the cooktop for a good fit. See il-
lustrations below for specifications.
• For proper performance, the Drop-In Cooktop
must be level. To achieve a flush fit of the
cooktop, it will be necessary to have a flat
cabinet (front to back and left to right).
• Be sure to check local building codes for the
proper method of installation. Local codes
may vary. Installation, Electrical connectors,
and Grounding must comply with all appli-
cable codes.

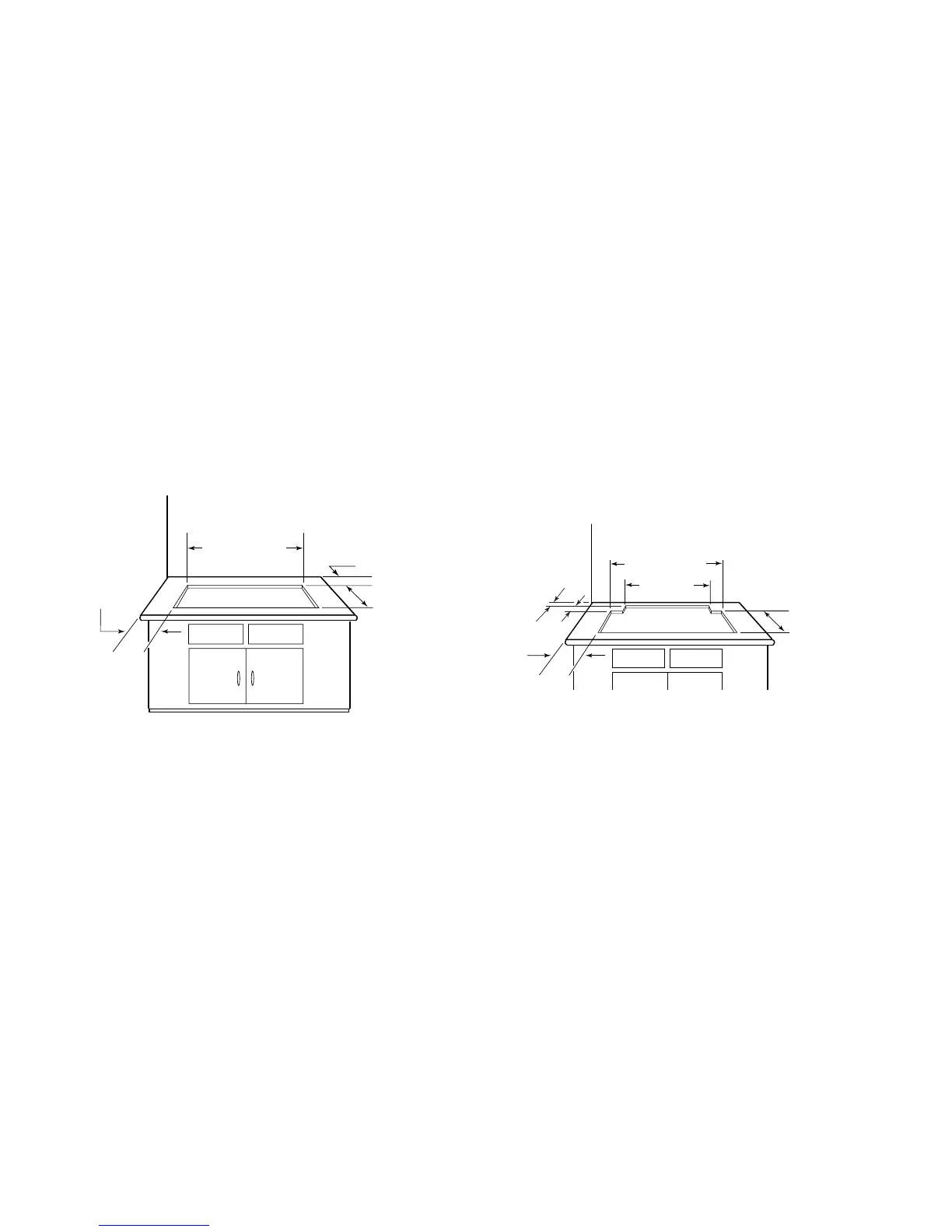

5" Min.
clearance
to combustible
surface
DROP-IN COOKTOP
CUTOUT DIMENSIONS
(W/DCS DD-36SS)
34-3/4" Width
19-3/4" Depth
33-1/2"
1/2" Min.
2-1/2"
2-1/4" Min.
clearance
to combustible
surface
5" Min.
clearance
to combustible
surface
DROP-IN COOKTOP
CUTOUT DIMENSIONS
34-3/4" Width
19-3/4" Depth
