PRELIMINARY
USE AND CARE
COOKTOP USE
CAUTION:
For warranty coverage, DCS requires that
burner adjustments be made by a qualified
technician at the time of installation. Extreme
care should be used when adjustments are
made after installation. Improper or lack of ad-
justments will void your warranty.
CONTROL KNOBS
The control knobs and knob bezels are readily
associated with the burners they control and
are located on the right hand side of the
Cooktop. The sealed top burners have an infi-
nite number of heat settings and there are no
fixed positions on the control knobs between
HI and SIM (with the exception of LOW.) To light
the burner push control knob in and rotate
counterclockwise. An audible clicking sound
will be heard and the burner should light im-
mediately. To use, turn the knob to the desired
setting.
BURNERS
Your new Drop-In Cooktop is equipped with
burners typical of those used in restaurants.
These restaurant style burners are comprised
of high strength die cast aluminum burner
bases and simmer port rings, precision forged
brass port rings, and cast iron burner caps.
Your cooktop is equipped with 4 burners rated
at 11,000 Btu/hr, and one HI-output burner
rated at 17,500 Btu/hr. Your new Drop-In
Cooktop has exceptionally low simmer capabili-
ties (see the chart on page 22). The burner sys-
tem is designed for maximum cleanability and
control. All the cooktop burners have electronic
spark re-ignition to eliminate continuously
burning pilots, if the flame is blown out, it will
relight.
COOKING UTENSILS
For best results we recommend using Profes-
sional Cookware. These can be found at your
finer department stores, specialty cooking
shops, or restaurant supply stores. If using regu-
lar cookware be very careful if the pans have
plastic handles, as these large professional size
burners can flame up on the outside of the pan
and melt or bubble the handles.

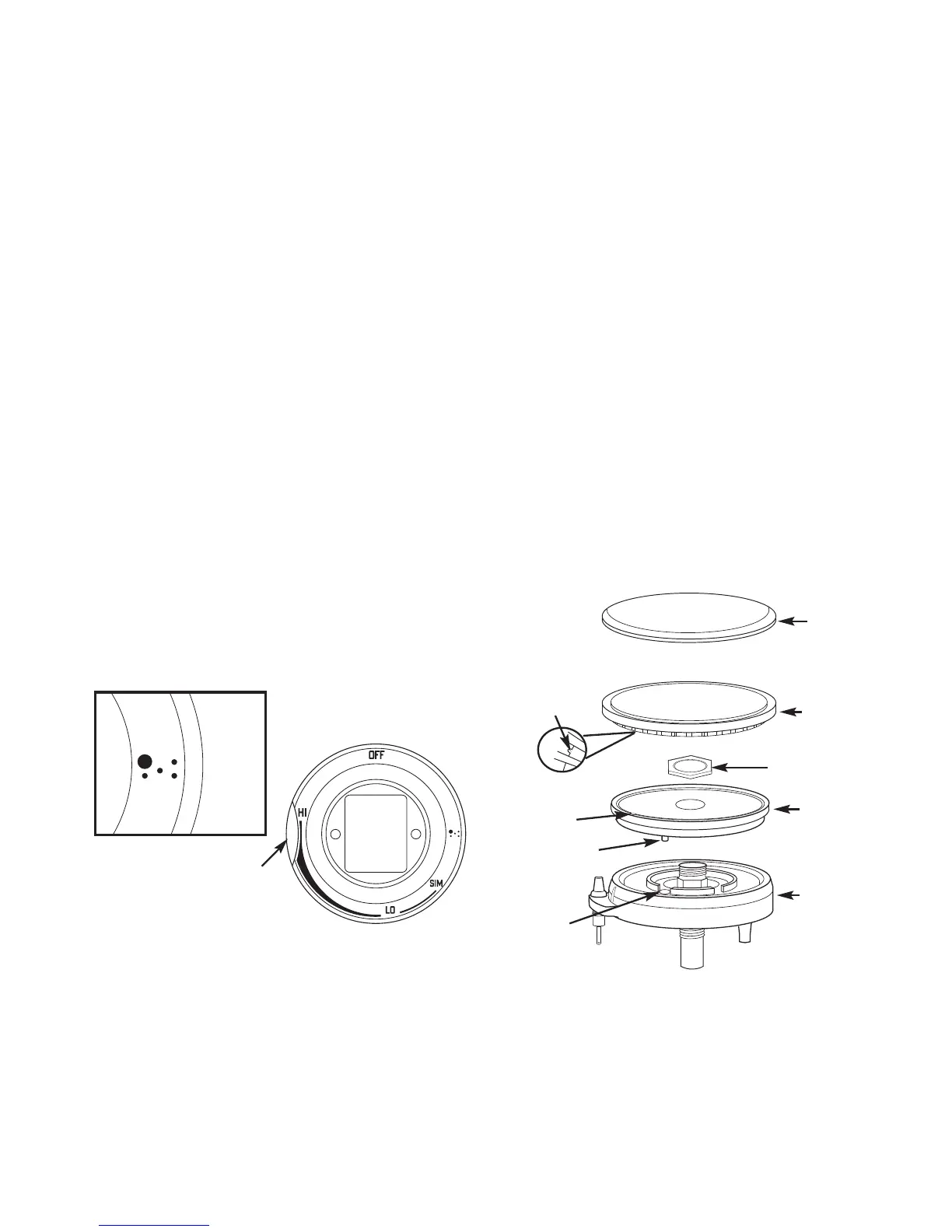

“ON”
Indicator Light
Cap
Brass
Port Ring
Simmer
Ring
Base
Hex Nut
Brass Port
Ring
Locating Pin
Locating Pin
Locating
Notch
Locating
Pin Hole
Inside
LEFT REAR
BURNER
BURNER LOCATION
