PRELIMINARY

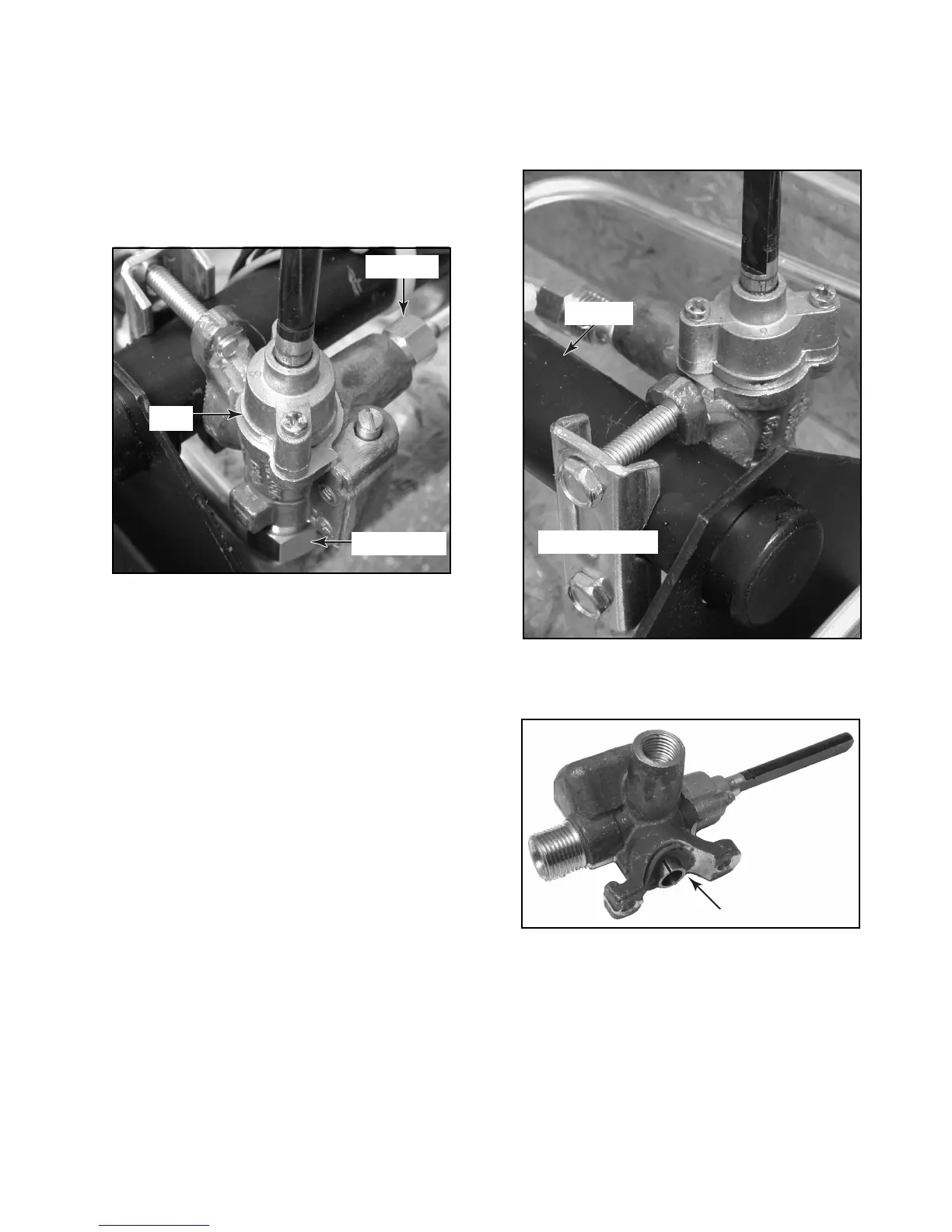

5. To remove a valve:
a) Remove the ignition switch from the
valve (see step 4).
b) Remove the 3/8″ fitting from the valve
inlet line and the 1/2″ fitting from the
outlet line.
c) Remove the two 5/16″ hex-head screws
from the valve clamp and pull the valve
off the manifold.
Outlet Line
Inlet Line
Valve
Clamp & Screws
NOTE: Inspect the rubber seal on the valve for
wear. Replace the seal, if necessary.
Rubber Seal
Valve
Manifold
