PRELIMINARY
BURNER OPERATION

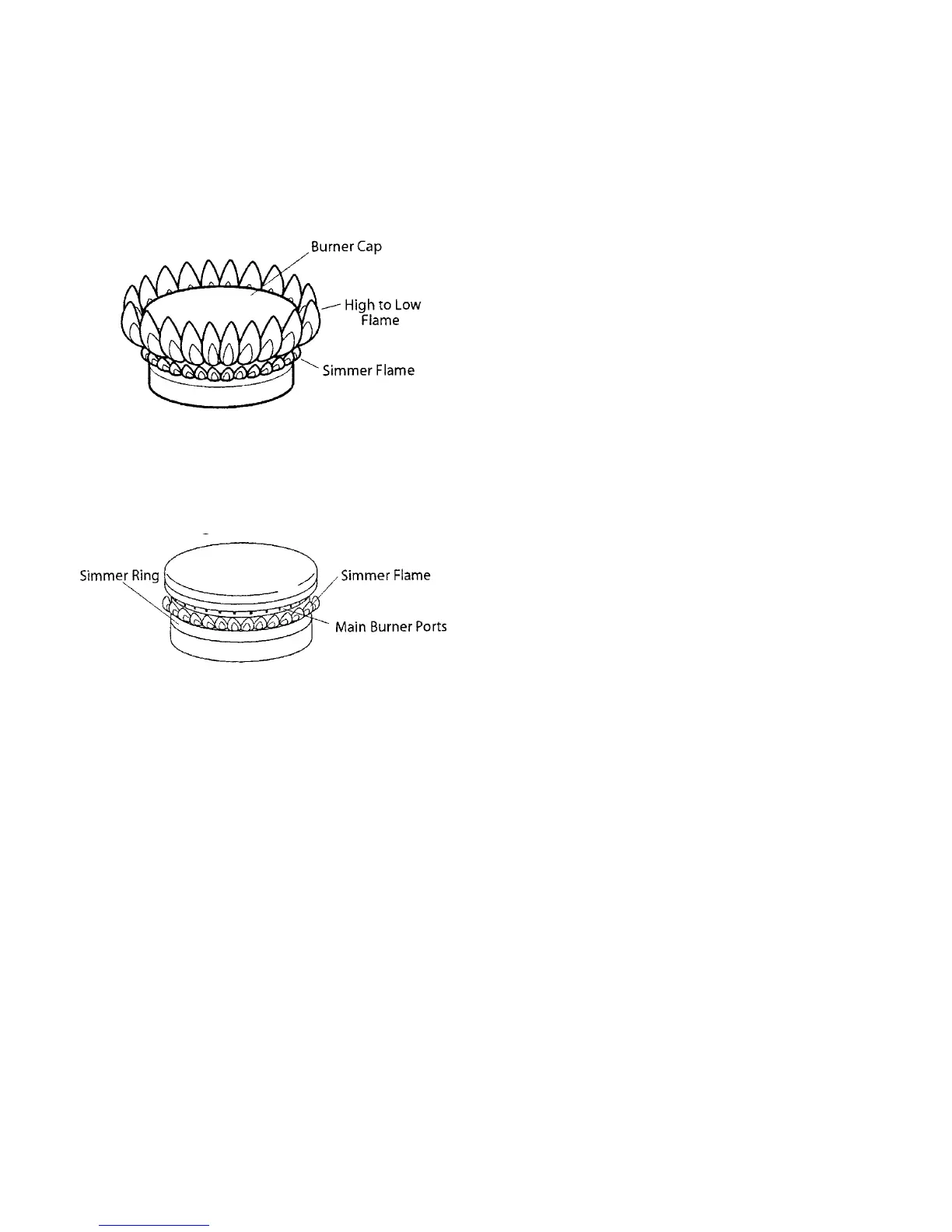

Two flames are used on all five burners. These
dual flame burners have an upper ring of main
burner ports, which produce the main flame for
high heat cooking from the “HI” knob setting
to the “LO” knob setting.
The bottom simmer flame is used for simmer
heat cooking operations such as melting
chocolate, holding food at serving temperature
and simmering.
Both flames are lit when the knob is between
“HI” and “LO”. Only the simmer flame is lit when
the knob is in the “SIMMER” position.
Burner Adjustment
• There is no air shutter adjustment, etc. on this
burner.
• The only adjustment available is to clean the
burners and clean or replace orifices.
Burner Cleaning
To access and completely clean the burner ring
sub-assembly, follow Step 1 through 4 of “To
Remove the Cooktop”.
Cooktop Cleaning
If cooktop has discolored from high heat, ad-
vise customer to use the furnished cleaner iden-
tified in Owner’s Manual.
