BACKGUARD INSTALLATION
BACKGUARD INSTALLATION
The backguard is installed after the gas connection is
made.The backguard must be installed when there is less
than a 12" clearance between combustibles and the back
of the range (above the cooking surface) (See Fig. 1,
page 3).
BACKGUARD KITS:

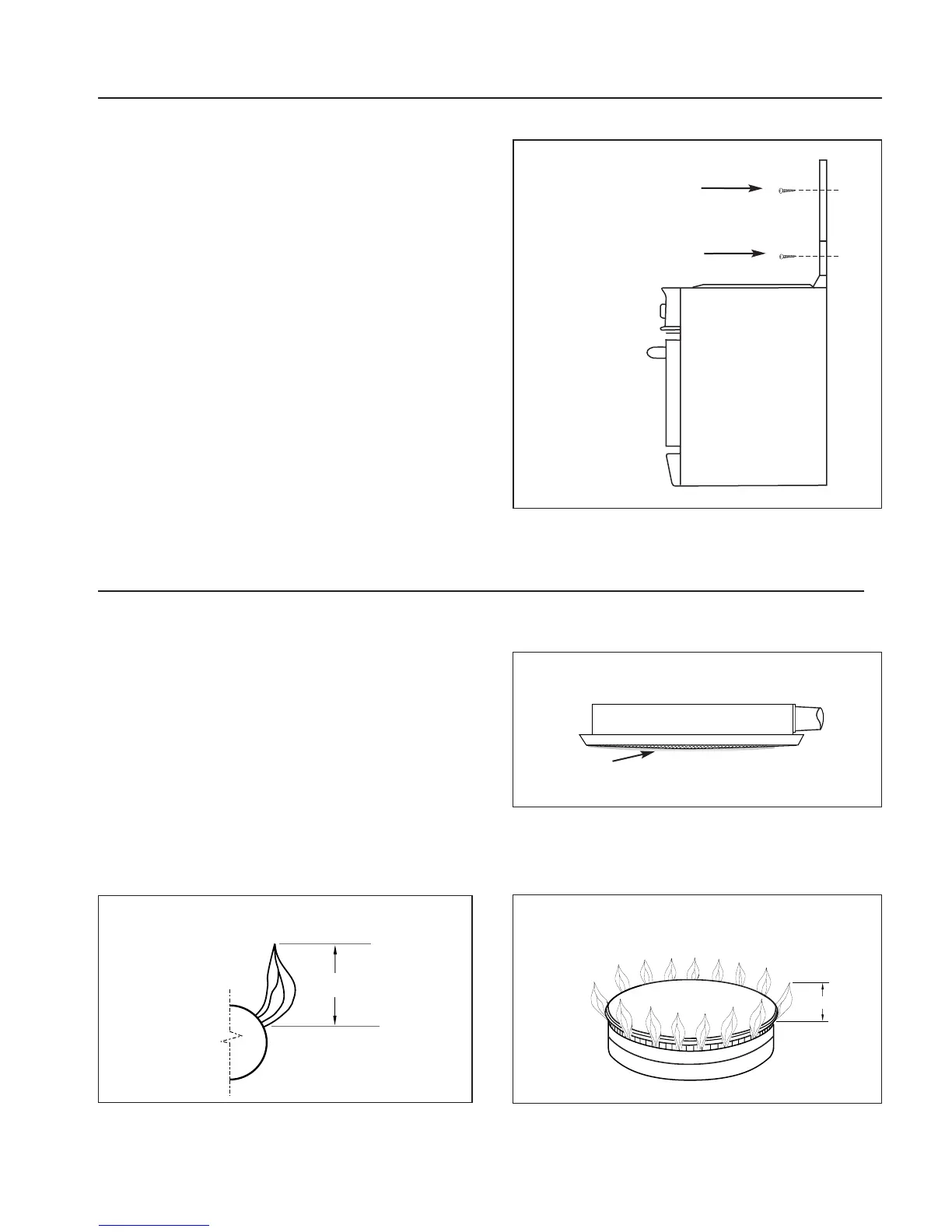

The backguard is located, as shown in Fig. 8. Secure the
backguard to the wall behind the range. Specific
instructions for installation of the full backguard or low
backguard can be found packaged with the backguard.
PROPER FLAME SIZES
The sealed top burners have an infinite number of heat
settings and there are no fixed positions on the control
knobs between HI and LO.To turn the sealed top burner
on, push in on the control knob and turn it counter-
clockwise to the “LITE”position.An audible clicking sound
will be heard. When the gas has been ignited by the
electronic spark igniter, turn the knob to the desired
setting.
1-1/2" – 2"
OVEN BURNER
INFRARED BROIL BURNER
BLUE FLAME
1-1/2"
COOKTOP BURNER
Fig. 8
Fig. 10
Fig. 11
Fig. 9
Wall Mount Full
Backguard
(Model No.BGS-3030)
Wall Mount Low
Backguard
(Model No.BGS-1230)
FLAME CHARACTERISTICS
Sealed Top Burner Lighting Note:
