DCS RGSC-305 - Oven Burner Assembly

PRELIMINARY
47

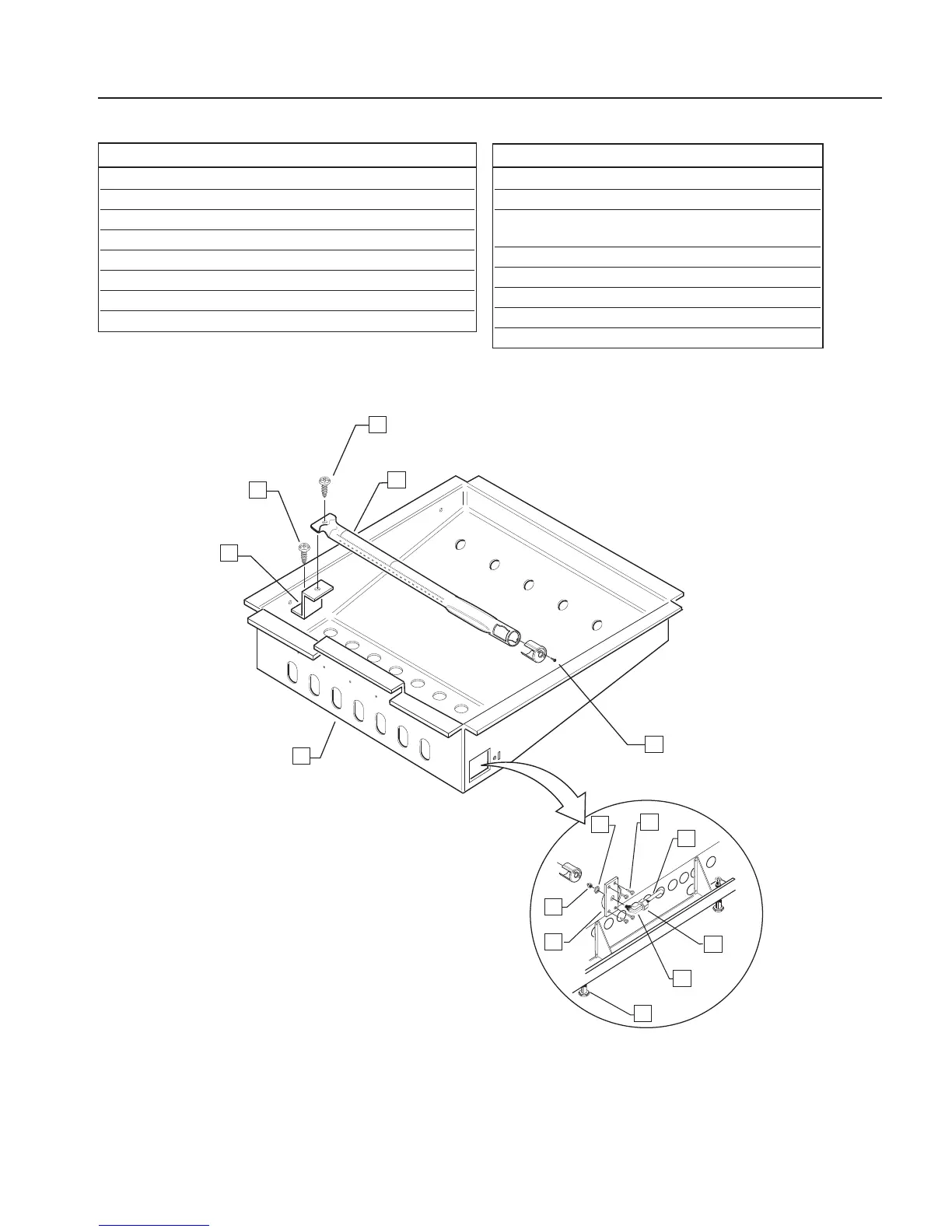

OVEN BURNER ASSEMBLY
VIEW LOOKING BEHIND RIGHT SIDE
PAN EL NEAR BOTTOM.
ITEM PART NO. DESCRIPTION
1 15001-09 SCREW
2 91757 BRACKET,BURNER
3 91937 BURNER BOX
4 91712 BRACKET
5 18052-2 ADJUSTABLE LEG
6 18376-01 90
º
ELBOW ORIFICE HOLDER ASSY-NAT
18376-02 90
º
ELBOW ORIFICE HOLDER ASSY-LP
7 18077-1 COMPRESSION NUT
ITEM PART NO. DESCRIPTION
8 91723 TUBE BAKE
9 15001-27 SCREW (4 PLCS)
10 15071 NUT,STAMPED PAL NUT
REPLACEMENT PART
11 15001-09 SCREW
12 12275 BURNER/AIR SHUTTER,OVEN
13 15001-27 SCREW
14 13005-40 ORIFICE (NAT)
13005-53 ORIFICE (LP)
11
13
12
1
2
3
10
9
8
7
6
4
5
14
