PRELIMINARY
COMPONENT ACCESS
24
BROILER ASSEMBLY/IGNITER REMOVAL
WARNING:
Disconnect circuit breaker and turn off
the main gas valve prior to performing
the following procedure...

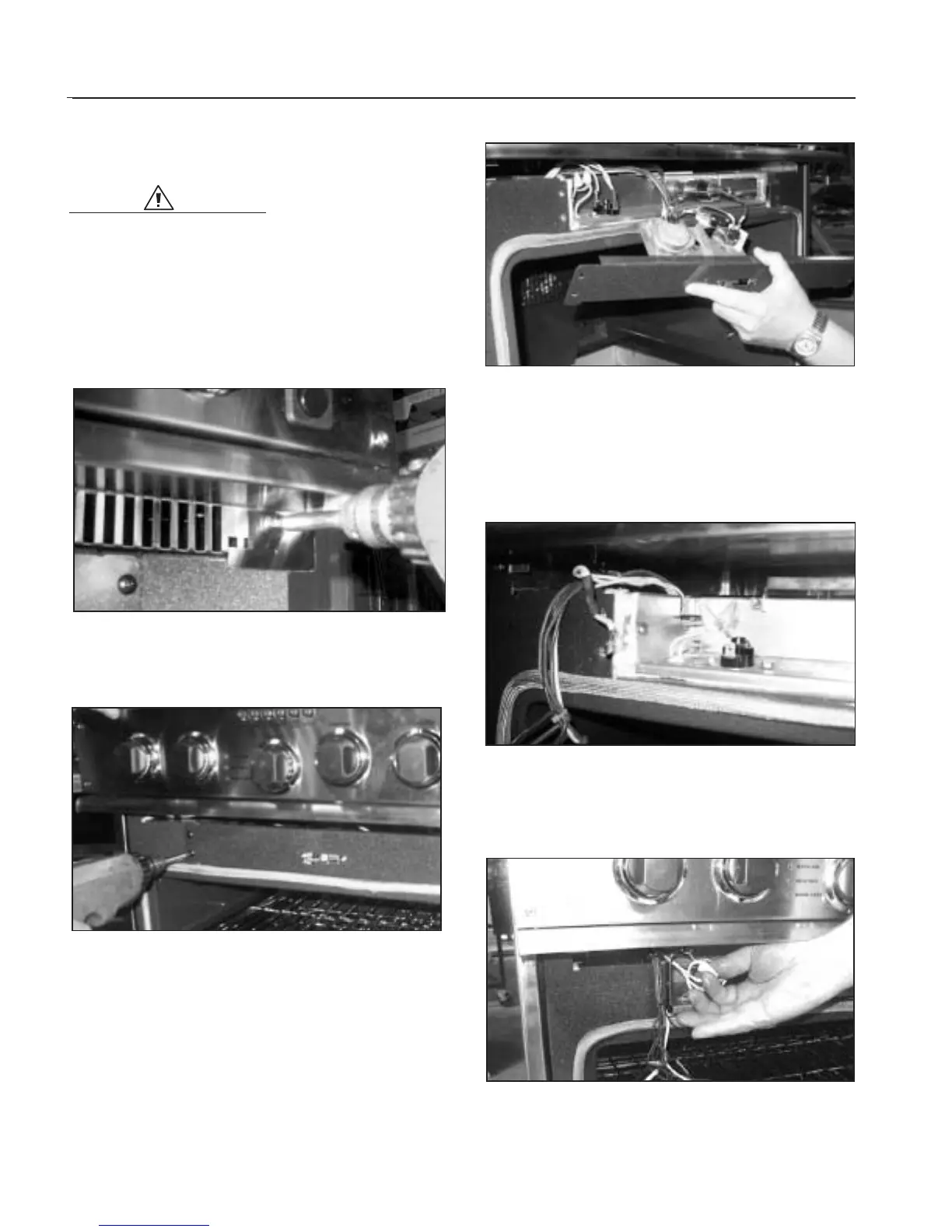

1.Remove the three (3) phillips screws securing the wire
cover panel located in the top of the oven door
opening (fig.37).
2.Remove the four (4) black phillips screws securing the
access cover (fig.38).
3.Remove the access cover,taking care not to disconnect
or damage any wires or plugs connected to it (fig.39).
4.Carefully gather wires and direct them up through the
slot located in the rear left corner of the cavity. This will
allow access to the mounting screw located on the left
front side panel. Also disconnect the two (2) wires from
the high limit switch (fig.40).
5. Remove the two (2) ceramic wire nuts located on the
left side of the opening,and disconnect the 2 wires (fig.
41).
Fig. 37
Fig. 38
Fig. 39
Fig. 40
Fig. 41
