INSTALLATION ELECTRICAL / GAS CONNECTIONS
POWER REQUIREMENTS
120VAC,60 Hz.,single phase.
4 Amp.Max.
(Use 15 Amp.Circuit)
Always disconnect electric supply cord from the wall
outlet or service disconnect before servicing this
appliance. Observe all governing codes and ordinances
when grounding, in the absence of which, observe
National Electrical Code ANSI/NFPA No.70-1990.
RECOMMENDED GROUNDING METHOD
This appliance is factory equipped with a power supply
cord with a three-prong grounding plug (with polarized
parallel blades). It must be plugged into a mating
grounding, type receptacle, connected to a correctly
polarized 120 Volt circuit. If the circuit does not have a
grounding type receptacle, it is the responsibility and
obligation of the installer or user to have the existing
receptacle changed to a properly grounded and
polarized receptacle in accordance with all applicable
local codes and ordinances by a qualified electrician. In
the absence of local codes and ordinances the receptacle
replacement shall be in accordance with the National
Electrical Code. THE THIRD GROUND PRONG SHOULD
NOT,UNDER ANY CIRCUMSTANCES,BE CUT OR REMOVED

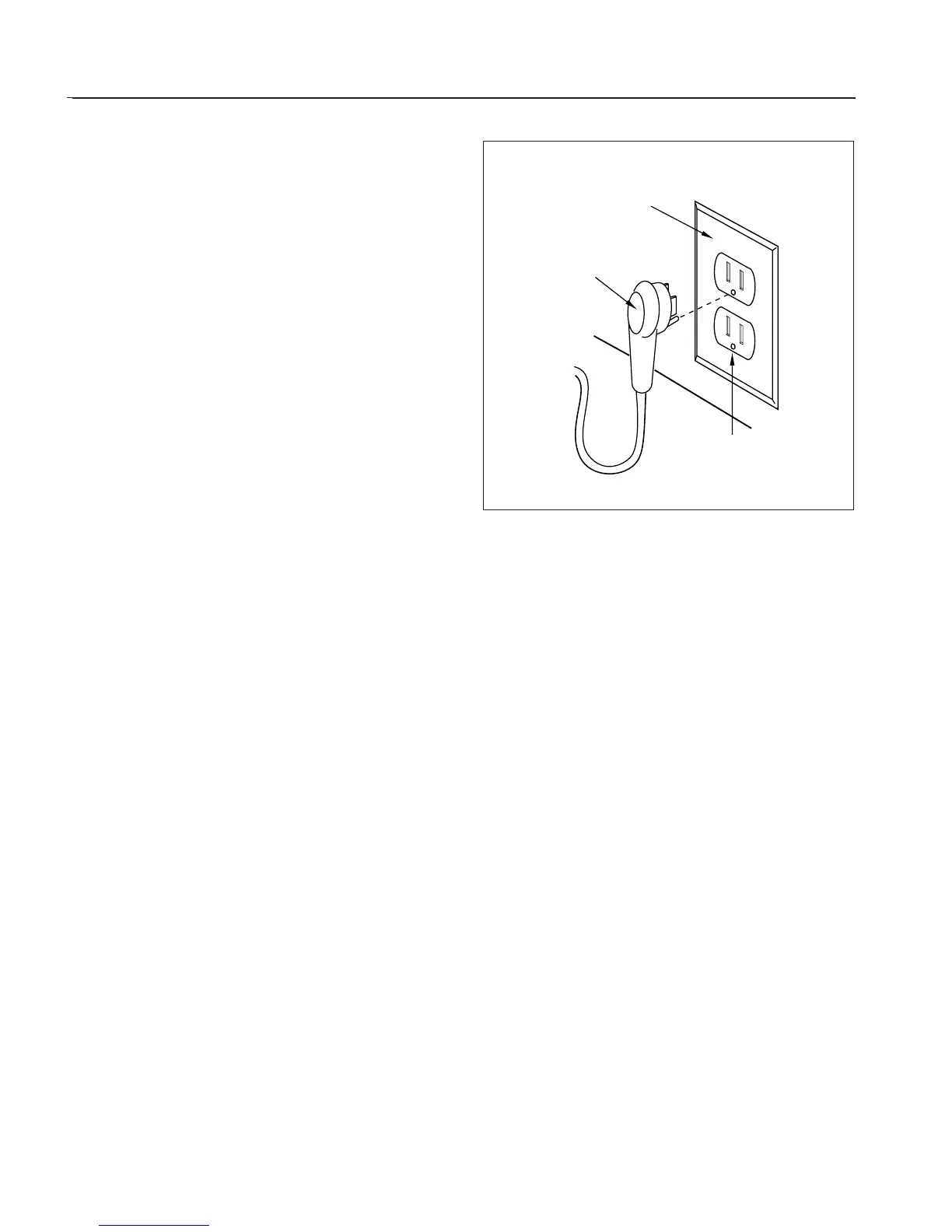

(See Fig.4).
GAS
Verify the type of gas supplied to the location.The range
is shipped from the factory set up and adjusted for
natural gas.The unit can be readily converted to LP gas.
After LP conversion, burner adjustment may be
necessary.
NATURAL GAS REQUIREMENTS
Connection: 1/2" NPT Minimum 5/8" dia.flex
line.
Pressure: 6" to 14" W.C.
LP GAS REQUIREMENTS
Connection: 1/2" N.P.T. Minimum 5/8" dia.flex
line.
Pressure: Supply pressure must be 11" to 14"
W.C.
A regulator is required at the LP source to
provide a maximum of 14" W.C.to the range
regulator.
