PRELIMINARY
20

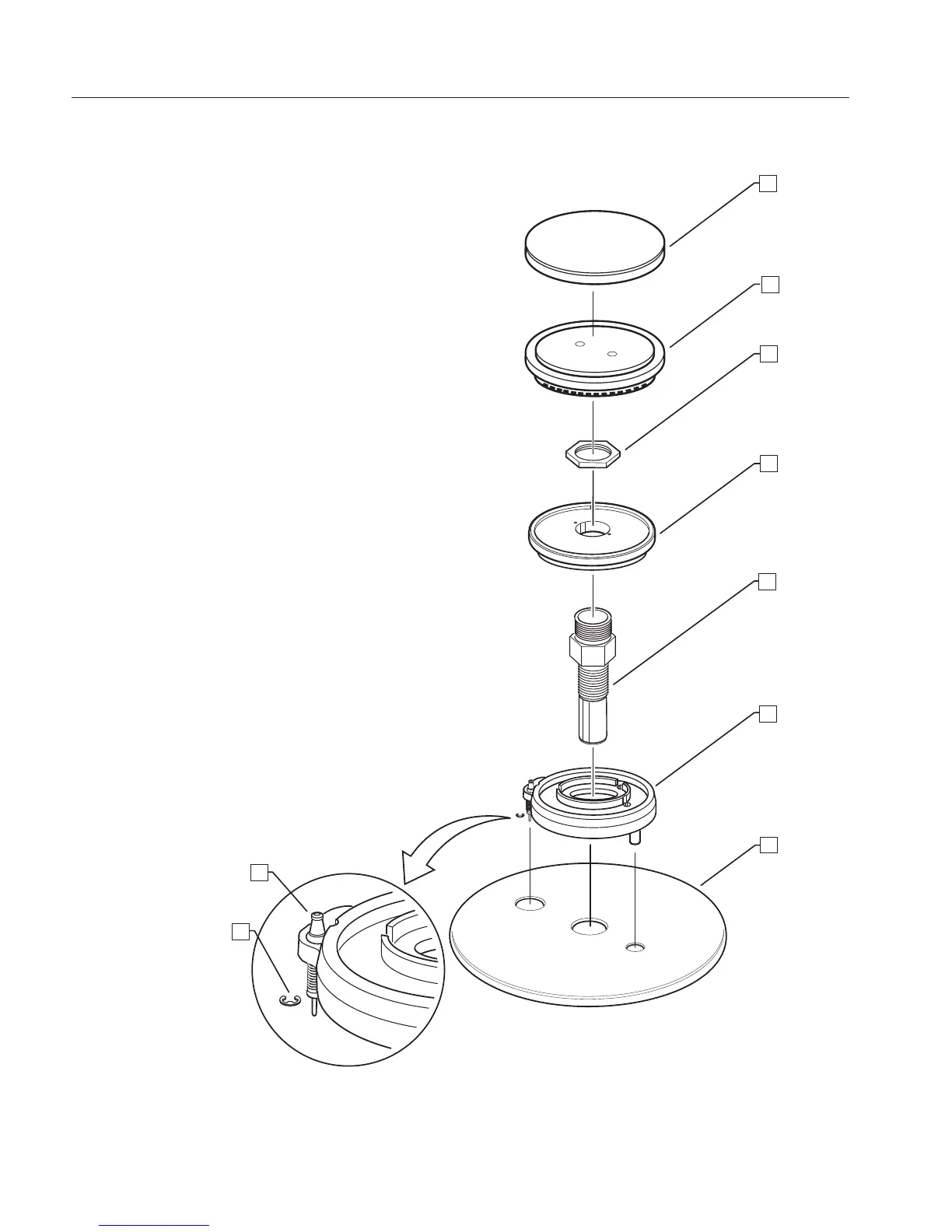

SEALED BURNER DISASSEMBLY
TO REPLACE THE BURNER IGNITERS,FOLLOW
THESE STEPS:
A) Remove burner cap (#1).
B) Remove main burner port ring (#2).
C) Using a 11/16”socket remove the brass nut (#3),which
secures the simmer ring (#4).
D) Remove the simmer ring.
E) Using a 13/16”socket,remove the venturi (#5) from the
center of the burner base.
F) Lift up burner base (#6) exposing the igniter wire.
Remove the wire and set aside the burner base.
G) The igniters (#8) located on the burner base flange can
be removed by removing the “c”clip (#6),which secures
them to the burner bases (#6).
H) After removing the clip and spring (#9) pull igniter (#8)
straight up from burner base assembly (#6).
1
2
5
6
3
4
7
8
9
