PRELIMINARY
33

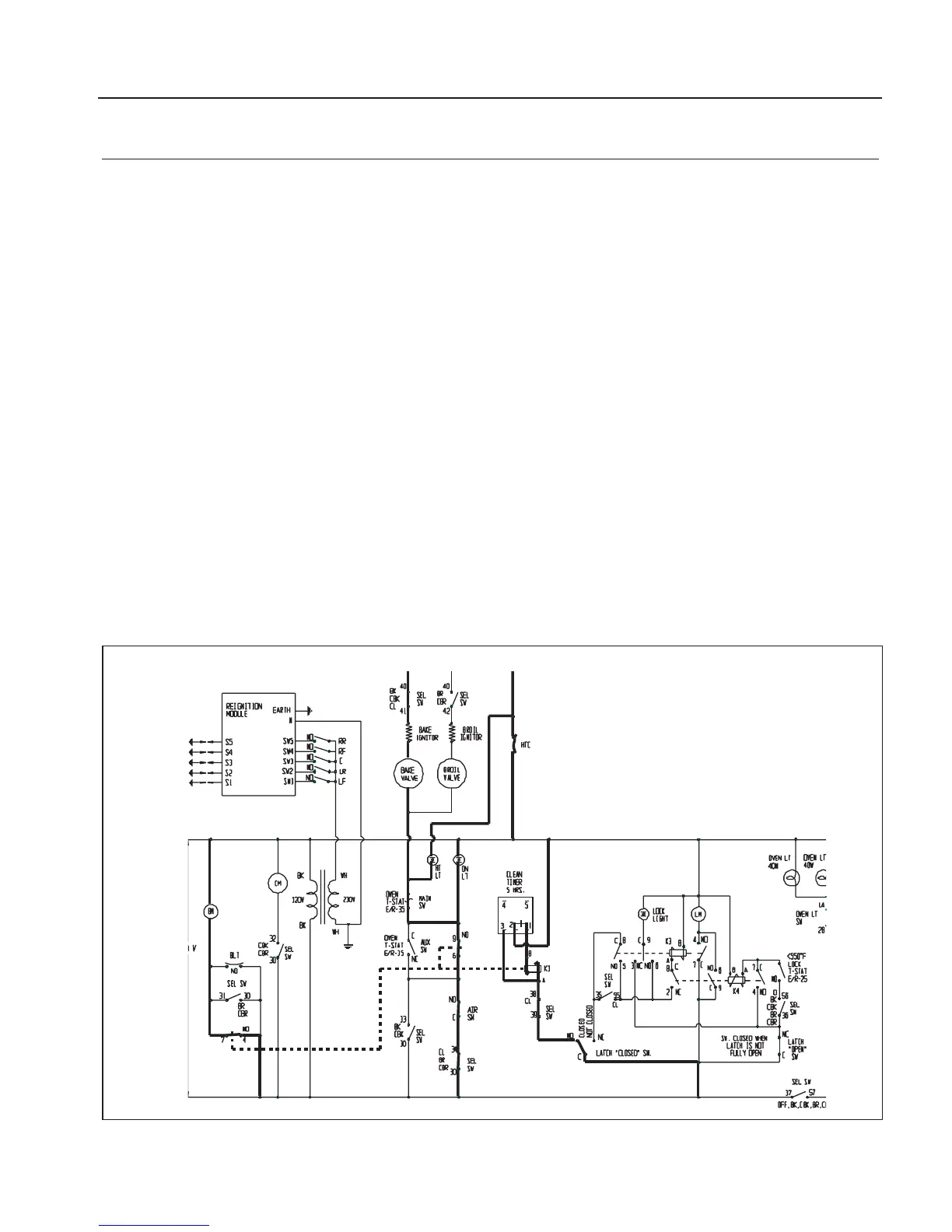

CLEAN RELAY HEATING (LOCKED)
COMPONENT CLOSED CONTACTS
1) “Latch close switch” C - NO
2) “Selector switch” 39 - 38
3) “Clean timer” 1 - 2
4) “K1 Relay”coil energized N/A
4a) “Blower motor”energized ( K1 ) 4 - 7
4b) “Air switch” closes,
5) “Selector switch” 34 - 30
6) “K1 Relay” 9 - 6
7) “Oven T-Stat”Micro switch contacts N/A
8) “Bake valve”energized N/A
9) “Bake igniter”energized N/A
10) “ Selector switch” 40 - 41
11) “High-Temp cut-out” N/A
To Next Page
