PRELIMINARY
34

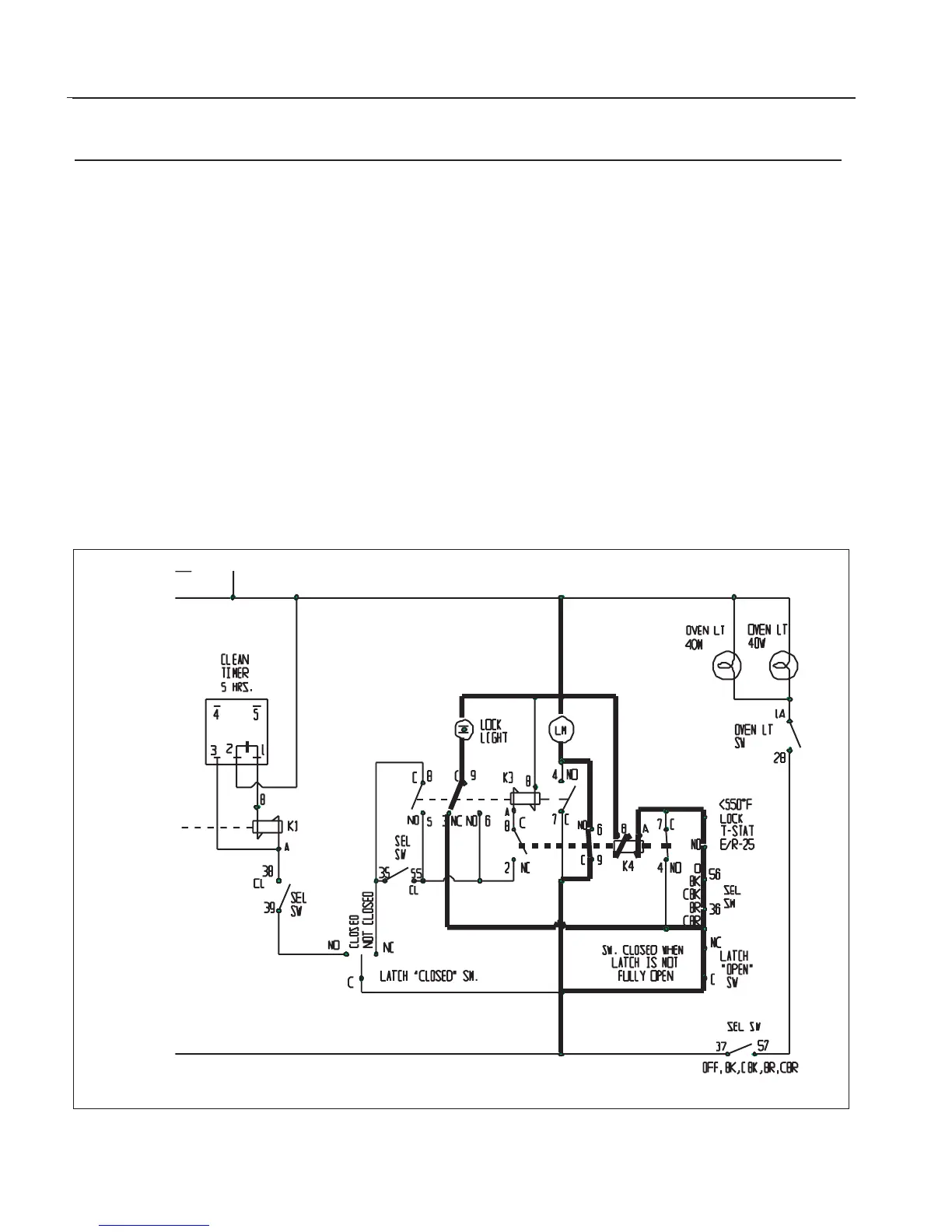

CLEAN RELAY UNLOCKING
COMPONENT CLOSED CONTACTS
1) “Selector switch”“Off” pos. N/A
2) “Oven temperature less than 550°F N/A
3) “Latch open switch” C – NC
4) “Selector switch” 36 - 56
5) “Lock T-Stat” C – NO
6) “K4 Relay”coil,energized N/A
6a) “K4 Relay” 9 - 6
6b) “Latch motor”,energized N/A
To Next Page
