DCS RGSC-305 - Page 46

PRELIMINARY
46

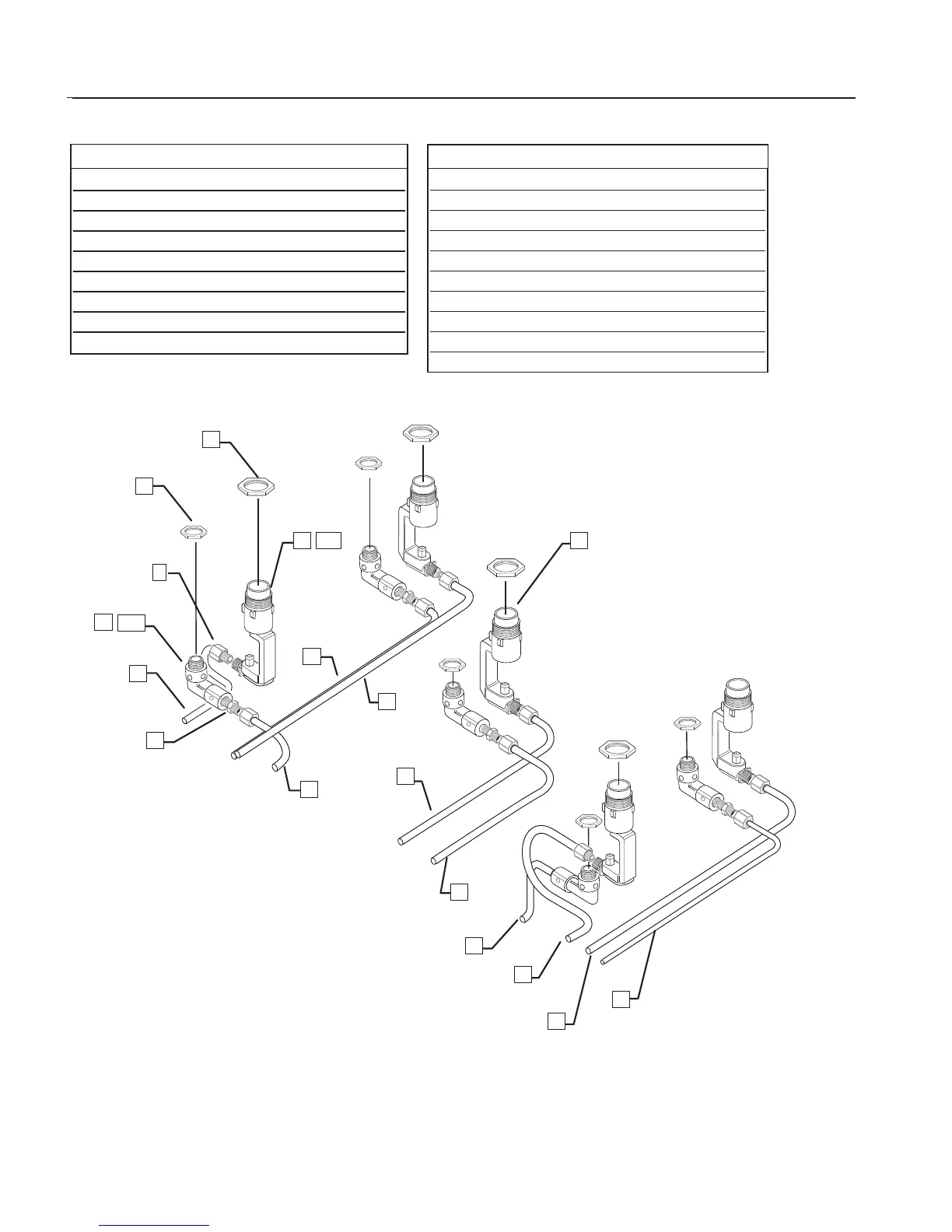

GAS JET ASSEMBLIES
ITEM PART NO. DESCRIPTION
1 15219 NUT,VENTURI (5 PLCS)
2 18077-1 NUT, COMPRESSION (MAIN)(5)
3 18284 B-NUT 3/16”(SIMMER)(5 PLCS)
4 11252 TUBE SIMMER (LEFT REAR)
5 11247 TUBE,MAIN (LEFT FRONT)
6 11251 TUBE SIMMER (LEFT FRONT)
7 11248 TUBE,MAIN (LEFT REAR)
8 11249 TUBE,MAIN (CENTER)
9 11253 TUBE SIMMER (CENTER)
ITEM PART NO. DESCRIPTION
10 11251 TUBE SIMMER (RIGHT FRONT)
11 11247 TUBE,MAIN (RIGHT FRONT)
12 11248 TUBE,MAIN (RIGHT REAR)
13 11252 TUBE SIMMER (RIGHT REAR)
14 12200-09 JET HLDR,MAIN (NAT)(CTR)
15 12200-10 JET HLDR,MAIN (NAT)(4 PLCS)
15A 12254-04 JET HLDR,MAIN (LP)(5 PLCS)
16 12254-05 JET HLDR,SIMMER (NAT)(5 PLCS)
16A 12254-04 JET HLDR,SIMMER (LP)(5 PLCS)
17 15236 NUT,W/CHAMPER
1
15
2
16A
5
4
7
6
3
14
8
9
10
11
12
13
16
15A
17
