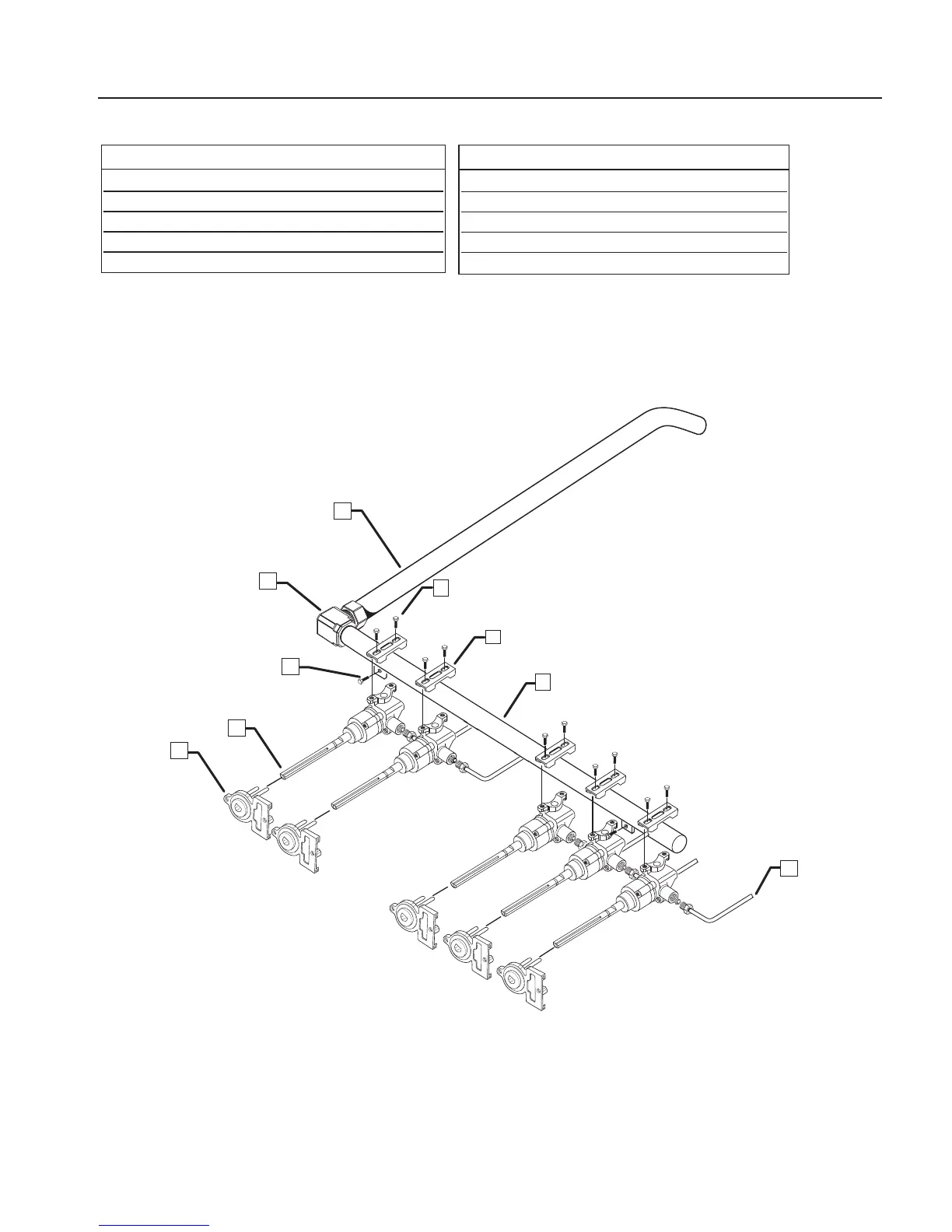

MANIFOLD/VALVES ASSEMBLY
ITEM PART NO. DESCRIPTION
1 91724 TUBE (GAS)
2 18480 ELBOW 90º 1/2 NPT TO 5/8 TUBE
3 15021-08 NUT (2 PLCS)
4 13390-06 GAS VALVE,NAT
13390-08 GAS VALVE,LP
ITEM PART NO. DESCRIPTION
5 16415 SWITCH,IGNITER (5 PLCS)
6 11252 3/16”TUBE ASSY SIMMER REAR
7 18323 MANIFOLD
8 12177 CLAMP,VALVE
9 15003-33 BOLT (10 PLCS)
