DCS RGSC-305 - Page 39

PRELIMINARY
39

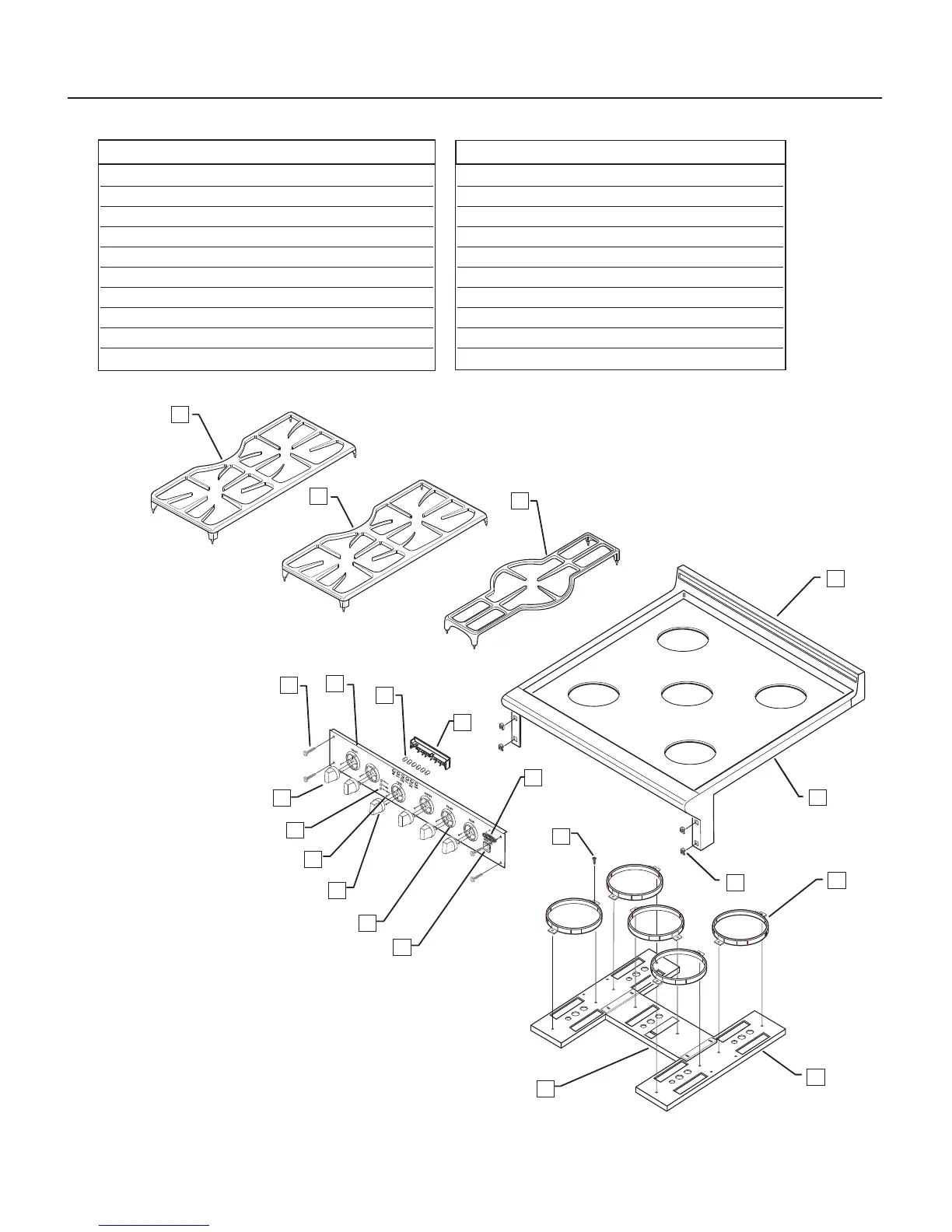

RANGE TOP ASSEMBLY
2
2
R
E
A
R
ITEM PART NO. DESCRIPTION
1 12261-01 SIDE GRATE (R/L)
2 12262-01 CENTER GRATE
3 15002-41 SCREW,TORX (#15) (4 PLCS)
4 14051-01 BUTTON,BLACK (6 PLCS)
5 16399 SWITCH,PUSH BUTTON
6 14307 KNOB,BLACK (5 PLCS)
7 16046-02 LENS,LIGHT PILOT (3 PLCS)
8 15001-29 SCREW,BEZEL (12 PLCS)
9 14306 KNOB,BLACK THERMOSTAT
10 14006-PL BEZEL,PLATED (6 PLCS)
ITEM PART NO. DESCRIPTION
11 16127 SWITCH,OVEN LIGHT
12 15073 LOGO,DCS
13 15001-19 SCREW (10 PLCS)
14 91228 CTR HANGER BURNER
15 91227 HANGER,BURNER (R/L)
16 91727 SUPPORT,COOKTOP (5 PLCS)
17 15029-02 NUT,CAGED (4 PLCS)
18 91782 COOKTOP WLD ASSY,INNER
19 91678 ISLAND TRIM WLD ASSY
20 91224-PA VALVE PANEL ASSY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
