Signal
Generator
►
Channel
Check
►
Phase
Check
►
Burn In
Outputs tone
on L channel
only then R
channel only.
Outputs noise
on both
channels then
inverts R.
Outputs
modulated pink
noise to burn-
in your
system.

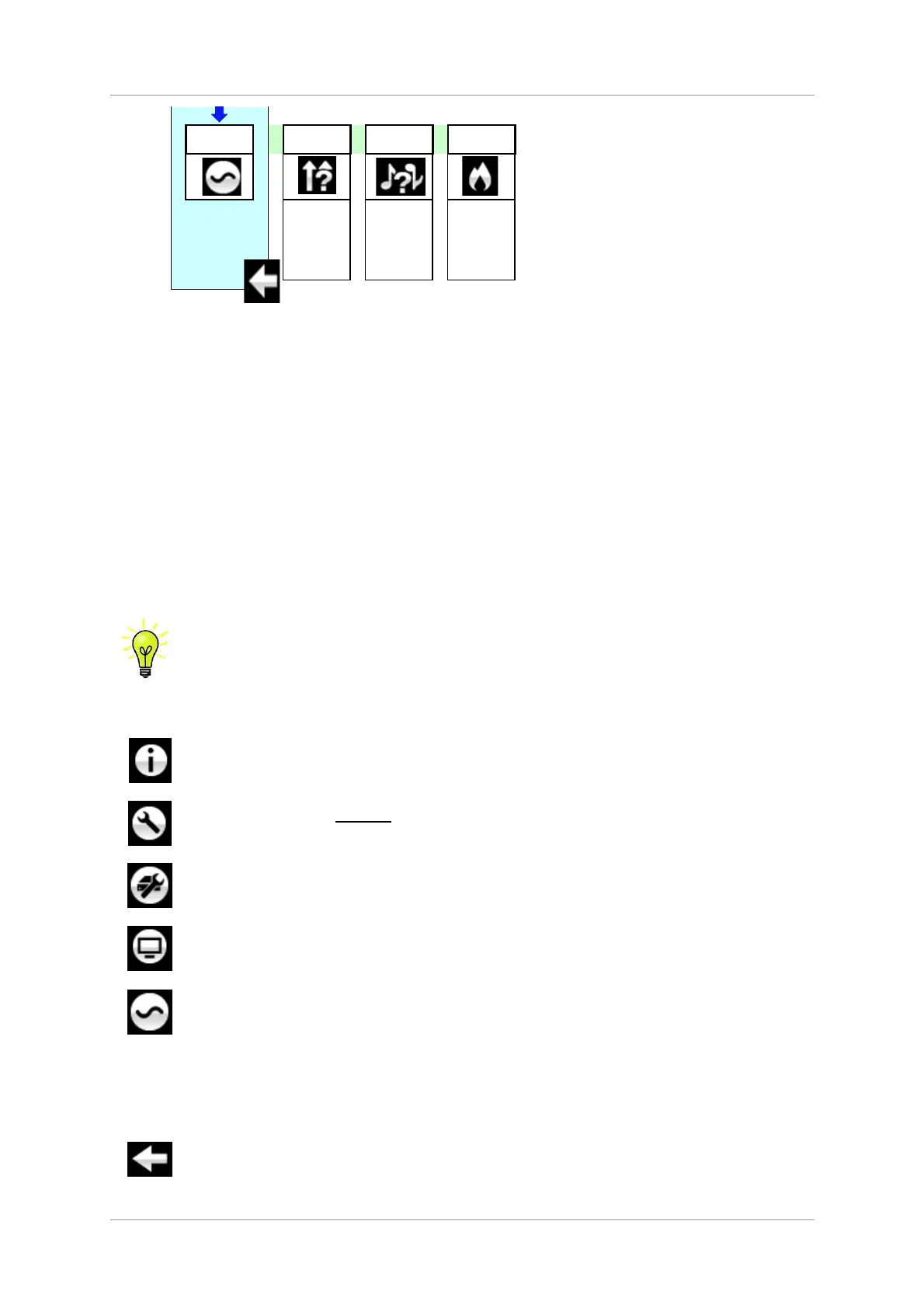

Figure 8 – The menu sequence
Using the Menu
The menu gives the user access to a range of additional features. It also allows new features and
performance enhancements to be added later by software updates.
The menu is controlled by four buttons.
• Press the Menu button to open the menu or select a setting.
• Press the ► button to page forward through the menu.
• Press the ◄ button pages backward through the menu.
• Press the Power button to close the menu or just wait 10 seconds.
• While the DAC’s menu is open, the Rotary Control pages forwards or backwards.
Use the Menu Guide sheet to help you find the right menu page.
Each unit in the range has either four or five top-level menu pages:
The INFORMATION menu gives unit set-up details, software issues, serial number and
contact details.
Each model has a different SETTINGS menu, which allows you to set some features that
are not directly accessible from the front panel.
The CONFIGURATION menu allows you to lock important settings, save a standard
setup and reset the unit.
The DISPLAY SETTINGS menu is used to adjust the display.
The SIGNAL GENERATOR menu (featured on the Transport, Upsampler and DAC only)
contains test and set-up routines.
Use the ► button to move the blue highlight to the menu you want, then press the Menu button to
select it. The next menu level down is displayed. Use the ► button to move the highlight to the menu
page you want, then press the Menu button to display the information or change the setting.
Select the return icon to go back to the previous menu level.
