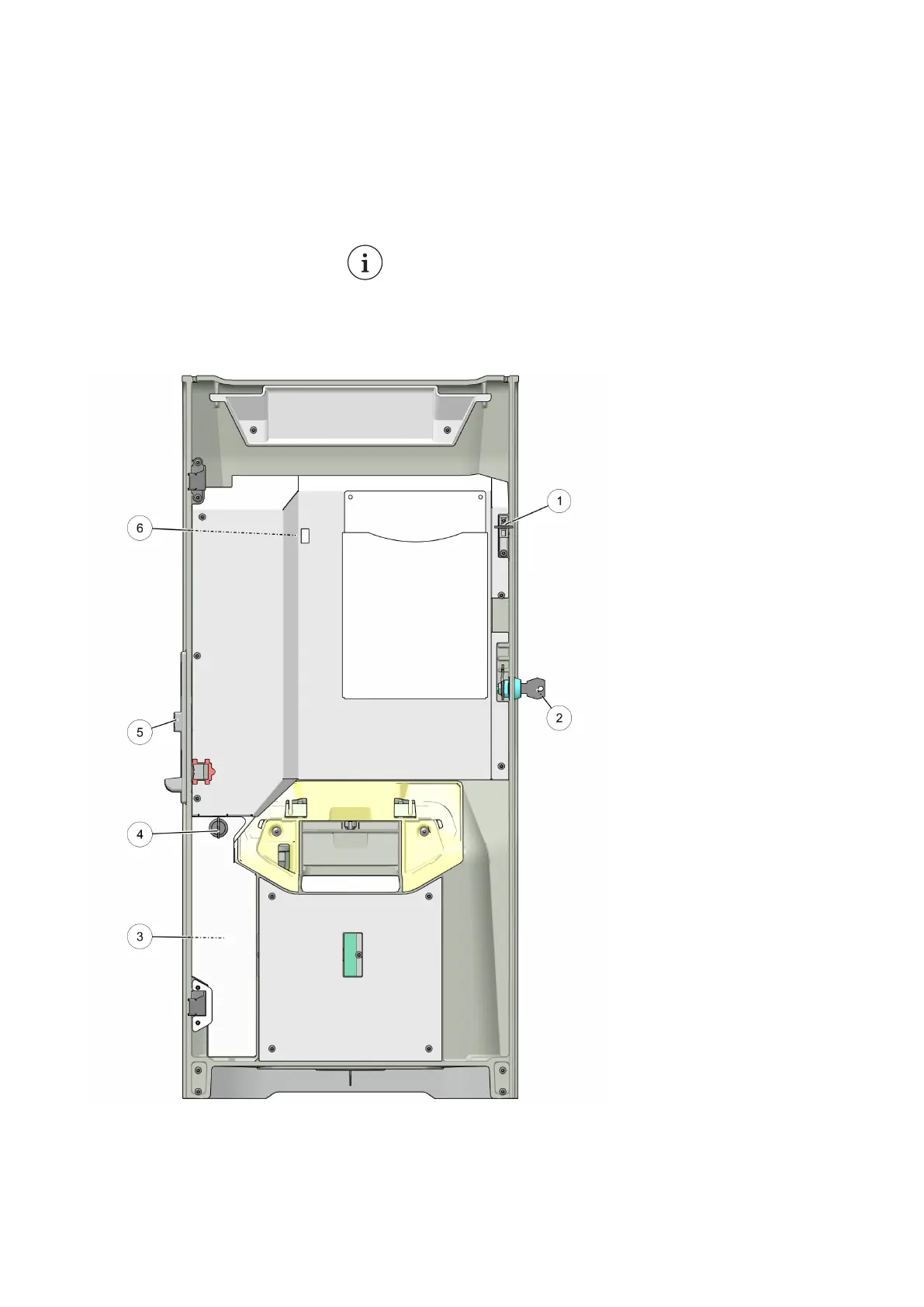

2.1.3 Door interior
Door interior Edge small model with optional payment device (coin
acceptor)
NOTE
All pictures show a generic configuration. The actual model can
be different. To improve clarity, colors in the pictures may be
different from the actual colors.
1. Service key
2. Door lock and key
3. Coin box
4. Coin box lock
5. Coin acceptor (payment device)
6. USB port
Edge XNA Small Cabinet 18-000 CoEx XL® brewer User Manual 5DUXNQ20M EN V2.1
18
