Defender DVR User Manual

12
ConneCting a monitor
1. Connect the BNC to RCA connector to the top VIDEO OUT
connection on the back of the DVR.
2. Plug the RCA cable into the BNC connector.
3. Attach the other end of the RCA cable to a yellow RCA
video input on your TV/monitor.
4. Switch the TV/Monitor source to view the DVR. (Consult
the TV/Monitor manual for instructions on how to
switch the video source).
5. The bottom video out is for a second monitor. Plugging
an RCA cable into this video out would be the same as
plugging it into the top video output.

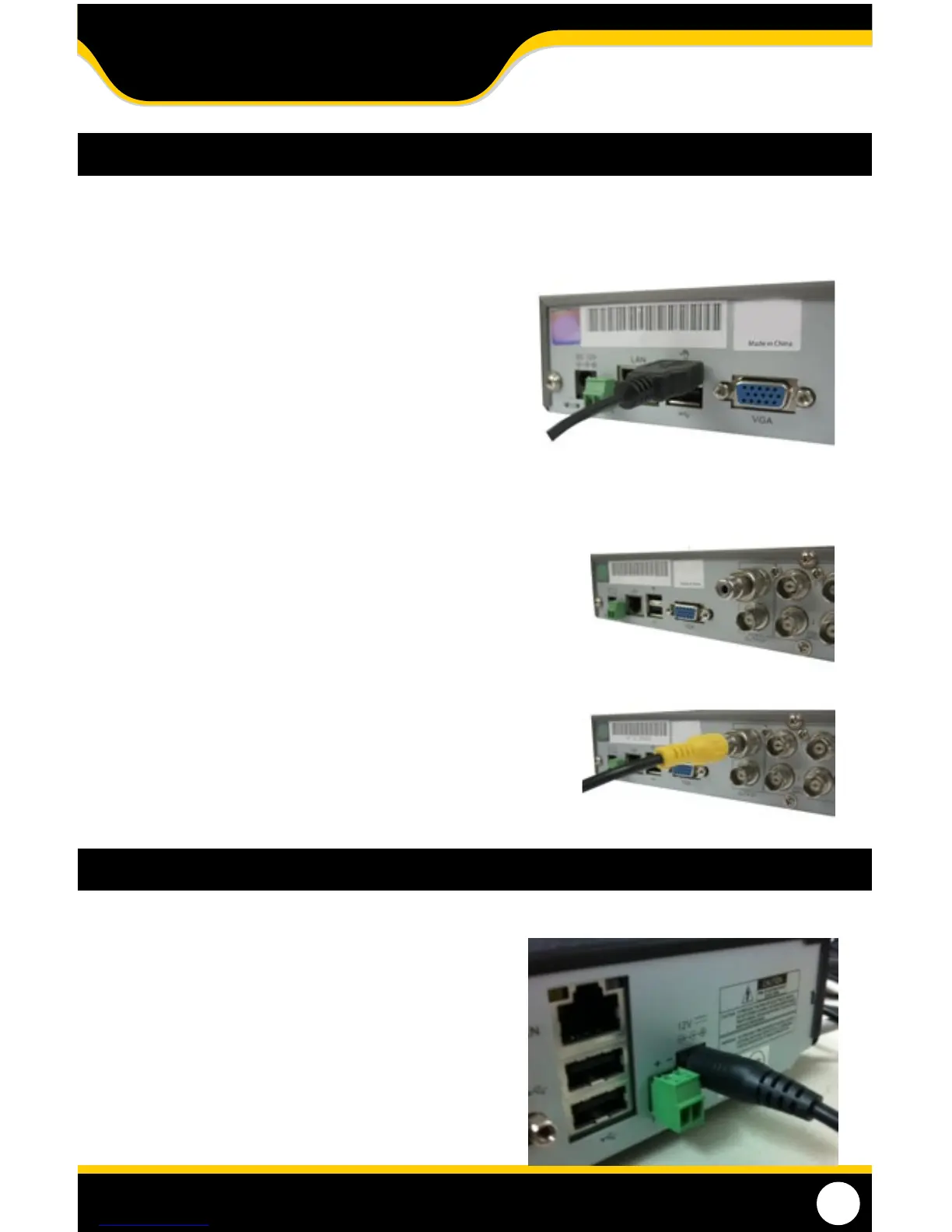

Connect BNC to RCA connector
Plug RCA cable to BNC connector
POWERING ON DVR
1. Insert the included power cord into the included
power supply.
2. Plug the power cord into a power outlet (surge
protected power outlet recommended).
3. Insert the power supply wire into the rear DC 12V port
on the DVR.
• Afterafewsecondsthesplashscreenwillappearandthe
DVR will start up.
Connect to a power source to turn on DVR
BASIC SETUP
CONNECTING ADDITIONAL DEVICES
ConneCting a UsB moUse
1. Plug the USB connection on the mouse into the top
USB connection on the back of the DVR.
Plug Mouse into top USB port
