Defender DVR User Manual

8

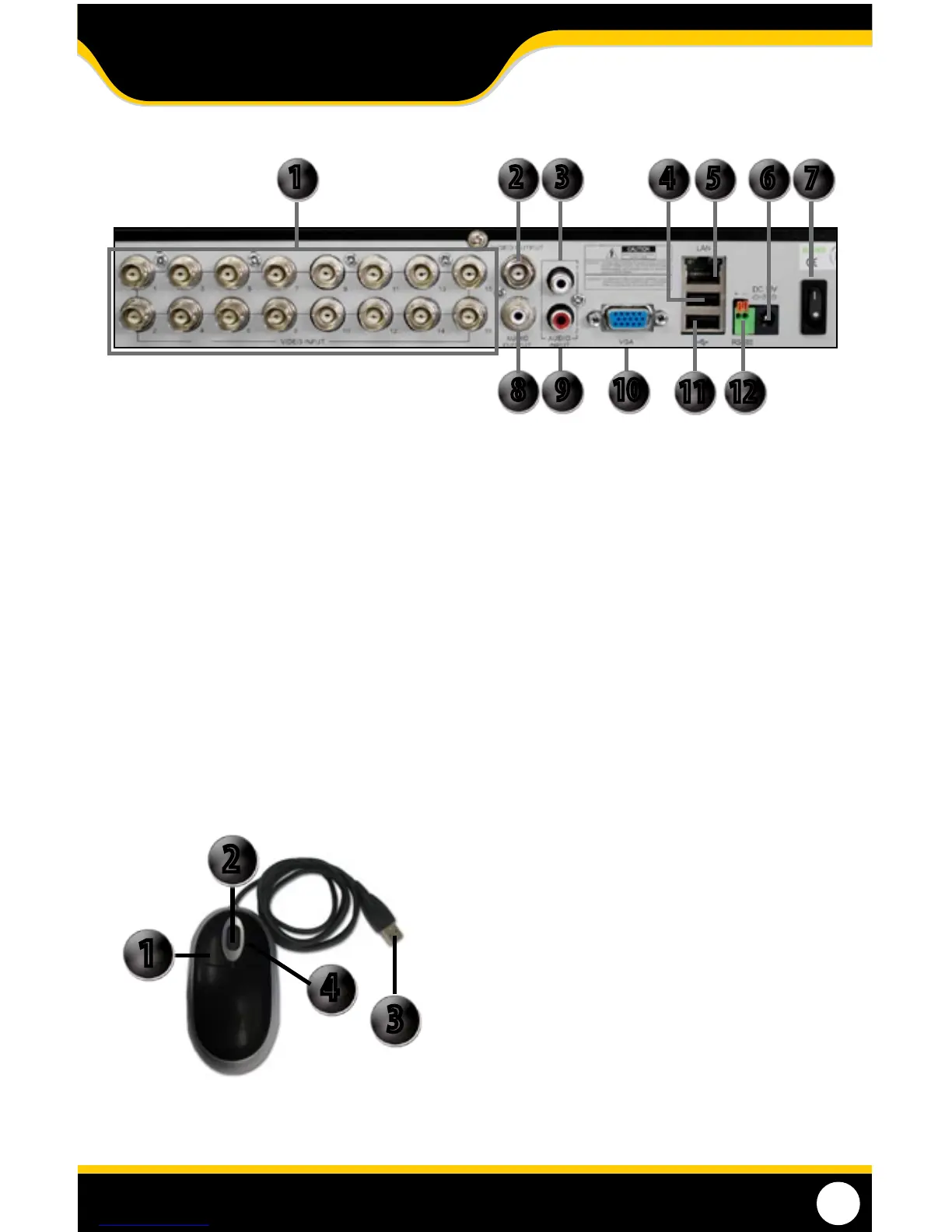

CONNECTIONS
DVR BACK
1. Camera Connect: Camera connections
for cameras.
2. Video Output: Connects to a monitor.
3. Audio Input: Accepts a microphone and/
or audio-supported camera
(not included).
4. Mouse input: Connect the USB
(before power up).
5. LAN Connection: Connects to router.
6. Power Connection: Connect DVR to power source.
7. Power Switch: Turns DVR power ON and OFF.
8. Audio Output: Connects to speaker/
audio input.
9. Audio Input: Accepts a microphone and/
or audio-supported camera
(not included).
10. VGA: Connects to VGA monitor.
11. USB Connection: Connect USB drive for backup.
12. PTZ: Connects to two-wire PTZ
camera (not included).
MOUSE
1
4
2
3
1. Select: Click this button to select
highlighted object.
2. Scroll Wheel: This wheel has no function on
this DVR.
3. USB Connection: Connects to the USB mouse port
(top port) on the back of the DVR.
4. Deselect: Allows you to exit the menu you are
currently in. When in live view, it
will open the submenu.
1
5
2 3
7
8 9
4
10
6
11 12
