Deif GPC-3 User Manual

3.2.4 Setup menu
The setup menu is used for parameter setup or to get detailed information that is not available in the view
menu system. In this way, this menu can be used for both daily use and setup purposes. The menu is en-
tered from the entry window by selecting the entry SETUP in the fourth display line.
Paralleling and Protection Unit
multi-line PPU
PROTECTION SETUP
PROT CTRL I/O SYST
G 400 400 400V
G f-L1 0.00Hz
1
2
3
4

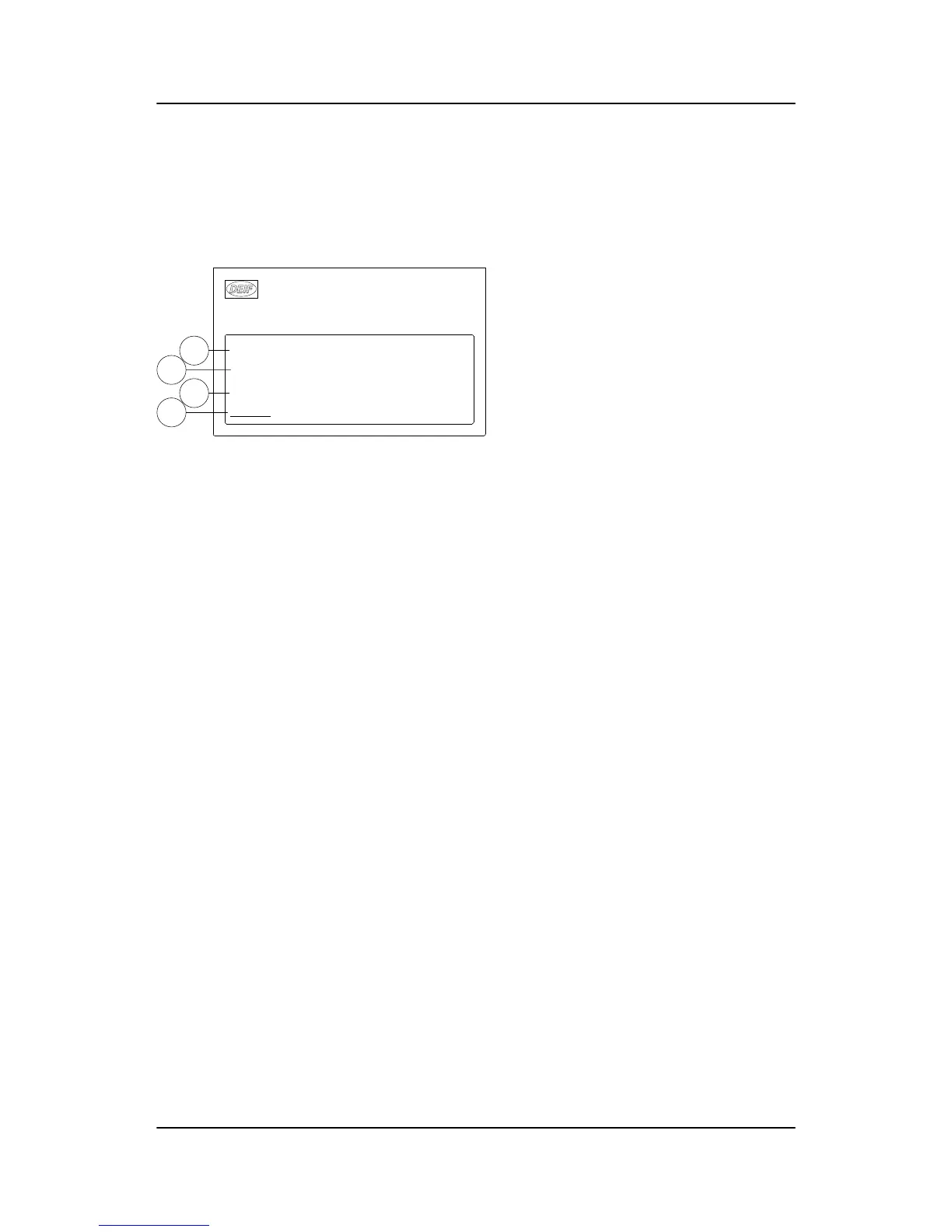

First display line:
(Daily use) The first line is used to display generator and busbar values
Second display line:
(Daily use) Various values can be displayed
(Menu system) Information about the selected channel number
(Alarm/event list) The latest alarm/event is displayed
Third display line:
(Daily use)
(Setup menu)
Explanation for the fourth line cursor selection presents setting of the selected function,
and if changes are made, the possible max. and min. values for the setting
Fourth display line:
(Daily use) Entry selection for the setup menu
Press SELECT to select the underscored menu
(Setup menu) Sub-functions for the individual parameters, for example limit
ML-2 operators manual 4189340579 UK Menu systems and structure
DEIF A/S Page 16 of 29
