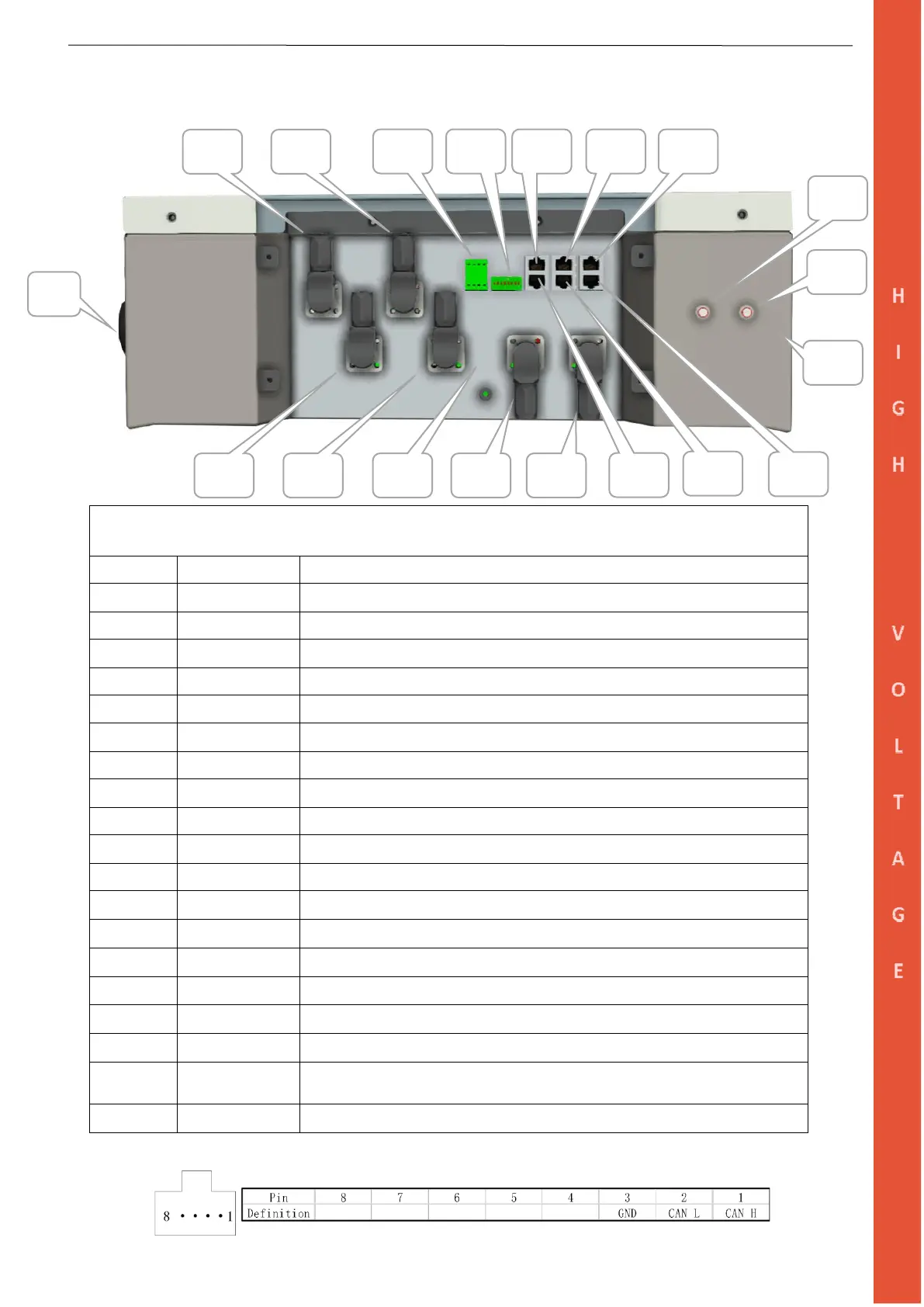

HV BOX Terminals Definition Table
HV BOX Definition Table
Interface
Name
Function
A
WIFI ANTENNA
WiFi ANTENNA * (Optional)
B
INPUT CHANNEL +
POSITIVE INPUT FROM THE INVERTER CHANNEL 01 POSITIVE PLUG (+) MAX 50A
C
INPUT CHANNEL -
NEGATIVE INPUT FROM THE INVERTER CHANNEL 01 NEGATIVE PLUG (-) MAX 50A
D
INPUT CHANNEL +
POSITIVE INPUT FROM THE INVERTER CHANNEL 02 POSITIVE PLUG (+) MAX 50A
E
INPUT CHANNEL -
NEGATIVE INPUT FROM THE INVERTER CHANNEL 02 NEGATIVE PLUG (-) MAX 50A
F
D/I – D/O
Digital Input / Digital Output (Both Terminals are programmable via PC Software)
G
DIP TERMINAL
DIP SWITCH TERMINAL (Address)
H
CAN PORT 2-A
RJ45 CAN 2-A PORT (Inverter interface)
I
CAN PORT 2-B
RJ45 CAN 1-A PORT (Line for connection with SUB HV BOX)
L
CAN PORT 1-A
RJ45 CAN 2-B PORT (Connection with the First battery Module)
M
CAN PORT 1-B
RJ45 CAN 1-A PORT (Line for connection with SUB HV BOX)
N
LINK -A
NOT USED
O
LINK -B
RJ45 LINK (Line for connection with first battery module)
P
BATTERY INPUT +
POSITIVE CONNECTION FROM THE POSITIVE TERMINAL OF THE BATTERY
Q
BATTERY INPUT -
NEGATIVE CONNECTION FROM THE NEGATIVE TERMINAL OF THE BATTERY
R
GROUND
GROUND TERMINAL
S
POWER LED
POWER LED (RED COLOR = POWER OK)
T
STATUS LED
COMM and STATUS LED
STEADY GREEN= RUN, BLINK= IDLE COMM LOSS or MODULE FAIL)
U
MAIN BRAKER
1000Vdc 125A MANUAL MAIN BREAKER (Located on the side)
