Deka DURATION DD5300 - Serial Tower Connection #1 Set-Up of the HV Box CAN Communication Loop

DEKA DURATION DD5300
74

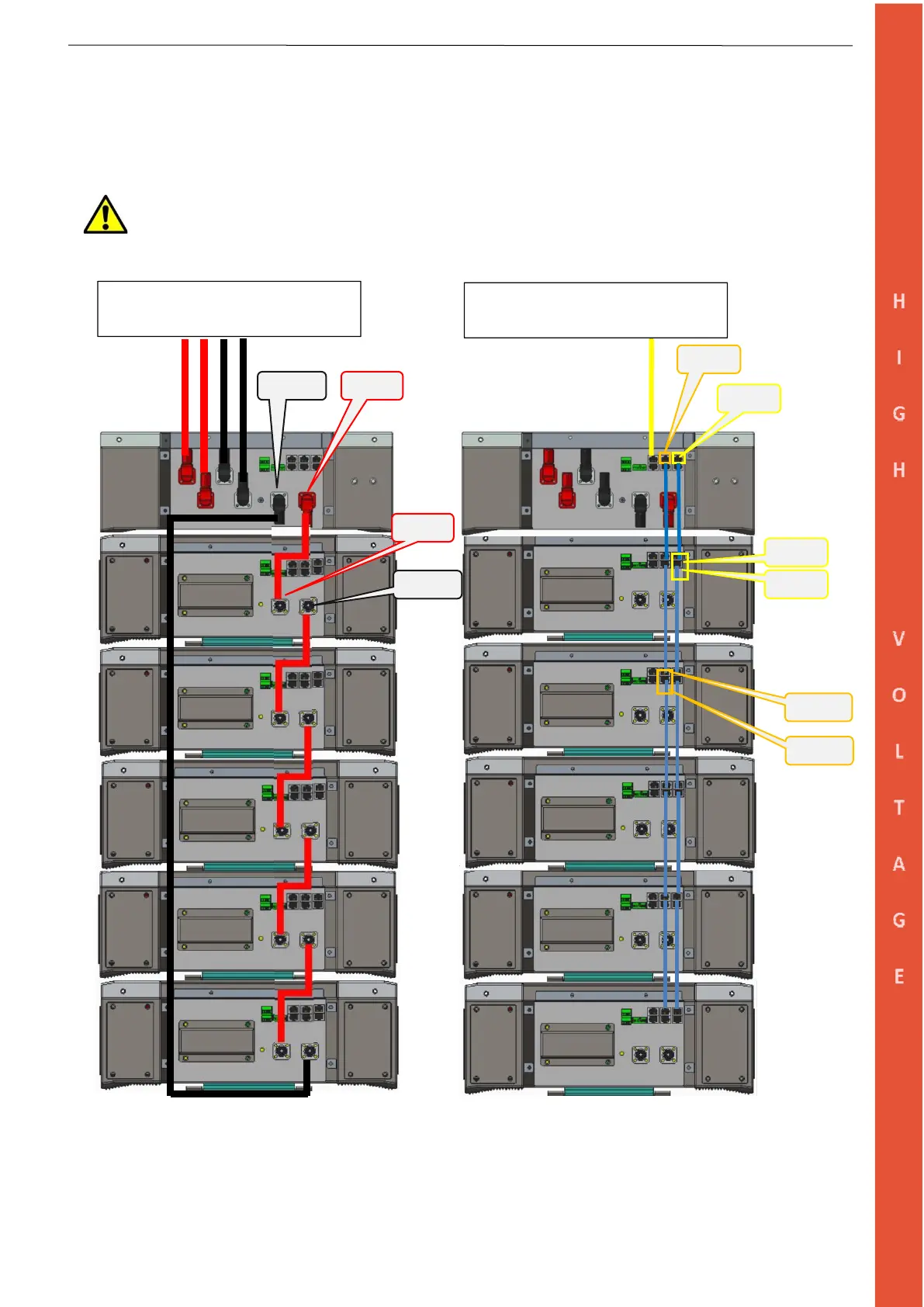

3.5.1 Serial Tower Connection #1 Set-Up of the HV Box CAN Communication Loop
Four batteries connected in series is the minimum allowed configuration for High Voltage operation:
CAUTION: After setting the DIP switches, the batteries must be restarted for the DIP switch changes to take effect.
Power Cables Connection
COMM Cables Connection
CAN 1-B
LINK-B
LINK-A
LINK-B
CAN 1-A
CAN 1-B
POSITIVE
NEGATIVE
NEGATIVE
POSITIVE
