2.2 Low Voltage Module Wiring and Set Up
2.2.1 Battery Connection Terminals
CAUTION: The LV fuse is contained in the left portion of the Battery Module as shown above.
The access to the fuse is restricted to authorized Deka Duration service personnel and the protection lid
cannot be opened by anyone else. The same applies to the HV fuse.
2.2.2 BATTERY CAN Pin Out

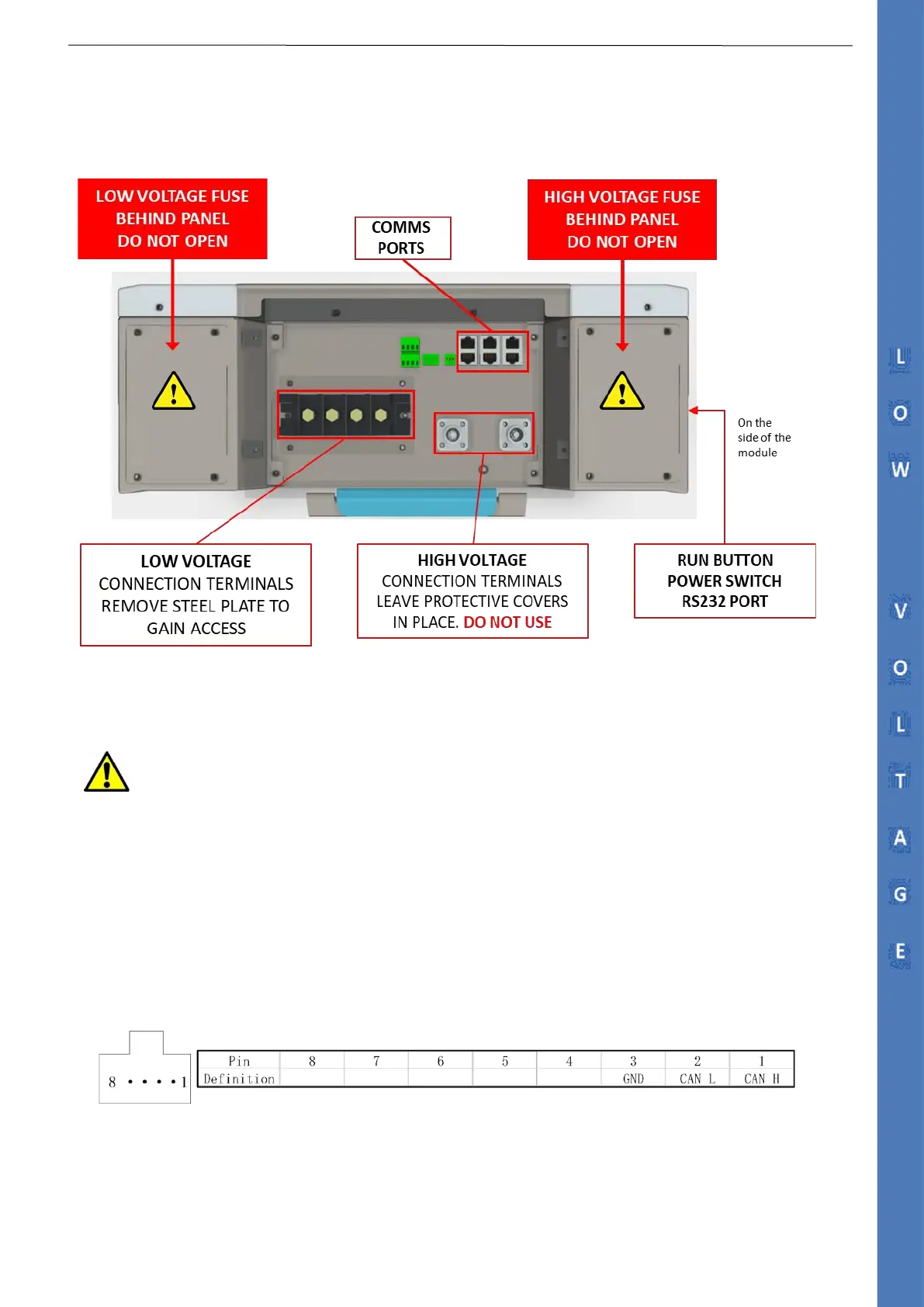

The terminal layout is shown in the following figure:
