Deka DURATION DD5300 - Single Cluster DIP and DATA Connection

DEKA DURATION DD5300
38

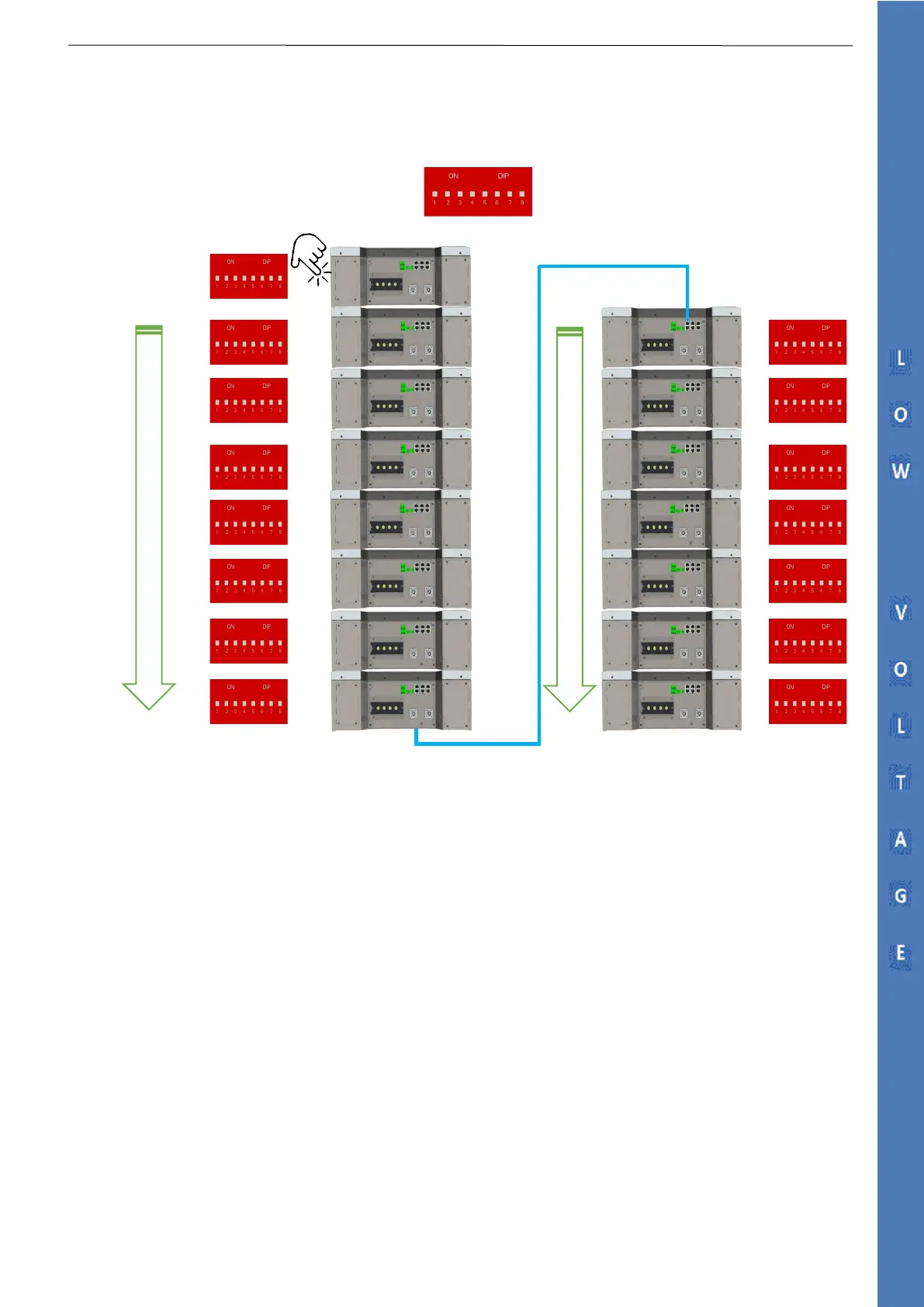

2.5.2 Single Cluster DIP and DATA Connection
The DIP SWITCH setting for the SINGLE CLUSTER LV mode has an automatic function that assigns the single module ID in cascade.
It is mandatory to connect each module in Daisy Chain connection starting from the RS485B PORT of the master unit.
The DIP sequence for the LV single cluster must be on every module that composes the cluster.
PRESS RUN BUTTON
Only on the 1
st
Module
AUTO WAKE UP OF EACH SUB MODULE
AUTO WAKE UP OF EACH SUB MODULE
AUTO WAKE UP OF EACH SUB MODULE
