Dell EMC Unity Series Field Upgrade Procedure

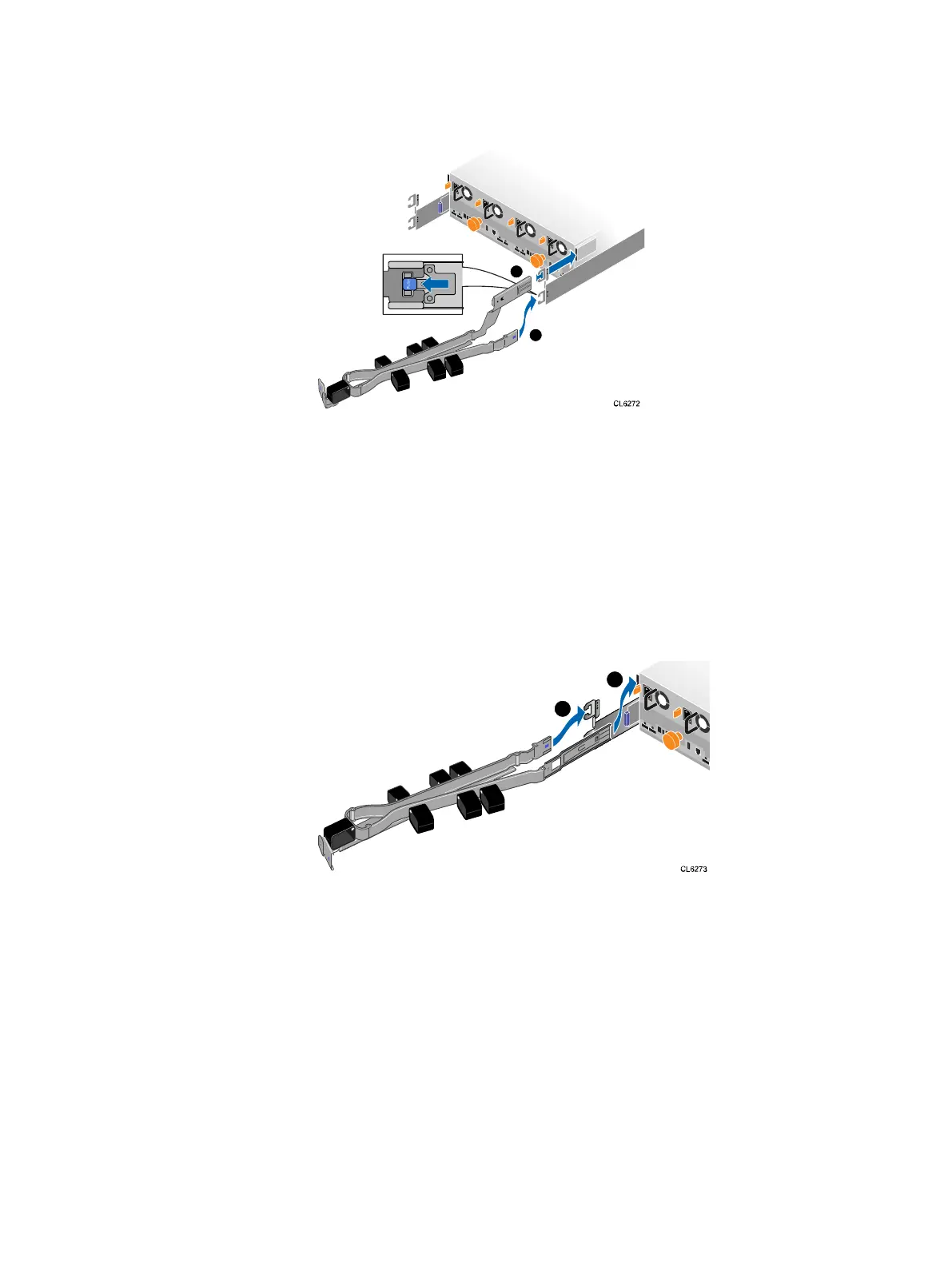

Figure 25 Installing an A-side cable management arm
2
1
2. Install the B-side cable management arm:
a. On the B-side, align the long straight retention latch end of the arm with the
enclosure bracket, and carefully insert it into the enclosure bracket until you
feel and hear an audible click.
b. Swing the extension arm into alignment with the upper rail bracket.
c. Press the short retention latch onto the upper rail bracket.
d. Make sure that you hear the audible click that indicates that the cable
management arm is in place.
Figure 26
Installing a B-side cable management arm
2
1
Closing the cable management arms
Perform this procedure to close the cable management arms.
Procedure
1. Close the A-side cable management arm:
a. Swing the A-side cable management arm to the left side of the enclosure,
and align the short retention latch with the lower rail bracket.
b. Press the short retention latch onto the lower rail bracket.
c. Make sure that you hear the audible click that indicates that the A-side cable
management arm is in place.
2. Close the B-side cable management arm:
Field Upgrade Procedure
28 Unity All Flash and Unity Hybrid Field Upgrade Procedure
