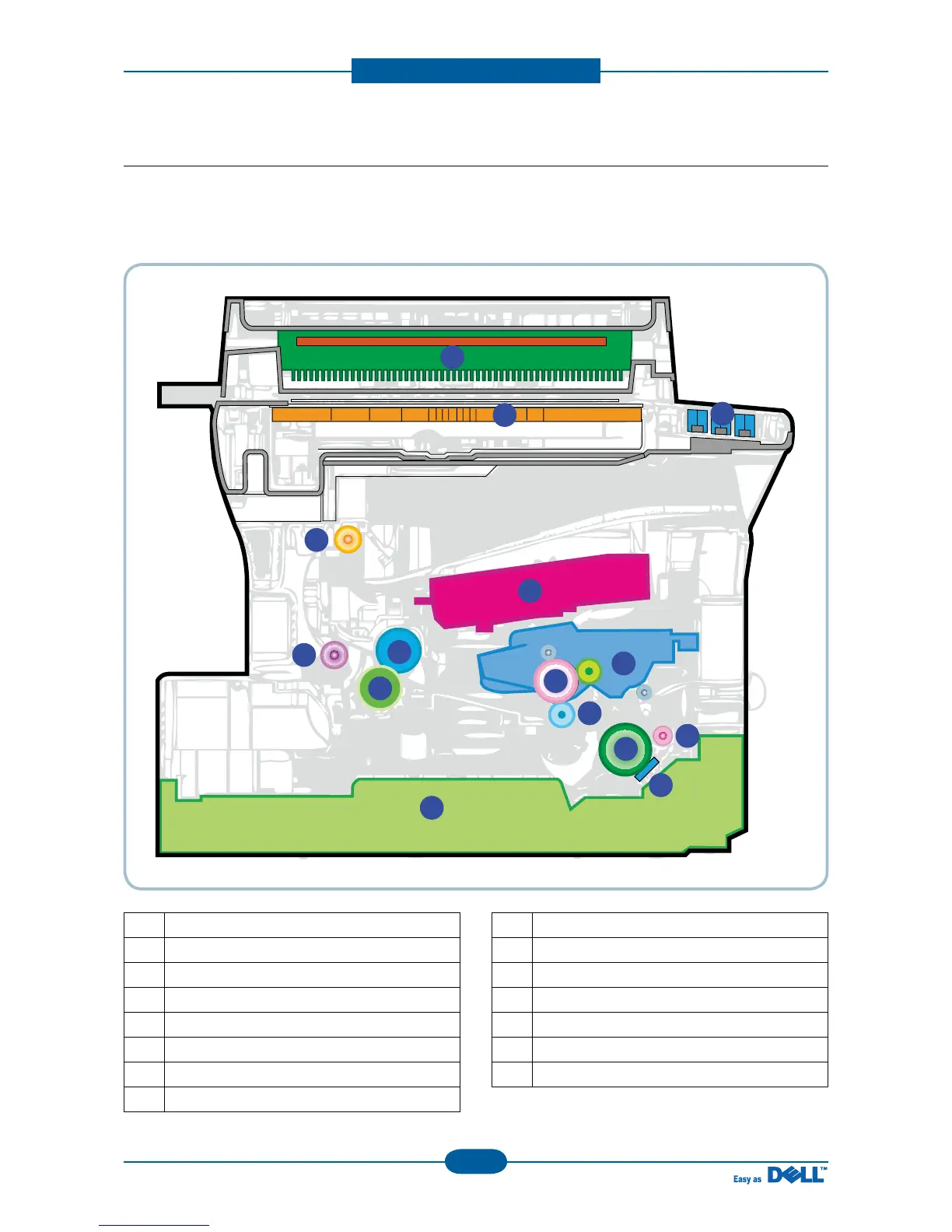

2.2.3 System Layout
This model is consisted of the Engine parts and F/W, and said engine parts is consisted of the mechanical
parts comprising Frame, Feeding, Developing, Driving, Transferring, Fusing, Cabinet and H/W comprising
the main control board, power board, operation panel, PC Interface.
1
2
15
14
12
11
4
3
5
7
6
10
8
9
13
1 Top out-bin delivery roller
2 Fusing roller
3 LSU
4 Toner Cartridge
5 OPE
6 ADF
7 Platen
8 Feed roller
9 Separation Pad
10 Pick up roller
11 Transfer roller
12 OPC
13 Cassette
14 Pressure roller
15 Fuser Exit roller
