Dell 1135N - SMPS;HVPS Board Replacement

Dis ssem ly d e ssem ly
3-2
Service Manual
3.13 SMPS/HVPS board
1. Take out the assette unit.
2. emove rear right cover (refer to 3.3.3 rear cover).

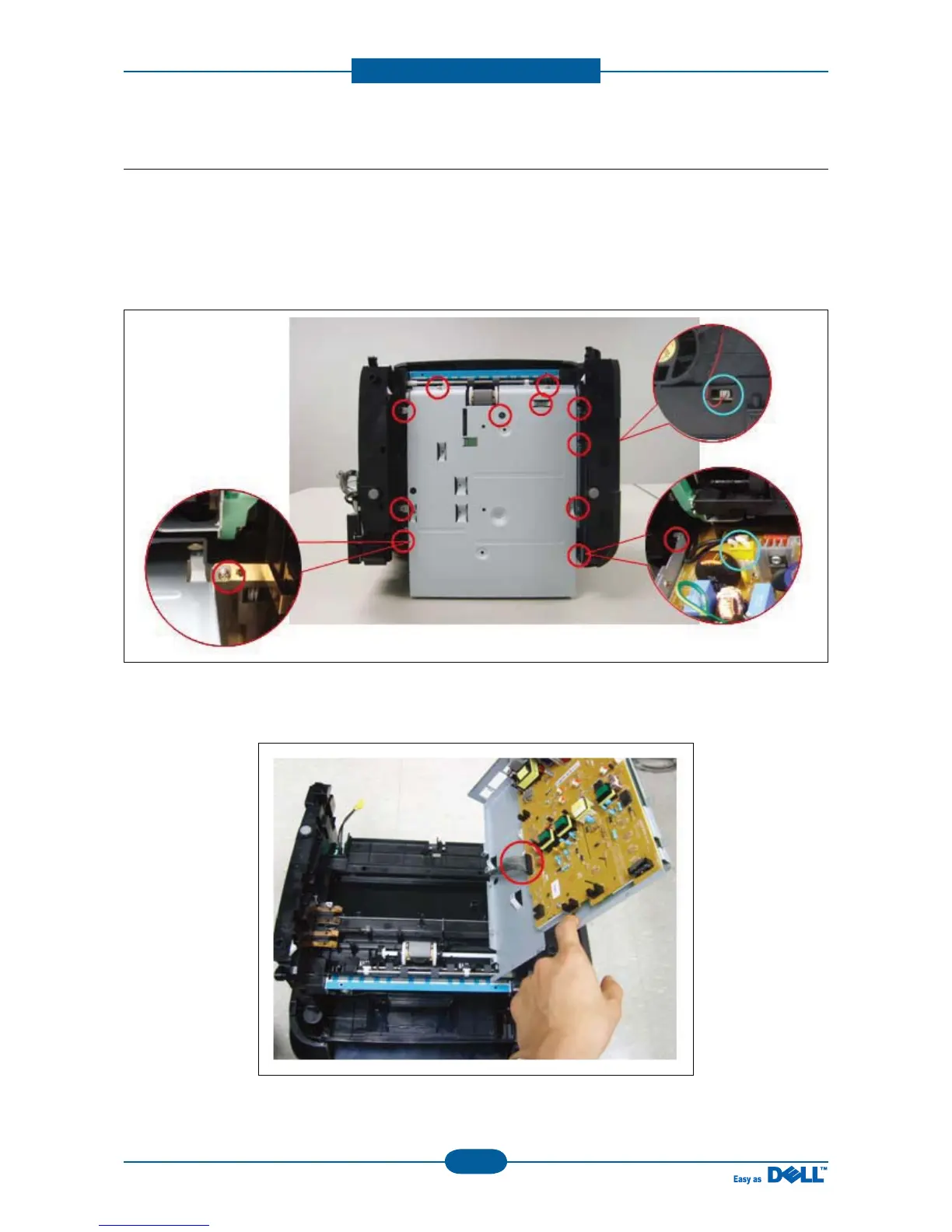

3. emove 11 screws (bottom x 9, rear x 2 ) and 2 connector (SMPS x 1, an x 1).
4. Turn the board shield over as shown below. Unplug the connector.
