Dis ssem ly d e ssem ly
3-29
Service Manual

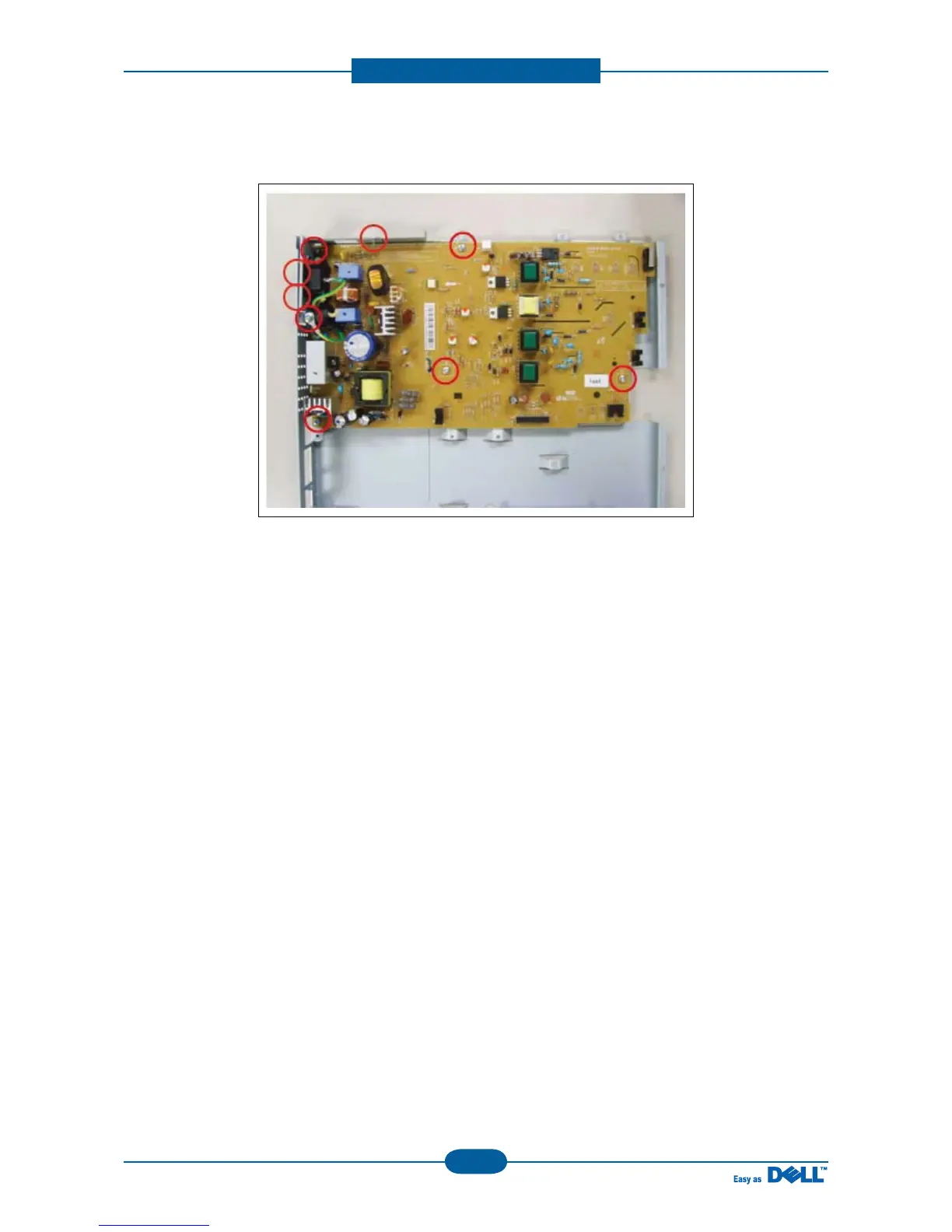

. Take off the SMPS H PS board after removing 9 screws and connector.
