Service Manual
2.2.6 S/W Descriptions
2.2.6.1 Overview
The software of Dell 1133 system is constructed as follows:
1) The Host Software is an application software that can operate in a Windows and/or Web Environment.
2) The Firmware portion is an Embedded software controlling the print job.
2.2.6.2 Architecture

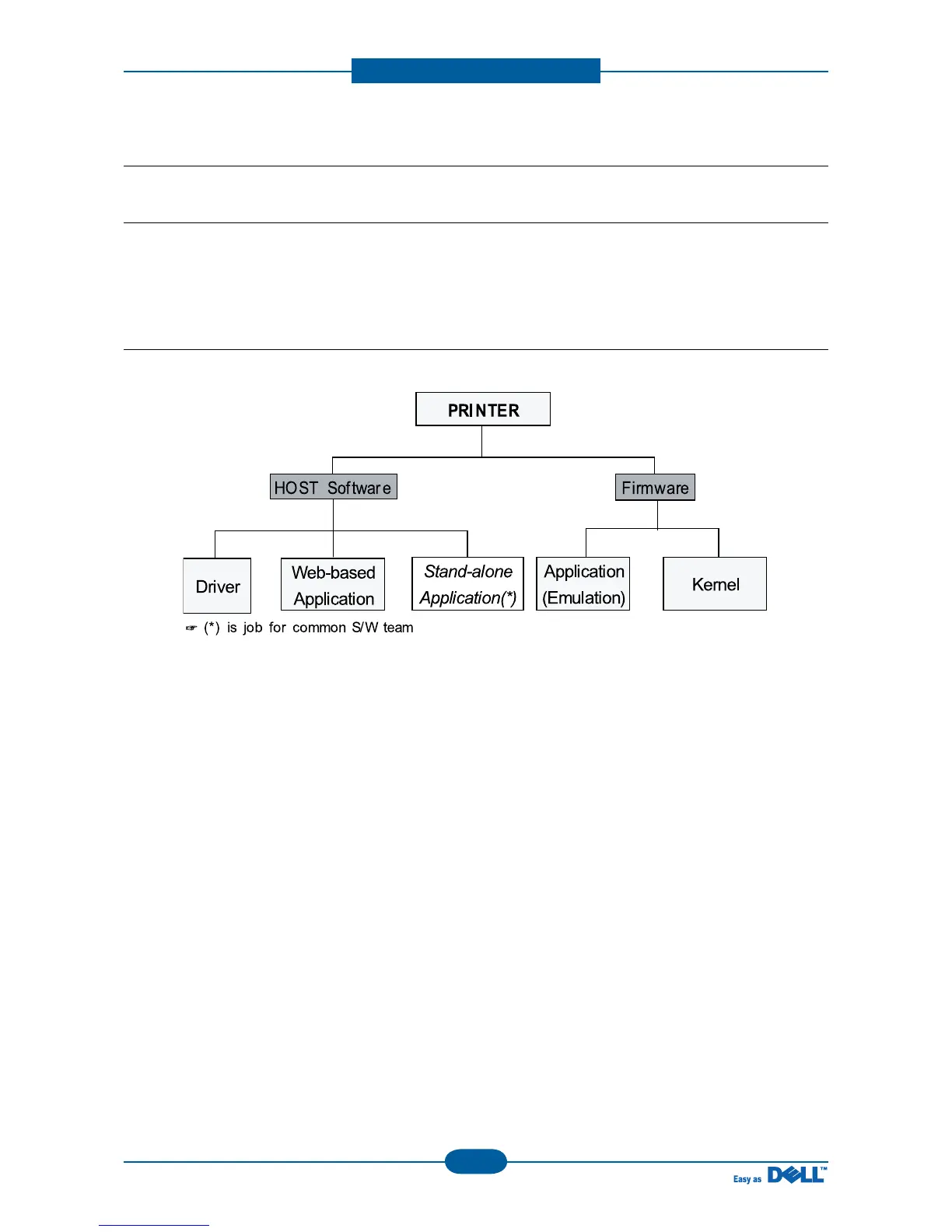

Host Software is made up of:
1. Graphic User Interface that offers the various editing functions to user in Host.
2. Driver that translates the received document to a Printing Command Language which the printer can
understand and transfers data to spooler.
3. Stand-alone Application that offers the various printing application, PSU(Printer Settings Utility), Printer
Status Monitor, Network Management in Window system.
4. Web-based-Application that offers the same functions as Stand-alone Application and RDC(Remote
Diagnosis Control) in Web environment.
Firmware is made up of:
1. Application (Emulation) that is a interpreter translate data received from Host to a printing language (PCL,
PS, GDI(Dell 1130n), etc.) to be able to allow the user to take same output as original composed in Host.
2. Kernel that control and management the whole procedure include of Control flow and Printing Job before
transfer to Engine system.

Dell 1135N Specifications

General

Dimensions (WxDxH)	416 x 415 x 319 mm
Energy saving mode	Yes
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	No
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Print resolution black	600 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	23 ppm
Printing colors	Black
Maximum duty cycle	12000 pages per month
Number of print cartridges	1
Copier resize	25 - 400 %
Maximum number of copies	99 copies
N-in-1 copy function (N=)	4
Time to first copy (black, normal)	12 s
Copy speed (black, normal quality, A4)	22 cpm
Grayscale levels	10
Maximum scan area	A4 / Letter (216 x 297) mm
Output color depth	16 bit
Image formats supported	BMP, JPEG XR, TIF
Optical scanning resolution	4800 x 4800 DPI
Faxing	Mono faxing
Fax memory	320 pages
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum input capacity	251 sheets
Maximum print size	210 x 297 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C5, C6
Maximum ISO A-series paper size	A4
Display	LED
Market positioning	Home & office
Direct printing	-
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	1 W
Power consumption (standby)	45 W
Power consumption (PowerSave)	10 W
Power consumption (average operating)	420 W
Package weight	14.8 g
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
