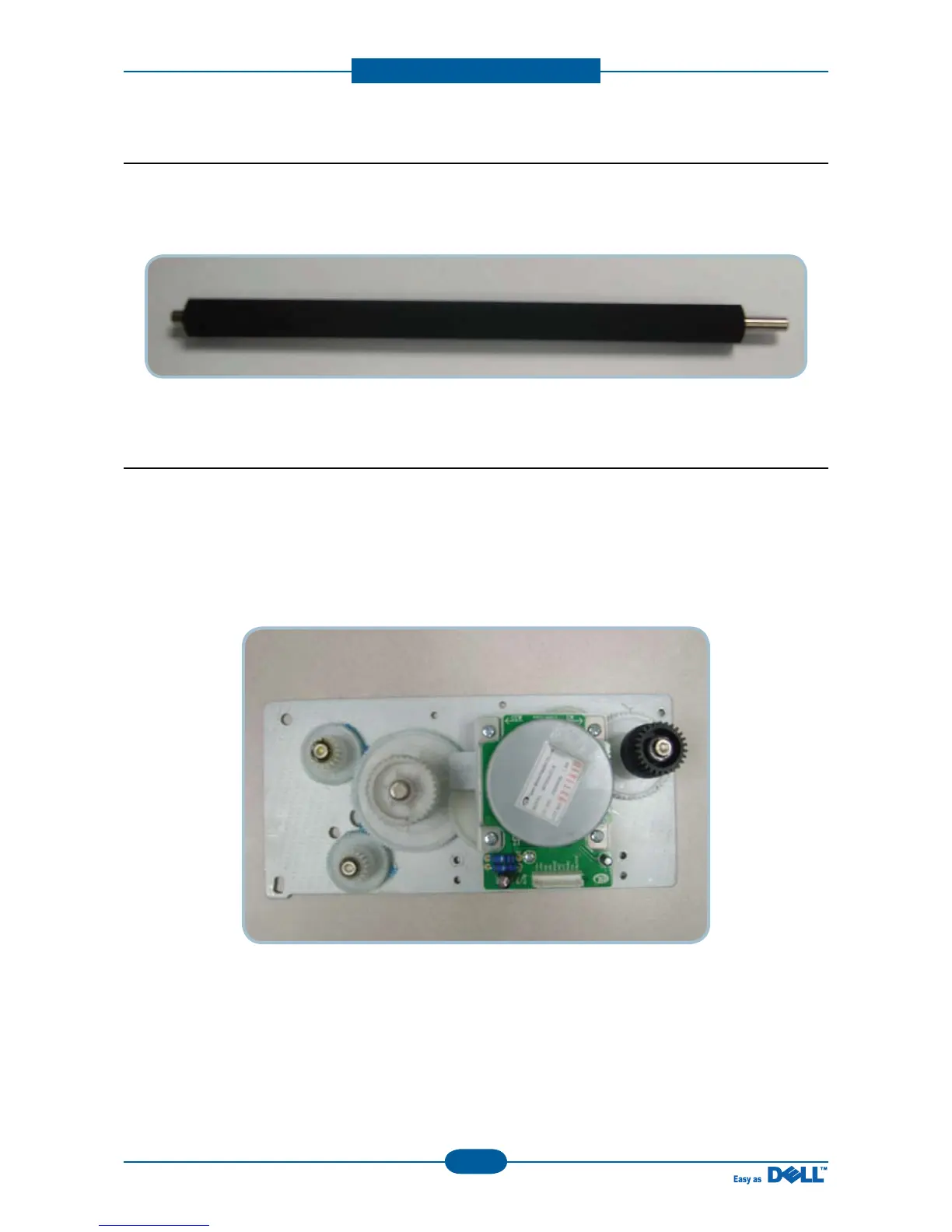

2.2.3.2 Transfer Roller
- The transfer roller delivers the toner from the OPC drum to the paper.
- There is no PTL Ass’y.
- Life Span : Print over 50,000 sheets (in15~30ଇ)
2.2.3.3 Driver Assy
- In Dell 1133/1135n, the driving device consisted of Φ55 BLDC motor, OPC, Pick- up, Feed,
gear block all mounted as an assembly.
• Driving Frequency: BLDCΦ55 Motor : 2200rpm(1650 Clock)
• It is a power delivery unit by gearing: BLDCΦ55 Motor - >Pickup/Feeder/Developer/Fuser/Duplex
