3.6.3.8. Guide InputG

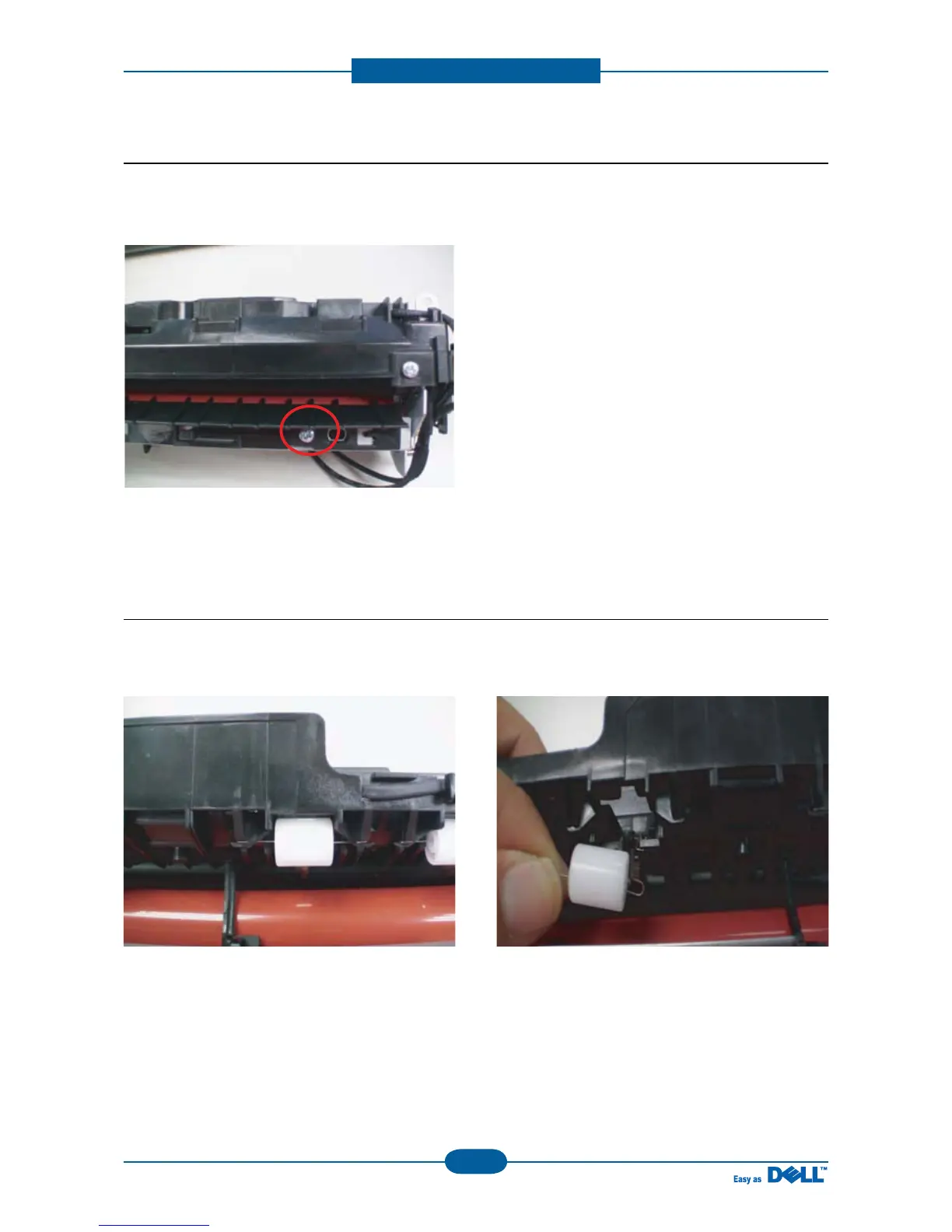

After loose the fixed one screw on Guide Input, Disassemble it.
1. Disassemble Spring-Etc user Exit.
aution :
Do not touch the roller surface of fuser inside
2. Disassemble Pmo- oller Exit.
3.6.3.9. Pmo Roller Exit / Spring Etc Fuser ExitG
