Installation 23
3 Attach the CAT 5 cabling that will run between your PEM and each server’s SIP to one of the
eight RJ45 connectors grouped on the back of the PEM.
4 Connect the other end of the CAT 5 cable to the first of the SIPs.
5 Repeat steps 3-4 for all servers you wish to attach.

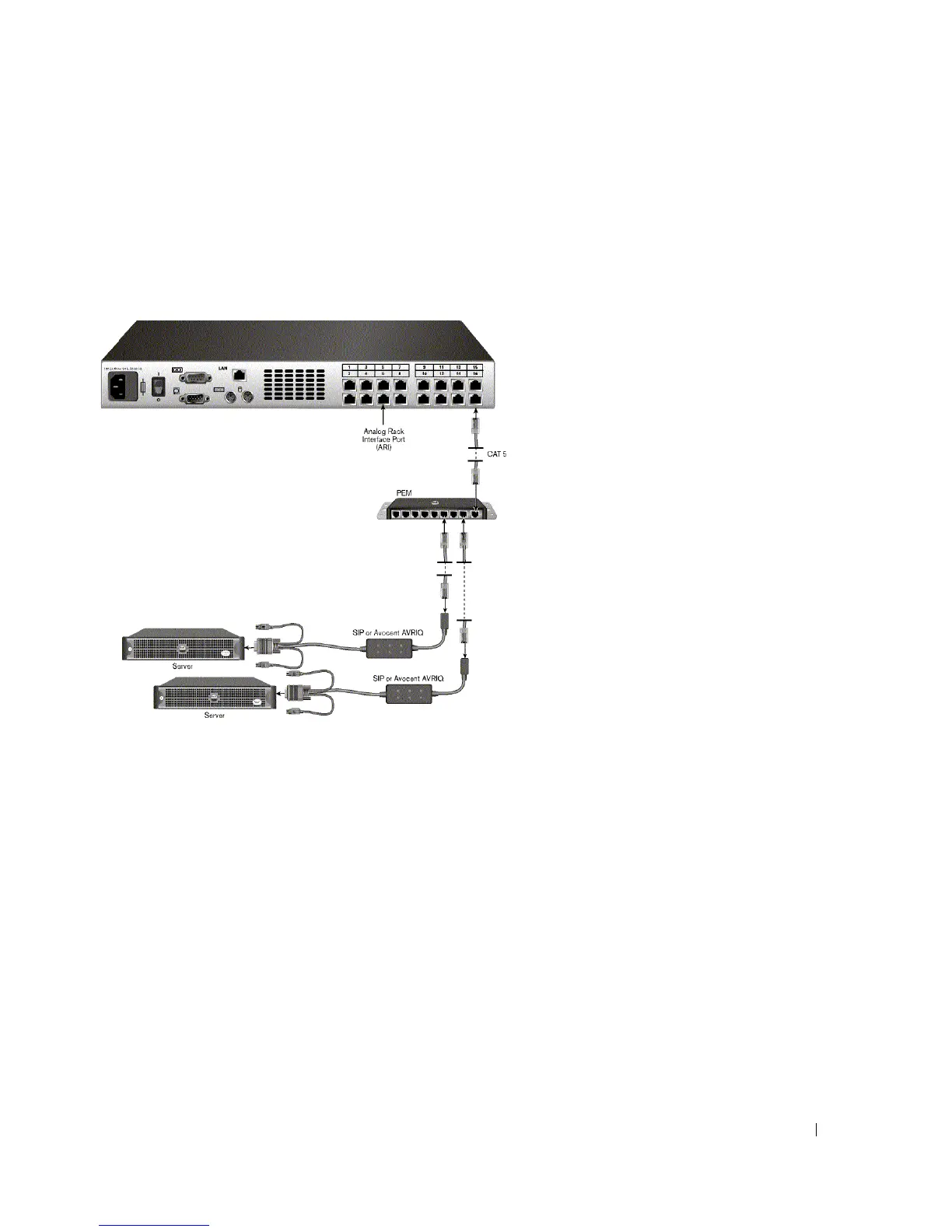

Figure 2-7. 2161DS Console Switch Configuration With a PEM
